PERROT C73 FEMALE PART x FIXED FLANGE PN10

PERROT C73 COUPLING FEMALE PART WITH FIXED FLANGE PN10 INPART24
MATERIAL: GALVANIZED STEEL | WORKING PRESSURE: 12 BAR

Product params

Material

galvanized steel

Flange

PN10

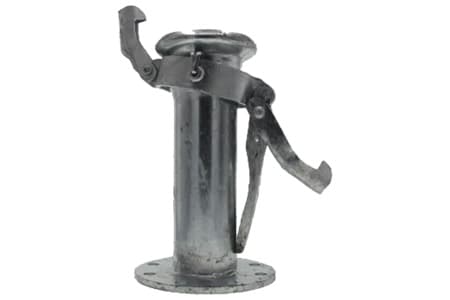

PERROT C73 coupling, female part with lever and sealing ring ended by the fixed flange PN 10.

Material: galvanized steel

Flange standard: fixed, PN 10 with 8 holes

Temperature range: -30°C do +80°C

Working pressure: 12 BAR

Size chart
Variant
Size
Material
Nr. of holes
Pitch circle
Outside flange
Seal material
Work Pressure - BAR [20°C]
PERROT C73 COUPLING FEMALE PART WITH FIXED FLANGE PN10 INPART24 Variant PC73108
VariantPC73108
Size108 mm x DN100
MaterialGalvanized steel
Nr. of holes8
Pitch circle180
Outside flange220
Seal materialSBR
Work Pressure - BAR [20°C]12
buyRow
buyRow

Availability

Trade unit

pcs

ID

115.996.1318

Price vat excluded

PERROT C73 COUPLING FEMALE PART WITH FIXED FLANGE PN10 INPART24 Variant PC73159
VariantPC73159
Size159 mm x DN150
MaterialGalvanized steel
Nr. of holes8
Pitch circle240
Outside flange285
Seal materialSBR
Work Pressure - BAR [20°C]12
buyRow
buyRow

Availability

Trade unit

pcs

ID

115.997.1319

Price vat excluded

PERROT C73 FEMALE PART x FIXED FLANGE PN10
