Perrot couplings

The PERROT coupling is one of the lever lock couplings. In Europe, it is very popular when it comes to flexible pipe connections. It debuted as a product for irrigation systems (that is what the German company for which it is named produced it), but over the years it has also found plenty of other uses. It is perfect for the transfer of wastewater, various liquids, and various bulk materials, among others.

In terms of the construction itself, PERROT couplings consist of two parts: a plug and a socket (male and female). The second is more complex, as it is the one with the retaining ring and the seal. But overall, the couplings are very functional — both in terms of construction and use. This is also one of the reasons why they have become so popular.

read...

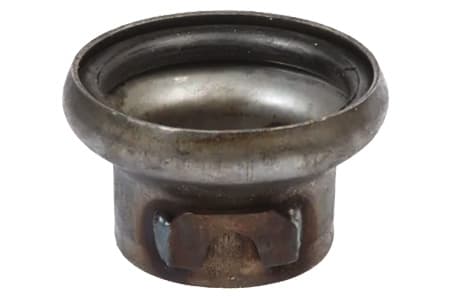

MALE PERROT COUPLING WITH SHORT BUTT WELD INPART24

PERROT C1 MALE PART x BUTT WELD (SHORT)

Material

steel black

Welding part

short cone

MATERIAL: STEEL BLACK | WORK PRESSURE: 12-15 BAR | WELDING CONE (SHORT)

Availabledropdown

from 10.52zł
vat excluded

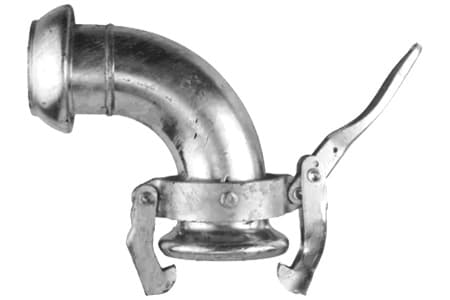

PERROT C11 BEND 90 DEGREES COUPLING ADAPTOR MALE X FEMALE WITH LEVER INPART24

PERROT C11 BEND 90 DEGREES MALE x FEMALE

Material

galvanized steel

O-Ring

SBR

MATERIAL: GALVANIZED STEEL | WORK PRESSURE: 12 BAR | SEALING RING: SBR

Availabledropdown

from 530.73zł
vat excluded

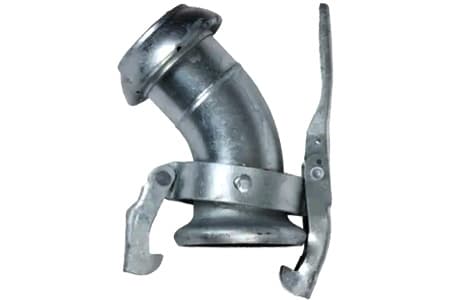

PERROT C12 COUPLING 45 DEGREES MALE FEMALE ADAPTOR INPART24

PERROT C12 BEND 45 DEGREES MALE x FEMALE

Material

Galvanized steel

O-ring

SBR

MATERIAL: GALVANIZED STEEL | WORK PRESSURE: 12 BAR | SEALING RING: SBR

Availabledropdown

from 519.67zł
vat excluded

article

Availabledropdown

from 519.67zł
vat excluded

PERROT C2 FEMALE LEVER BLACK STEEL INPART24

PERROT C2 FEMALE LEVER BLACK

Material

steel black

MATERIAL: STEEL BLACK | WORK PRESSURE: 12 BAR

Availabledropdown

from 174.24zł
vat excluded

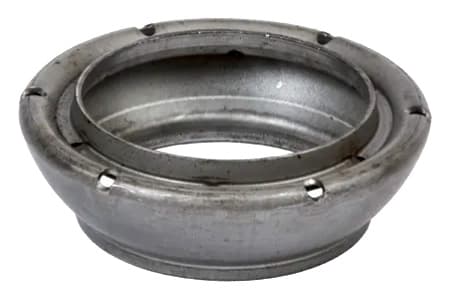

PERROT C3 COUPLING FEMALE PART WITH SHORT WELDING SOCKET INPART24

PERROT C3 WELDING SOCKET, FEMALE

Material

steel black

Sealing ring

SBR

MATERIAL: STEEL BLACK | WORK PRESSURE: 15 - 12 BAR | SEALING RING: SBR

Availabledropdown

from 42.09zł
vat excluded

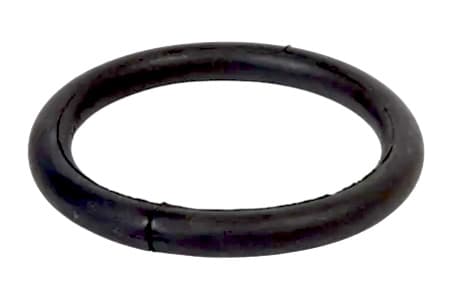

PERROT SEALING RING SBR C4 INPART24

PERROT C4 SEALING RING - SBR

Material

SBR

MATERIAL: SBR | TEMPERATURE RANGE: - 30°C to +80°C

Availabledropdown

from 3.82zł
vat excluded

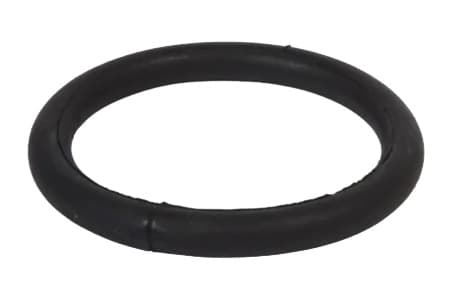

PERROT SEALING RING FROM NBR RUBBER C5 INPART24

PERROT C5 SEALING RING - NBR

Material

NBR

MATERIAL: NBR | TEMPERATURE RANGE: - 40°C to +100°C

Availabledropdown

from 33.18zł
vat excluded

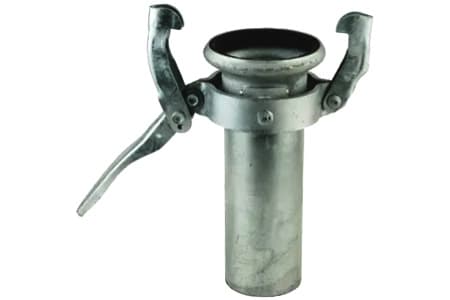

PERROT C7 COUPLING FEMALE PART WITH LONG TAIL FOR WELDING SEALING RING LEVER INPART24

PERROT C7 FEMALE (LONG) WELDING SOCKET WITH A SEALING RING AND LEVER

Material

galvanized steel

Sealing ring

SBR

MATERIAL: GALVANIZED STEEL | WORK PRESSURE: 15 - 12 BAR | SEALING RING: SBR

Availabledropdown

from 147.99zł
vat excluded

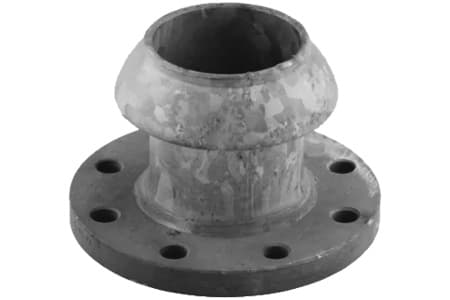

PERROT C70 COUPLING MALE PART WITH FIXED FLANGE PN 10 INPART24

PERROT C70 FLANGED CONNECTOR, MALE x FLANGE PN10

Material

galvanized steel

Flange

PN10

MATERIAL: GALVANIZED STEEL | WORKING PRESSURE: 12-15 BAR | FIXED FLANGE PN10

Availabledropdown

from 266.96zł
vat excluded

article

Availabledropdown

from 266.96zł
vat excluded

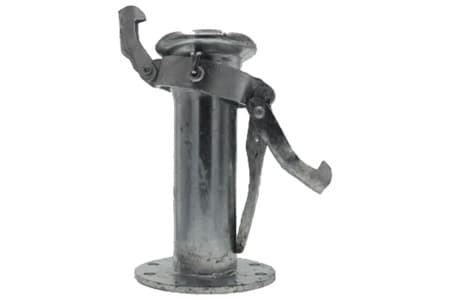

PERROT C73 COUPLING FEMALE PART WITH FIXED FLANGE PN10 INPART24

PERROT C73 FEMALE PART x FIXED FLANGE PN10

Material

galvanized steel

Flange

PN10

MATERIAL: GALVANIZED STEEL | WORKING PRESSURE: 12 BAR

Availabledropdown

from 487.45zł
vat excluded

Perrot couplings - Perrot fittings

How are PERROT couplings constructed?

PERROT couplings are made up of several components. These are:

  • safety ring with lever,
  • seal,
  • the socket, i.e. the female part (this is what has the lever and the seal),
  • the plug, i.e. the male part (much simpler to construct).

Apart from the seal, all components of the coupling are formed either from galvanised steel (the most popular option) or stainless steel. The second version increases the application possibilities, as it allows for working with media such as spirits, edible oils, beverages, chemicals or refinery products.

However, a suitable seal must be selected in each case.

As standard, i.e. when the PERROT coupling is made of galvanised steel, there is an SBR rubber seal.

What are the different types of PERROT couplings depending on the type of installation?

In addition, there are four types of male and female parts, depending on how they are fitted:

  • with hose end,
  • with a flange for screwing onto the installation,
  • with BSP thread,
  • with a stub for welding.

What are the key parameters of PERROT couplings?

As PERROT couplings are manufactured according to a single scheme, they all offer the same size range. They are determined by the approximate outer diameter of the tubes. You can choose from the couplings (in mm): 50, 70, 89, 108, 133, 159, 216.

Another important issue is the permissible working pressure. This is 10 bar for almost all products of this type. The only exception is the largest PERROT couplings (216 mm), where the permissible working pressure is 8 bar.

Finally, the working temperature range is also worth mentioning. This is determined by the seal (the steel coupling itself is more robust from this angle). For a standard product with an SBR rubber seal, the permissible temperature range is -30 to 80 degrees Celsius.

How to join PERROT couplings together?

You will be able to join the PERROT coupling in a very simple way, which is due to its uncomplicated design. The whole process comes down to three steps:

  1. Insert the male part into the female part (make sure the seal is in place first).
  2. Hook the clasp handles onto the male part.
  3. Press the lever.

That's it! As of now, the PERROT coupling is airtight.

However, take into account that at the very beginning you have to screw it on, weld it or connect it to the hose with a suitable clamp (depending on the type of end of the male/female part).

Why use the PERROT coupling?

PERROT couplings are worth using for several reasons. The first is the ease of use, going so far that you can easily connect the plug to the socket even with one hand. The joint will be sealed until you loosen the lever.

Furthermore, it is resistant to contamination. There is no fear that with the transmission of certain materials (e.g. sewage), dirt will lead to a loss of tightness.

Another advantage is due to the spherical structure that the PERROT coupling is characterised by. It allows the male and female parts to be joined at an angle (up to 15 degrees), increasing the range of applications and comfort of use.

It is worth noting, however, that angled joining does not apply to the largest product size (216 mm), as it is not possible in this case.

A final advantage that arises from all of the above is the multifunctionality of PERROT couplings. They are used in areas such as:

  • agriculture, construction of irrigation and sprinkler systems;
  • suction and transport of faecal matter on vacuum tankers;
  • construction and road works for temporary drainage systems;
  • food industry (stainless steel couplings);
  • chemical, pulp and paper and building materials industries;
  • mining (water and bulk materials).

FAQ

What is a PERROT coupling?

arrow-up

The PERROT coupling is a lever lock coupling with a spherical shape that allows for angled coupling. It is used for the transfer of water and other liquids, as well as bulk materials. It is distinguished by its high strength and resistance to contamination.

How to choose the size of the PERROT coupling?

arrow-up

The size of the PERROT coupling is most easily selected on the basis of the diameter of the tube to which it is adapted. This parameter is provided by the manufacturer in millimetres. You will find the following sizes in the offer: 50, 70 89, 108, 133, 159, 216.

Is the PERROT coupling suitable for transporting food?

arrow-up

Yes, the PERROT coupling is suitable for food transport — but only if it is made of stainless steel. In this case, it will also serve for the transport of other substances for which strict standards apply. Just remember to choose the right seal for the particular medium.
