Air compressor hoses

Air compressor hose is a hose that is used in the transfer of compressed air. It also serves as a connection in pneumatic systems (both supply and control) through which such air flows. Without it, the smooth functioning of the system would be either impossible or simply unsafe.

The pneumatic hoses available in our range are ideal for a wide range of jobs, including paint, car, or vulcanization workshops, but also in manufacturing or carpentry. You will only find products from reliable manufacturers that are of high quality. Each one will make your work with compressed air tools much easier.

read...

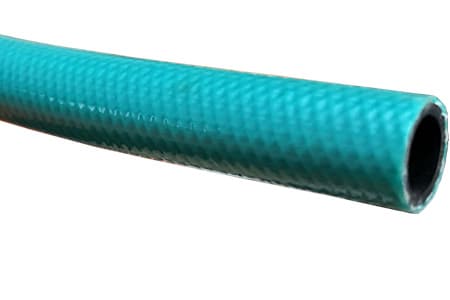

PVC AIR COMPRESSOR HOSE ARIA 40 BAR INPART24

ARIA 40 PVC HOSE

Working Pressure [bar]

40

Burst Pressure [bar]

120

Inner Wall

PVC

Conductivity

No

Pressure Hose | Reinforcement: Polyester reinforcement | Inner Wall: PVC | Outer Wall: PVC | Working Pressure: 40 BAR | Temperature Range: -10°C to +60°C

Available

from 10.27zł
vat excluded

ULTRA LIGHT COMPRESSOR HOSE TPE YELLOW FOR HOSE REELS STABIL AIR TPE HOSE INPART24

STABIL AIR TPE HOSE

Working Pressure [bar]

25-30

Burst Pressure [bar]

75-90

Inner Wall

TPU

Conductivity

No

Discharge Hose | Reinforcements: Polyester, Nylon | Inner Wall: TPU | Outer Wall: Polyester | Working Pressure: 25-30 BAR | Temperature Range: -30°C to +70°C

Available

from 25.27zł
vat excluded

POLYURETHANE AIR COMPRESSOR WATER HOSE HPC BLUE PU INPART24

HPC BLUE PU HOSE

Working Pressure [bar]

20

Burst Pressure [bar]

60

Inner Wall

PU

Conductivity

No

Discharge Hose | Reinforcement: Strong textile reinforcement | Inner Wall: PU (Polyurethane) | Outer Wall: PU (Polyurethane) | Working Pressure: 20 BAR | Temperature Range: -20°C to +60°C

Available

from 11.72zł
vat excluded

UNIVERSAL TRANSPARENT PVC HOSE FOR COMPRESSOR WATER CRISTAL RD FOOD INPART24

CRISTAL RD FOOD PVC HOSE

Working Pressure [bar]

10

Burst Pressure [bar]

Inner Wall

EPDM

Conductivity

No

Discharge Hose | Reinforcement: Strong textile reinforcement | Inner Wall: PVC | Outer Wall: PVC | Working Pressure: 4-20 BAR | Temperature Range: -20°C to +60°C

Available

from 4.64zł
vat excluded

Ragno PU FOOD hose for air pressure Inpart24

RAGNO POLIURETANO (PU) FOOD HOSE

Working Pressure [bar]

20

Inner Wall

PU

Conductivity

No

Food

Yes

Discharge Hose | Reinforcement: Strong textile reinforcement | Inner Wall: PU (Polyurethane) | Outer Wall: PU (Polyurethane) | Working Pressure: 20 BAR | Temperature Range: -15°C to +60°C

Available

from 27.60zł
vat excluded

Air compressor hoses - Pneumatic tubing

What should you look for when choosing an air compressor hose?

Before you choose an air compressor hose for your needs, pay attention to the following points:

  • Hose diameter - Select it according to the flow rate. A general rule of thumb is that larger diameters are used for stronger flow rates.
  • Working pressure - Determines the maximum allowable working pressure that a particular air compressor hose has. When selecting a hose, take into account that it may be different in different parts of the system (e.g. the pressure will be higher on the “supply”).
  • Environmental conditions - Here, pay particular attention to the resistance of the hose to high temperatures or aggressive substances (if present in the area).
  • System design - The location of the pneumatic components and the distance of the connections also influence the choice of hose (particularly its length or flexibility).
  • Type of fittings - Installations sometimes differ in the fittings used. Therefore, a compressed air hose will look slightly different for a push-on, twist-on, and push-off fitting.

Finally, it is worth mentioning that, in addition to the standard version, you also have the choice of a retractable compressed air hose, which makes your work much more convenient. It is distinguished by the fact that it has a special reel for ergonomic storage.

This type of air compressor hose on a reel is available in either manual (with crank) or automatic (with special reel mechanism) versions.

From which materials are air compressor hoses made?

The most popular materials for air compressor hoses are:

  • PU (polyurethane) - versatile and frequently used, as it is distinguished by its very good elasticity and mechanical and chemical resistance; it is slightly less so in terms of its operating temperature range;
  • PE (polyethylene) - a popular and inexpensive material that is resistant to chemicals, and soft, but less mechanically strong and stiffer, and tolerates low temperatures better;
  • NBR rubber - another versatile and low-cost material that is very flexible, mechanically/chemically resistant. Rubber hoses can withstand a very wide temperature range;
  • Teflon PTFE - a specialized material with very good parameters in terms of flexibility and mechanical/chemical strength, the PTFE pneumatic spiral hose can also cope with extremely low/high temperatures;
  • PVC (polyvinyl chloride) - PVC hoses are cheap, flexible and mechanically resistant, and can also cope with many chemicals, but they do not tolerate high temperatures well.

Of course, these are not all the materials from which an air hose for a compressor is made, but you will encounter the most common ones listed above.

Air compressor hoses are made from several types of material, which have a high resistance to high pressure and a wide range of temperatures. Their flexibility is also important, as it reduces the risk of the hose rupturing or breaking.

FAQ

Which hose for an air blow gun?

arrow-up

When you are choosing a hose for your air blow gun, first and foremost pay attention to the working pressure. If your machine is very powerful, go for a sturdier hose, preferably also with a larger diameter. Also pay attention to the type of fittings you need.

What kind of hose for the compressor?

arrow-up

Select the hose for the compressor in terms of the working pressure and the temperature at which it will operate. Also consider its diameter. A general rule of thumb is that the higher the pressure, the wider the hose should be. So, for example, a 10 mm air hose will work better on weaker compressors, while a 12 mm air hose will work better on stronger compressors.

How long is an air compressor hose?

arrow-up

Choose the length that your compressor hoses are based on your needs. If a long reach is essential for you, choose a longer hose. You will find a vast range on the market in that regard. You can easily buy a 20 m or even 30 m compressor hose.
