Dairy fittings

Dairy fittings are fittings that are used for working with food in the dairy industry to comply with the standards. Therefore, in this category, you will find both DIN 11851 fittings (one of the most popular dairy fittings) and SMS or Tri clamp fittings. Each of these provides high sterility, so they will be perfect when it comes to transporting dairy products.

Dairy fittings are manufactured from stainless steel, making them resistant to high temperatures. This allows the installation to be sterilised without problems. An equally important feature is their smooth surface without rough parts, which makes cleaning much easier. It also prevents unnecessary retention of the medium, which could lead to food contamination over time.

read...

HYGIENIC COUPLING DIN 11851 MALE PART WITH SERRATED HOSE TAIL ENDED BY MALE THREAD SS 316 INPART24

HYGIENIC COUPLING DIN 11851 MALE WITH HOSETAIL - SS 316

STANDARD DIN 11851 | HOSE TAIL FOR SAFETY CLAMPS & CRIMPING ASSEMBLY | MALE THREAD RD | SS 316

Available

from 126.37zł
vat excluded

NUT DIN 11851 HYGIENIC COUPLING STAINLESS STEEL 304 ISO INCH INPART24

DIN 11851 NUT - SS 304

Material

AISI 304

STANDARD DIN 11851 - DIN 11864 (DIN/ISO/INCH) | FOR FEMALE PART | INNER THREAD RD | SS 304 |

Available

from 39.11zł
vat excluded

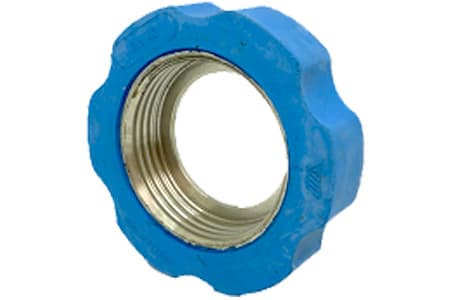

DIN 11851 NUT WITH RUBBER PROTECTION SS 304 INPART24

DIN 11851 NUT WITH RUBBER PROTECTION - SS 304

Material

AISI 304

STANDARD DIN 11851 | WITH RUBBER PROTECTION | INNER THREAD RD | SS 304 |

Available

from 558.22zł
vat excluded

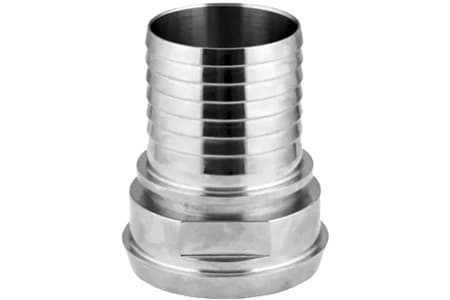

HYGIENIC COUPLING DIN 11851 FEMALE WITH HOSE TAIL WITH CONE FOR NUT SS 316 INPART24

HYGIENIC COUPLING DIN 11851 FEMALE WITH HOSETAIL - SS 316

STANDARD DIN 11851 | HOSE TAIL FOR SAFETY CLAMPS & CRIMPING ASSEMBLY | FEMALE PART ENDED BY CONE FOR NUT DIN | SS 316

Available

from 44.35zł
vat excluded

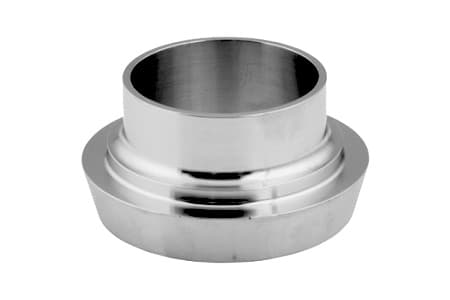

DIN WELDING CONE FEMALE PART DIN 11851 INPART24

DIN WELDING CONE FEMALE DIN 11851 - SS 316

Material

AISI 316

STANDARD DIN 11851 | DIN WELDING CONE | FEMALE PART FOR NUT DIN | SS 316

Available

from 23.07zł
vat excluded

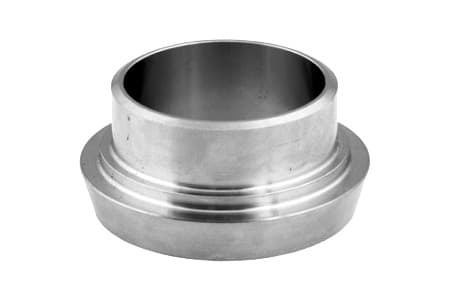

ISO WELDING CONE FEMALE PART DIN 11851 SS 316 INPART24

ISO WELDING CONE FEMALE DIN 11851 - SS 316

Material

AISI 316

STANDARD DIN 11851 | ISO WELDING CONE | FEMALE PART FOR NUT DIN | SS 316

Available

from 29.14zł
vat excluded

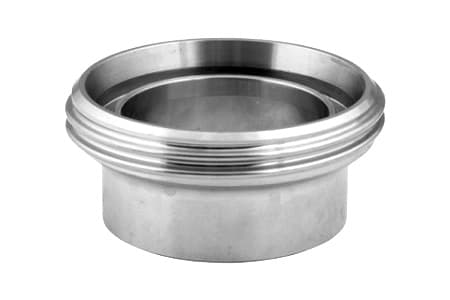

ISO WELDING MALE COUPLING WITH MALE THREAD RD SS 316 INPART24

ISO WELDING MALE COUPLING MALE THREAD DIN 11851 - SS 316

Material

AISI 316

STANDARD DIN 11851 | ISO WELDING | MALE PART WITH MALE THREAD RD | SS 316

Available

from 37.46zł
vat excluded

DIN WELDING MALE COUPLING WITH MALE THREAD RD SS 316 DIN 11851 INPART24

DIN WELDING MALE COUPLING WITH MALE THREAD DIN 11851 - SS 316

Material

AISI 316

STANDARD DIN 11851 | DIN WELDING | MALE PART WITH MALE THREAD RD | SS 316

Available

from 37.46zł
vat excluded

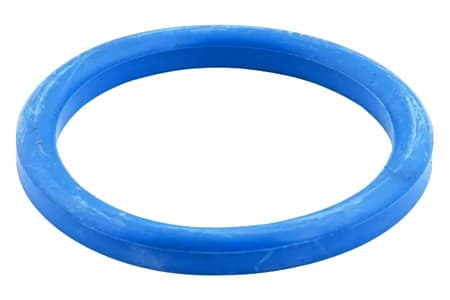

NBR SEALING RING FOR DIN 11851 HYGIENIC COUPLING BLUE COLOR INPART24

NBR SEALING RING FOR DIN 11851 - BLUE

Gasket material

NBR

STANDARD DIN 11851 | MATERIAL: NBR RUBBER | COMPATIBLE WITH DIN/ISO/INCH | BLUE

Available

from 1.04zł
vat excluded

Dairy fittings - Dairy couplings

What are the different types of dairy fittings?

Below, we listed particular types of diary fittings:

  • DIN 11851 Dairy fitting
  • SMS Dairy fitting
  • Tri clamp dairy fitting

DIN 11851 Dairy fitting

DIN 11851 couplings take their name from the standard according to which they are manufactured. They are very popular not only in the dairy industry but also in other branches of the food grade industry.

In addition, they are used in the chemical sector. The latter is usually made of EPDM, NBR, silicone, or Viton rubber.

In terms of dimensions, DIN 11851 couplings are available in diameters from DN10 to DN150. The maximum operating pressure depends on the size and is:

  • 40 bar (for diameters DN10-DN40);
  • 25 bar (for diameters DN50-DN100);
  • 16 bar (for diameters DN125-DN150).

Dairy fitting SMS

The dairy coupling SMS is produced according to the Swedish standard and is used primarily in the dairy and food industry. However, it also works well in the cosmetic and chemical industries.

It consists of four components: a nut, a seal, a male part, and a female part. As it has a flat sealing surface, its assembly and disassembly is very simple.

The SMS coupling is available in sizes from DN25 to DN100. However, the maximum working pressure is 15 bar.

Tri clamp dairy fitting

The Tri clamp dairy coupling is a symmetrical-flanged coupling. As it guarantees unimpeded flow and high hygiene, it is widely used not only in the food industry, but also in the pharmaceutical, biotechnology, cosmetics, chemical, and many other sectors.

The Tri clamp coupling looks original because it consists of two flanges and a seal between them. All this is held together by a special clamp.

Because of this design, two parameters are important when selecting a product: the outer diameter of the flange and the inner diameter of the outlet. As for the working pressure, it depends on the size and the clamp used. However, as a general rule of thumb, we assume that:

  • for couplings under 2 inches, the working pressure is 16 bar;
  • for couplings over 2 inches, the working pressure is 10 bar.

How is the dairy fitting assembled?

The assembly of the dairy coupling depends on its version. You can buy each of the products described above in several versions. Among the most popular are:

  • couplings with a hose stub,
  • weld-on couplings.

The first you insert into the hose ends and install using collets or hose clamps. This is a relatively simple operation that you can handle without any problems. Just be careful that a so-called "pocket" does not form between the hose wall and the coupling.

As far as weld-on couplings are concerned, with the right welding technique you will achieve a weld quality that meets the necessary hygienic standards. It must not contain any cracks or places where the medium could settle.

In other words, the joint should be made in such a way that it does not have to be disassembled for cleaning and sterilisation.

For dairy couplings, also choose the best milk hoses from our range. In this way, you will ensure hygienic transport of food substances.

FAQ

What are dairy fittings?

arrow-up

Dairy fittings are couplings that meet the standards for working with food. Therefore, they are characterised by a high level of hygiene and do not affect the quality of the transmitted medium. Despite their name, they are used not only in the food industry, but also in the pharmaceutical, chemical, cosmetic and other industries.

How much do dairy fittings cost?

arrow-up

There is no single answer to this question, as the price of dairy couplings depends on their type and size. Therefore, depending on the customer's needs, the cost of the product can vary significantly.

Which is bigger: a DN50 dairy coupling or a 2-inch dairy coupling?

arrow-up

The DN50 dairy coupling is the same size as the 2-inch coupling.
