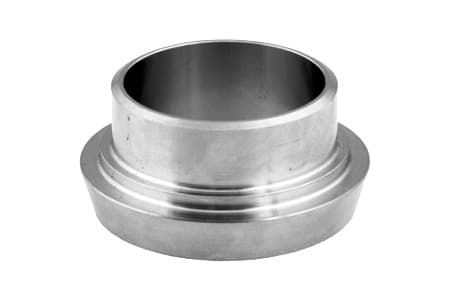

ISO WELDING CONE FEMALE DIN 11851 - SS 316

ISO WELDING CONE FEMALE PART DIN 11851 SS 316 INPART24
STANDARD DIN 11851 | ISO WELDING CONE | FEMALE PART FOR NUT DIN | SS 316

Product params

Material

AISI 316

Hygienic coupling DIN 11851, female part for welding (welding end ISO size) with cone for nut. This kind of couplings is very popular for food grade, breweries and petrochemical sector. Especially known as the milky couplings due to their popularity in dairy factories.

Size chart

id

Variant

Weight [g]

Work Pressure - BAR [20°C]

Ext. cone size

Material

Coupling size

Welding size [mm]

Variant
Weight [g]
Work Pressure - BAR [20°C]
Ext. cone size
Material
Coupling size
Welding size [mm]
Availability
VariantDINWF010I
Weight [g]10
Work Pressure - BAR [20°C]40
Ext. cone size22 mm
MaterialSS 316
Coupling sizeDN 10
Welding size [mm]14,2 x 17,2
Availability
🔍
VariantDINWF010I
Weight [g]30
Work Pressure - BAR [20°C]40
Ext. cone size28,5 mm
MaterialSS 316
Coupling sizeDN 15
Welding size [mm]18,1 x 21,3
Availability
🔍
VariantDINWF020I
Weight [g]40
Work Pressure - BAR [20°C]40
Ext. cone size36 mm
MaterialSS 316
Coupling sizeDN 20
Welding size [mm]23,7 x 26,9
Availability
🔍
VariantDINWF025I
Weight [g]70
Work Pressure - BAR [20°C]40
Ext. cone size44 mm
MaterialSS 316
Coupling sizeDN 25
Welding size [mm]29,7 x 33,7
Availability
🔍
VariantDINWF032I
Weight [g]110
Work Pressure - BAR [20°C]40
Ext. cone size50 mm
MaterialSS 316
Coupling sizeDN 32
Welding size [mm]38,4 x 42,4
Availability
🔍
VariantDINWF040I
Weight [g]130
Work Pressure - BAR [20°C]40
Ext. cone size56 mm
MaterialSS 316
Coupling sizeDN 40
Welding size [mm]44,3 x 48,3
Availability
🔍
VariantDINWF050I
Weight [g]190
Work Pressure - BAR [20°C]40
Ext. cone size68,50 mm
MaterialSS 316
Coupling sizeDN 50
Welding size [mm]56,3 x 60,3
Availability
🔍
VariantDINWF065I
Weight [g]290
Work Pressure - BAR [20°C]25
Ext. cone size86 mm
MaterialSS 316
Coupling sizeDN 65
Welding size [mm]72,1 x 76,1
Availability
🔍
VariantDINWF080I
Weight [g]360
Work Pressure - BAR [20°C]25
Ext. cone size100 mm
MaterialSS 316
Coupling sizeDN 80
Welding size [mm]84,9 x 88,9
Availability
🔍
VariantDINWF100I
Weight [g]670
Work Pressure - BAR [20°C]25
Ext. cone size121 mm
MaterialSS 316
Coupling sizeDN 100
Welding size [mm]110,3 x 114,3
Availability
🔍
VariantDINWF125I
Weight [g]760
Work Pressure - BAR [20°C]25
Ext. cone size150 mm
MaterialSS 316
Coupling sizeDN 125
Welding size [mm]134,5 x 139,7
Availability
🔍
VariantDINWF150I
Weight [g]1030
Work Pressure - BAR [20°C]25
Ext. cone size176 mm
MaterialSS 316
Coupling sizeDN 150
Welding size [mm]163,1 x 168,3
Availability
🔍

ISO WELDING CONE FEMALE DIN 11851 - SS 316

from 29.14zł
vat excluded

stock
Availabledropdown
intereurope shipping

Shipping all over Europe

free delivery

Free shipping from 4000 PLN

high quality

Top quality product

sku

SKU: 162
