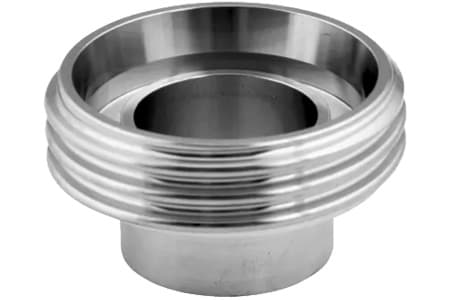

DIN WELDING MALE COUPLING WITH MALE THREAD DIN 11851 - SS 316
STANDARD DIN 11851 | DIN WELDING | MALE PART WITH MALE THREAD RD | SS 316
Product params
Material
AISI 316
Hygienic coupling DIN 11851, male part for welding (welding end DIN size) with male thread RD. This coupling is very popular for food grade, breweries, and the petrochemical sector. Especially known as the dairy couplings due to their popularity in dairy factories.
WARNING: the gasket is not included, it's necessary to buy them separately.
Size chart
Variant
Weight [g]
Work Pressure - BAR [20°C]
Thread connection
Material
Coupling size
Welding size [mm]
Variant
Weight [g]
Work Pressure - BAR [20°C]
Thread connection
Material
Coupling size
Welding size [mm]
Availability
VariantDINWM010
Weight [g]40
Work Pressure - BAR [20°C]40
Thread connectionRD 28 x 1/8"
MaterialSS 316
Coupling sizeDN 10
Welding size [mm]10 x 13
Availability
🔍
VariantDINWM015
Weight [g]60
Work Pressure - BAR [20°C]40
Thread connectionRD 28 x 1/8"
MaterialSS 316
Coupling sizeDN 15
Welding size [mm]16 x 19 mm
Availability
🔍
VariantDINWM020
Weight [g]110
Work Pressure - BAR [20°C]40
Thread connectionRD 44 x 1/6"
MaterialSS 316
Coupling sizeDN 20
Welding size [mm]20 x 23
Availability
🔍
VariantDINWM025
Weight [g]140
Work Pressure - BAR [20°C]40
Thread connectionRD 52 x 1/6"
MaterialSS 316
Coupling sizeDN 25
Welding size [mm]26 x 29
Availability
🔍
VariantDINWM032
Weight [g]150
Work Pressure - BAR [20°C]40
Thread connectionRD 58 x 1/6"
MaterialSS 316
Coupling sizeDN 32
Welding size [mm]32 x 34
Availability
🔍
VariantDINWM040
Weight [g]190
Work Pressure - BAR [20°C]40
Thread connectionRD 65 x 1/6"
MaterialSS 316
Coupling sizeDN 40
Welding size [mm]38 x 41
Availability
🔍
VariantDINWM050
Weight [g]250
Work Pressure - BAR [20°C]40
Thread connectionRD 78 x 1/6"
MaterialSS 316
Coupling sizeDN 50
Welding size [mm]50 x 53
Availability
🔍
VariantDINWM065
Weight [g]370
Work Pressure - BAR [20°C]24
Thread connectionRD 98 x 1/6"
MaterialSS 316
Coupling sizeDN 65
Welding size [mm]66 x 70
Availability
🔍
VariantDINWM080
Weight [g]580
Work Pressure - BAR [20°C]24
Thread connectionRD 110 x 1/4"
MaterialSS 316
Coupling sizeDN 80
Welding size [mm]81 x 85
Availability
🔍
VariantDINWM100
Weight [g]710
Work Pressure - BAR [20°C]24
Thread connectionRD 130 x 1/4"
MaterialSS 316
Coupling sizeDN 100
Welding size [mm]100 x 104
Availability
🔍
