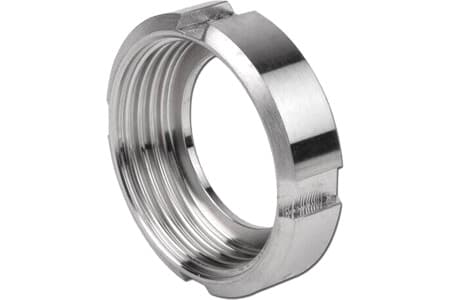

DIN 11851 NUT - SS 304
STANDARD DIN 11851 - DIN 11864 (DIN/ISO/INCH) | FOR FEMALE PART | INNER THREAD RD | SS 304 |
Product params
Material
AISI 304
Nut DIN 11851 - DIN 11864 (DIN/ISO/INCH), with female thread RD. This kind of couplings is very popular for food grade, breweries and petrochemical sector. Especially known as the milky couplings due to their popularity in dairy factories.
WARNING: the gasket is not included, it's necessary to buy them separately.
Size chart
id
Variant
Weight [g]
Work Pressure - BAR [20°C]
Thread connection
Material
Coupling size
Variant
Weight [g]
Work Pressure - BAR [20°C]
Thread connection
Material
Coupling size
Availability
VariantDINN010
Weight [g]70
Work Pressure - BAR [20°C]40
Thread connectionRD 28 x 1/8"
MaterialSS 304
Coupling sizeDN 10
Availability
🔍
VariantDINN015
Weight [g]60
Work Pressure - BAR [20°C]40
Thread connectionRD 34 x 1/8"
MaterialSS 304
Coupling sizeDN 15
Availability
🔍
VariantDINN020
Weight [g]80
Work Pressure - BAR [20°C]40
Thread connectionRD 44 x 1/6"
MaterialSS 304
Coupling sizeDN 20
Availability
🔍
VariantDINN025
Weight [g]110
Work Pressure - BAR [20°C]40
Thread connectionRD 52 x 1/6"
MaterialSS 304
Coupling sizeDN 25
Availability
🔍
VariantDINN032
Weight [g]160
Work Pressure - BAR [20°C]40
Thread connectionRD 58 x 1/6"
MaterialSS 304
Coupling sizeDN 32
Availability
🔍
VariantDINN040
Weight [g]190
Work Pressure - BAR [20°C]40
Thread connectionRD 65 x 1/6"
MaterialSS 304
Coupling sizeDN 40
Availability
🔍
VariantDINN050
Weight [g]
Work Pressure - BAR [20°C]40
Thread connectionRD 78 x 1/6"
MaterialSS 304
Coupling sizeDN 50
Availability
🔍
VariantDINN065
Weight [g]320
Work Pressure - BAR [20°C]25
Thread connectionRD 95 x 1/6"
MaterialSS 304
Coupling sizeDN 65
Availability
🔍
VariantDINN075
Weight [g]500
Work Pressure - BAR [20°C]25
Thread connectionRD 104 X 1/6"
MaterialSS 304
Coupling sizeDN 75
Availability
🔍
VariantDINN080
Weight [g]530
Work Pressure - BAR [20°C]25
Thread connectionRD 110 x 1/4"
MaterialSS 304
Coupling sizeDN 80
Availability
🔍
VariantDINN100
Weight [g]720
Work Pressure - BAR [20°C]25
Thread connectionRD 130 x 1/4"
MaterialSS 304
Coupling sizeDN 100
Availability
🔍
VariantDINN125
Weight [g]920
Work Pressure - BAR [20°C]25
Thread connectionRD 160 x 1/4"
MaterialSS 304
Coupling sizeDN 125
Availability
🔍
VariantDINN150
Weight [g]1380
Work Pressure - BAR [20°C]25
Thread connectionRD 190 x 1/4"
MaterialSS 304
Coupling sizeDN 150
Availability
🔍
