ISO WELDING MALE COUPLING MALE THREAD DIN 11851 - SS 316
STANDARD DIN 11851 | ISO WELDING | MALE PART WITH MALE THREAD RD | SS 316
Product params
Material
AISI 316

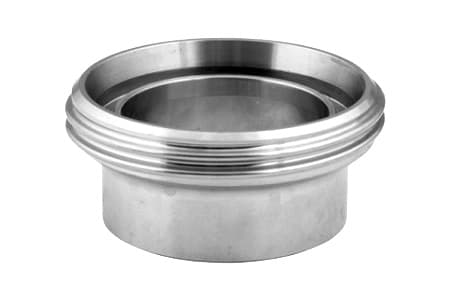

Hygienic coupling DIN 11851, male part for welding (welding end ISO size) with male thread RD. This kind of couplings is very popular for food grade, breweries and the petrochemical sector. Especially known as the dairy couplings due to their popularity in dairy factories.
WARNING: the gasket is not included, it's necessary to buy them separately.
Size chart
Variant
Weight [g]
Work Pressure - BAR [20°C]
Thread connection
Material
Coupling size
Welding size [mm]
Variant
Weight [g]
Work Pressure - BAR [20°C]
Thread connection
Material
Coupling size
Welding size [mm]
Availability
VariantDINWM010I
Weight [g]30
Work Pressure - BAR [20°C]40
Thread connectionRD 28 x 1/8"
MaterialSS 316
Coupling sizeDN 10
Welding size [mm]14,2 x 17,2
Availability
🔍
VariantDINMF015I
Weight [g]20
Work Pressure - BAR [20°C]40
Thread connectionRD 34 x 1/8"
MaterialSS 316
Coupling sizeDN 15
Welding size [mm]18,1 x 21,3 mm
Availability
🔍
VariantDINWM020I
Weight [g]80
Work Pressure - BAR [20°C]40
Thread connectionRD 44 x 1/6"
MaterialSS 316
Coupling sizeDN 20
Welding size [mm]23,7 x 26,9
Availability
🔍
VariantDINWM025I
Weight [g]110
Work Pressure - BAR [20°C]40
Thread connectionRD 52 x 1/6"
MaterialSS 316
Coupling sizeDN 25
Welding size [mm]29,7 x 33,7
Availability
🔍
VariantDINWM032I
Weight [g]140
Work Pressure - BAR [20°C]40
Thread connectionRD 58 x 1/6"
MaterialSS 316
Coupling sizeDN 32
Welding size [mm]38,4 x 42,4
Availability
🔍
VariantDINWM040I
Weight [g]190
Work Pressure - BAR [20°C]40
Thread connectionRD 65 x 1/6"
MaterialSS 316
Coupling sizeDN 40
Welding size [mm]44,3 x 48,3
Availability
🔍
VariantDINWM050I
Weight [g]250
Work Pressure - BAR [20°C]40
Thread connectionRD 78 x 1/6"
MaterialSS 316
Coupling sizeDN 50
Welding size [mm]56,3 x 60,3
Availability
🔍
VariantDINWM065I
Weight [g]370
Work Pressure - BAR [20°C]24
Thread connectionRD 95 x 1/6"
MaterialSS 316
Coupling sizeDN 65
Welding size [mm]72,1 x 76,1
Availability
🔍
VariantDINWM080I
Weight [g]560
Work Pressure - BAR [20°C]24
Thread connectionRD 110 x 1/4"
MaterialSS 316
Coupling sizeDN 80
Welding size [mm]84,9 x 88,9
Availability
🔍
VariantDINWM100I
Weight [g]810
Work Pressure - BAR [20°C]24
Thread connectionRD 130 x 1/4"
MaterialSS 316
Coupling sizeDN 100
Welding size [mm]110,3 x 114,3
Availability
🔍
VariantDINWM125I
Weight [g]1130
Work Pressure - BAR [20°C]24
Thread connectionRD 160 x 1/4"
MaterialSS 316
Coupling sizeDN 125
Welding size [mm]134,5 x 139,7
Availability
🔍
VariantDINWM150I
Weight [g]1770
Work Pressure - BAR [20°C]24
Thread connectionRD 190 x 1/4"
MaterialSS 316
Coupling sizeDN 150
Welding size [mm]163,1 x 168,3
Availability
🔍
