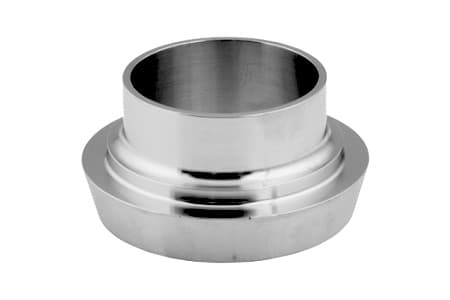

DIN WELDING CONE FEMALE DIN 11851 - SS 316
STANDARD DIN 11851 | DIN WELDING CONE | FEMALE PART FOR NUT DIN | SS 316
Product params
Material
AISI 316
Hygienic coupling DIN 11851, female part for welding (welding end DIN size) with cone for nut. This kind of couplings is very popular for food grade, breweries and petrochemical sector. Especially known as the milky couplings due to their popularity in dairy factories.
Size chart
Variant
Weight [g]
Work Pressure - BAR [20°C]
Ext. cone size
Material
Coupling size
Welding size [mm]
VariantDINWF010
Weight [g]10
Work Pressure - BAR [20°C]40
Ext. cone size22 mm
MaterialSS 316
Coupling sizeDN 10
Welding size [mm]10 x 13
buyRow
buyRow
Availability
Trade unit
pcs
ID
161.3054.3368
Price vat excluded
VariantDINWF015
Weight [g]30
Work Pressure - BAR [20°C]40
Ext. cone size28,5 mm
MaterialSS 316
Coupling sizeDN 15
Welding size [mm]16 x 19
buyRow
buyRow
Availability
Trade unit
pcs
ID
161.1610.1923
Price vat excluded
VariantDINWF025
Weight [g]70
Work Pressure - BAR [20°C]40
Ext. cone size44 mm
MaterialSS 316
Coupling sizeDN 25
Welding size [mm]26 x 29
buyRow
buyRow
Availability
Trade unit
pcs
ID
161.1612.1925
Price vat excluded
VariantDINWF032
Weight [g]120
Work Pressure - BAR [20°C]40
Ext. cone size50 mm
MaterialSS 316
Coupling sizeDN 32
Welding size [mm]32 x 35
buyRow
buyRow
Availability
Trade unit
pcs
ID
161.1613.1926
Price vat excluded
VariantDINWF040
Weight [g]130
Work Pressure - BAR [20°C]40
Ext. cone size56 mm
MaterialSS 316
Coupling sizeDN 40
Welding size [mm]38 x 41
buyRow
buyRow
Availability
Trade unit
pcs
ID
161.1614.1927
Price vat excluded
VariantDINWF050
Weight [g]174
Work Pressure - BAR [20°C]40
Ext. cone size68,50 mm
MaterialSS 316
Coupling sizeDN 50
Welding size [mm]50 x 53
buyRow
buyRow
Availability
Trade unit
pcs
ID
161.1615.1928
Price vat excluded
VariantDINWF065
Weight [g]310
Work Pressure - BAR [20°C]25
Ext. cone size86 mm
MaterialSS 316
Coupling sizeDN 65
Welding size [mm]66 x 70
buyRow
buyRow
Availability
Trade unit
pcs
ID
161.1616.1929
Price vat excluded
VariantDINWF080
Weight [g]380
Work Pressure - BAR [20°C]25
Ext. cone size100 mm
MaterialSS 316
Coupling sizeDN 80
Welding size [mm]81 x 85
buyRow
buyRow
Availability
Trade unit
pcs
ID
161.1617.1930
Price vat excluded
VariantDINWF100
Weight [g]600
Work Pressure - BAR [20°C]25
Ext. cone size121,90 mm
MaterialSS 316
Coupling sizeDN 100
Welding size [mm]100 x 104
buyRow
buyRow
Availability
Trade unit
pcs
ID
161.1618.1931
Price vat excluded
