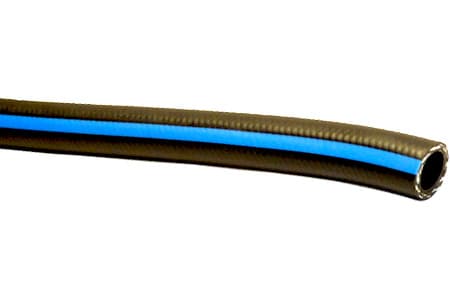

ARIA 40 PVC HOSE

PVC AIR COMPRESSOR HOSE ARIA 40 BAR INPART24
Pressure Hose | Reinforcement: Polyester reinforcement | Inner Wall: PVC | Outer Wall: PVC | Working Pressure: 40 BAR | Temperature Range: -10°C to +60°C

Product params

Working Pressure [bar]

40

Burst Pressure [bar]

120

Inner Wall

PVC

Conductivity

No

Non-stick PVC pressure hose with a reinforced construction. The polyester reinforcement allows for the transfer of media or compressed air at pressures up to 40 BAR. It is ideal for use as a spray hose, for the application of plant protection agents, or as an air compressor hose in mechanical workshops. The hose's outer wall is resistant to abrasion, UV radiation, and ozone. It is suitable for contact with light chemicals and water-based solutions. The sturdy construction prevents the hose from twisting or collapsing.

Inner Wall: PVC

Outer Wall: PVC

Reinforcement: Polyester reinforcement

Working Pressure: 40 BAR

Temperature Range: -10°C to +60°C

Size chart

Variant

Inner Diameter [mm]

Outer Diameter [mm]

Work Pressure - BAR [20°C]

Burst Pressure - BAR [20°C]

Bending Radius [mm]

Coil [mtr]

Trade unit

Variant

Inner Diameter [mm]

Outer Diameter [mm]

Work Pressure - BAR [20°C]

Burst Pressure - BAR [20°C]

Bending Radius [mm]

Coil [mtr]

Trade unit

Variant

72

Inner Diameter [mm]

8

Outer Diameter [mm]

14

Work Pressure - BAR [20°C]

40

Burst Pressure - BAR [20°C]

120

Bending Radius [mm]

40

Coil [mtr]

100

Trade unit

Meter

Variant

77

Inner Diameter [mm]

8

Outer Diameter [mm]

14

Work Pressure - BAR [20°C]

40

Burst Pressure - BAR [20°C]

120

Bending Radius [mm]

40

Coil [mtr]

100

Trade unit

Coil 100mtr

Variant

73

Inner Diameter [mm]

10

Outer Diameter [mm]

16

Work Pressure - BAR [20°C]

40

Burst Pressure - BAR [20°C]

120

Bending Radius [mm]

50

Coil [mtr]

100

Trade unit

Meter

Variant

78

Inner Diameter [mm]

10

Outer Diameter [mm]

16

Work Pressure - BAR [20°C]

40

Burst Pressure - BAR [20°C]

120

Bending Radius [mm]

50

Coil [mtr]

100

Trade unit

Coil 100mtr

Variant

74

Inner Diameter [mm]

13

Outer Diameter [mm]

21

Work Pressure - BAR [20°C]

40

Burst Pressure - BAR [20°C]

120

Bending Radius [mm]

70

Coil [mtr]

100

Trade unit

Meter

Variant

79

Inner Diameter [mm]

13

Outer Diameter [mm]

21

Work Pressure - BAR [20°C]

40

Burst Pressure - BAR [20°C]

120

Bending Radius [mm]

70

Coil [mtr]

100

Trade unit

Coil 100mtr

Variant

75

Inner Diameter [mm]

16

Outer Diameter [mm]

24

Work Pressure - BAR [20°C]

40

Burst Pressure - BAR [20°C]

120

Bending Radius [mm]

80

Coil [mtr]

50

Trade unit

Meter

Variant

80

Inner Diameter [mm]

16

Outer Diameter [mm]

24

Work Pressure - BAR [20°C]

40

Burst Pressure - BAR [20°C]

120

Bending Radius [mm]

80

Coil [mtr]

50

Trade unit

Coil 50mtr

Variant

76

Inner Diameter [mm]

19

Outer Diameter [mm]

28

Work Pressure - BAR [20°C]

40

Burst Pressure - BAR [20°C]

120

Bending Radius [mm]

100

Coil [mtr]

50

Trade unit

Meter

Variant

81

Inner Diameter [mm]

19

Outer Diameter [mm]

28

Work Pressure - BAR [20°C]

40

Burst Pressure - BAR [20°C]

120

Bending Radius [mm]

100

Coil [mtr]

50

Trade unit

Coil 50mtr
