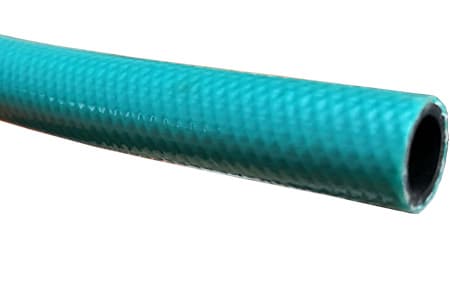

RAGNO POLIURETANO (PU) FOOD HOSE
![Ragno PU FOOD hose for air pressure Inpart24](/_next/image?url=https%3A%2F%2Fapi.inpart24.com%2Fimages%2Fproducts%2F344%2F669%2F593eae5c-288f-45a3-9318-1f2048611954.jpeg&w=1080&q=75)
Discharge Hose | Reinforcement: Strong textile reinforcement | Inner Wall: PU (Polyurethane) | Outer Wall: PU (Polyurethane) | Working Pressure: 20 BAR | Temperature Range: -15°C to +60°C
Product params
Working Pressure [bar]
20
Inner Wall
PU
Conductivity
No
Food
Yes
Very flexible and lightweight hose suitable to air pressure and fluids. The PU material is abrasion, oil, UV and Ozone resistance. The hose is very suitable for water-based paint sprayers, pneumatic tools, airbrushes and hose reels.
Inner Wall: PU
Outer Wall: green PU
Reinforcement: Strong textile reinforcement
Working Pressure: 20 BAR
Temperature Range: -15°C to +60°C
Norms: M26 FOOD QUALITY, 1935/2004/EC, 10/2011/EU (simulants A, B, C), 2023/2006/EC (GMP)
Size chart
id
Variant
Inner Diameter [mm]
Outer Diameter [mm]
Work Pressure - BAR [20°C]
Burst Pressure - BAR [20°C]
Bending Radius [mm]
Coil [mtr]
Variant
Inner Diameter [mm]
Outer Diameter [mm]
Work Pressure - BAR [20°C]
Burst Pressure - BAR [20°C]
Bending Radius [mm]
Coil [mtr]
Availability
Variant9152030820000
Inner Diameter [mm]8
Outer Diameter [mm]12
Work Pressure - BAR [20°C]20
Burst Pressure - BAR [20°C]60
Bending Radius [mm]22
Coil [mtr]60
Availability
🔍
Variant9152031050000
Inner Diameter [mm]10
Outer Diameter [mm]15
Work Pressure - BAR [20°C]20
Burst Pressure - BAR [20°C]60
Bending Radius [mm]38
Coil [mtr]50
Availability
🔍
Variant9152031390000
Inner Diameter [mm]13
Outer Diameter [mm]19
Work Pressure - BAR [20°C]20
Burst Pressure - BAR [20°C]60
Bending Radius [mm]65
Coil [mtr]30
Availability
🔍
Variant9152031630000
Inner Diameter [mm]16
Outer Diameter [mm]23
Work Pressure - BAR [20°C]20
Burst Pressure - BAR [20°C]60
Bending Radius [mm]60
Coil [mtr]25
Availability
🔍
