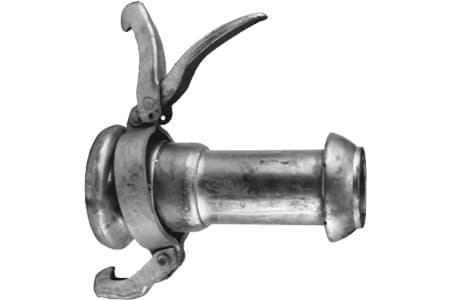

PERROT C81 COUPLING REDUCER FEMALE x MALE PART
![PERROT C81 REDUCER COUPLING FEMALE X MALE PART BIGGER TO SMALLER SIZE INPART24](/_next/image?url=https%3A%2F%2Fapi.inpart24.com%2Fimages%2Fproducts%2F123%2F468%2Fb6530a98-2911-4f61-a70f-990f2f4f8240.jpeg&w=1080&q=75)
MATERIAL: GALVANIZED STEEL | WORKING PRESSURE: 12-15 BAR | REDUCER LARGER TO SMALLER SIZE
Product params
Material
galvanized steel
O-Ring
SBR
PERROT C81 reducer coupling, female x male part (bigger to smaller size).
Material: galvanized steel
Temperature range: -30°C do +80°C
Working pressure: 12 - 15 BAR
Size chart
id
Variant
Size [mm]
Material
Seal material
Work Pressure - BAR [20°C]
Variant
Size [mm]
Material
Seal material
Work Pressure - BAR [20°C]
Availability
VariantPC81108
Size [mm]108 x 89
MaterialGalvanized steel
Seal materialSBR
Work Pressure - BAR [20°C]12
Availability
🔍
VariantPC81133
Size [mm]133 x 108
MaterialGalvanized steel
Seal materialSBR
Work Pressure - BAR [20°C]12
Availability
🔍
VariantPC81159
Size [mm]159 x 108
MaterialGalvanized steel
Seal materialSBR
Work Pressure - BAR [20°C]12
Availability
🔍
VariantPC811591
Size [mm]159 x 133
MaterialGalvanized steel
Seal materialSBR
Work Pressure - BAR [20°C]12
Availability
🔍
