STORZ END CAP PN16 - ALUMINUM
MATERIAL: FORGED ALUMINUM | WORK PRESSURE: 16 BAR | SEALING RING: NBR
Product params
Material
aluminum
Sealing ring
NBR

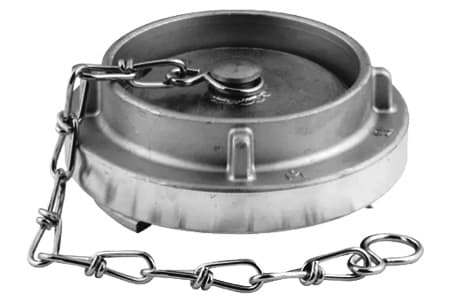

STORZ end cap with chain, for heavier applications made from forged aluminium, PN16 BAR.
Material: aluminum
Sealing ring: NBR
Temperature range: -35°C to +120°C
Work pressure: 16 BAR
Size chart
id
Variant
Lug distance [mm]
Material
Seal material
Work Pressure - BAR [20°C]
Weight [kg]
Variant
Lug distance [mm]
Material
Seal material
Work Pressure - BAR [20°C]
Weight [kg]
Availability
VariantSEC031AL
Lug distance [mm]31 (25-D)
MaterialAluminum
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [kg]0,09
Availability
🔍
VariantSEC044AL
Lug distance [mm]44 (32)
MaterialAluminum
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [kg]0,13
Availability
🔍
VariantSEC052AL
Lug distance [mm]52 (38)
MaterialAluminum
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [kg]0,17
Availability
🔍
VariantSEC066AL
Lug distance [mm]66 (52-C)
MaterialAluminum
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [kg]0,34
Availability
🔍
VariantSECC066CAL
Lug distance [mm]66 (52-C)
MaterialAluminum cast
Seal materialNBR
Work Pressure - BAR [20°C]6
Weight [kg]0,38
Availability
🔍
VariantSEC081AL
Lug distance [mm]81 (65)
MaterialAluminum
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [kg]0,46
Availability
🔍
VariantSECC089AL
Lug distance [mm]89 (75-B)
MaterialAluminum cast
Seal materialNBR
Work Pressure - BAR [20°C]6
Weight [kg]0,52
Availability
🔍
VariantSEC089AL
Lug distance [mm]89 (75-B)
MaterialAluminum
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [kg]0,56
Availability
🔍
VariantSEC105AL
Lug distance [mm]105 (90)
MaterialAluminum
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [kg]0,82
Availability
🔍
VariantSEC115AL
Lug distance [mm]115 (100)
MaterialAluminum
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [kg]0,96
Availability
🔍
VariantSECC133AL
Lug distance [mm]133 (110-A)
MaterialAluminum cast
Seal materialNBR
Work Pressure - BAR [20°C]6
Weight [kg]1,2
Availability
🔍
VariantSEC133AL
Lug distance [mm]133 (110-A)
MaterialAluminum
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [kg]1,34
Availability
🔍
VariantSEC148AL
Lug distance [mm]148 (125)
MaterialAluminum
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [kg]1,7
Availability
🔍
VariantSEC160AL
Lug distance [mm]160 (150)
MaterialAluminum
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [kg]2,14
Availability
🔍
VariantSEC220AL
Lug distance [mm]220 (205)
MaterialAluminum
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [kg]3,95
Availability
🔍
