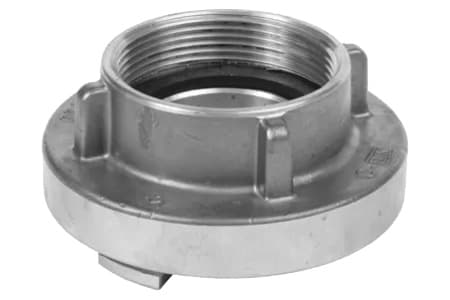

STORZ FEMALE THREAD COUPLING PN16 - ALUMINUM
MATERIAL: FORGED ALUMINUM | WORK PRESSURE: 16 BAR | SEALING RING: NBR | NORM: DIN ISO 228 | FEMALE THREAD
Product params
Material
aluminum
Sealing ring
NBR
Norm
DIN ISO 228
STORZ coupling, made of forged aluminum, for heavier aplications. Fixed with female (inner) thread and NBR sealing ring.
Material: forged aluminum
Sealing ring: NBR
Temperature range: -35oC to + 120oC
Work pressure: 16 BAR
Norm: DIN ISO 228
Size chart
id
Variant
Lug distance [mm]
Material
Thread connection
Seal material
Work Pressure - BAR [20°C]
Weight [g]
Variant
Lug distance [mm]
Material
Thread connection
Seal material
Work Pressure - BAR [20°C]
Weight [g]
Availability
VariantSFT0031AL
Lug distance [mm]31 (25-D)
MaterialAluminum
Thread connection1/2" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]80
Availability
🔍
VariantSFT1031AL
Lug distance [mm]31 (25-D)
MaterialAluminum
Thread connection3/4" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]80
Availability
🔍
VariantSFT2031AL
Lug distance [mm]31 (25-D)
MaterialAluminum
Thread connection1" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]80
Availability
🔍
VariantSFT0044AL
Lug distance [mm]44 (32)
MaterialAluminum
Thread connection1" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]160
Availability
🔍
VariantSFT0052AL
Lug distance [mm]52 (38)
MaterialAluminum
Thread connection1" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]150
Availability
🔍
VariantSFT0066AL
Lug distance [mm]66 (52-C)
MaterialAluminum
Thread connection1" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]280
Availability
🔍
VariantSFT0081AL
Lug distance [mm]81 (65)
MaterialAluminum
Thread connection1" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]530
Availability
🔍
VariantSFT3031AL
Lug distance [mm]31 (25-D)
MaterialAluminum
Thread connection1 1/4" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]90
Availability
🔍
VariantSFT1044AL
Lug distance [mm]44 (32)
MaterialAluminum
Thread connection1 1/4" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]140
Availability
🔍
VariantSFT1052AL
Lug distance [mm]52 (38)
MaterialAluminum
Thread connection1 1/4" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]170
Availability
🔍
VariantSFT1066AL
Lug distance [mm]66 (52-C)
MaterialAluminum
Thread connection1 1/4" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]300
Availability
🔍
VariantSFT3052AL
Lug distance [mm]52 (38)
MaterialAluminum
Thread connection1 1/2" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]150
Availability
🔍
VariantSFT0059AL
Lug distance [mm]59 (45)
MaterialAluminum
Thread connection1 1/2" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]250
Availability
🔍
VariantSFT9066AL
Lug distance [mm]66 (52-C)
MaterialAluminum
Thread connection11/2" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]280
Availability
🔍
VariantSFT1081AL
Lug distance [mm]81 (65)
MaterialAluminum
Thread connection1 1/2" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]450
Availability
🔍
VariantSFT3066AL
Lug distance [mm]66 (52-C)
MaterialAluminum
Thread connection2" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]280
Availability
🔍
VariantSFT2081AL
Lug distance [mm]81 (65)
MaterialAluminum
Thread connection2" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]380
Availability
🔍
VariantSFT0089AL
Lug distance [mm]89 (75-B)
MaterialAluminum
Thread connection2" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]430
Availability
🔍
VariantSFT4066AL
Lug distance [mm]66 (52-C)
MaterialAluminum
Thread connection2 1/2" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]280
Availability
🔍
VariantSFT3081AL
Lug distance [mm]81 (65)
MaterialAluminum
Thread connection2 1/2" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]380
Availability
🔍
VariantSFT1089AL
Lug distance [mm]89 (75-B)
MaterialAluminum
Thread connection2 1/2" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]420
Availability
🔍
VariantSFT4081AL
Lug distance [mm]81 (65)
MaterialAluminum
Thread connection3" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]410
Availability
🔍
VariantSFT2089AL
Lug distance [mm]89 (75-B)
MaterialAluminum
Thread connection3" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]420
Availability
🔍
VariantSFT1105AL
Lug distance [mm]105 (90)
MaterialAluminum
Thread connection3" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]600
Availability
🔍
VariantSFT0133AL
Lug distance [mm]133 (110-A)
MaterialAluminum
Thread connection3" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]1430
Availability
🔍
VariantSFT0115AL
Lug distance [mm]115 (100)
MaterialAluminum
Thread connection4" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]850
Availability
🔍
VariantSFT1133AL
Lug distance [mm]133 (110-A)
MaterialAluminum
Thread connection4" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]1090
Availability
🔍
VariantSFT0148AL
Lug distance [mm]148 (125)
MaterialAluminum
Thread connection4" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]1680
Availability
🔍
VariantSFT1148AL
Lug distance [mm]148 (125)
MaterialAluminum
Thread connection5" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]1380
Availability
🔍
VariantSFT0160AL
Lug distance [mm]160 (150)
MaterialAluminum
Thread connection6" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]1820
Availability
🔍
VariantSFT0220AL
Lug distance [mm]220 (205)
MaterialAluminum
Thread connection8" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]3480
Availability
🔍
