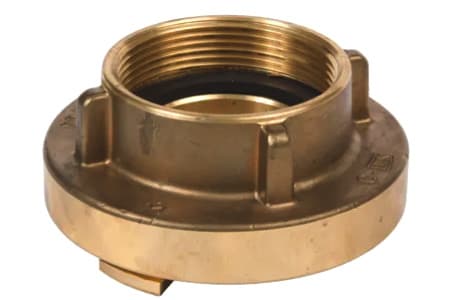

STORZ FEMALE THREAD COUPLING PN16 - BRASS
MATERIAL: BRASS | WORK PRESSURE: 16 BAR | SEALING RING: NBR | NORM: DIN ISO 228 | FEMALE THREAD
Product params
Material
brass
Sealing ring
NBR
Norm
DIN ISO 228
STORZ coupling, made of brass, for heavier aplications. Ended by female (inner) thread and NBR sealing ring.
Material: brass
Sealing ring: NBR
Temperature range: -35C to + 120C
Work pressure: 16 BAR
Norm: DIN ISO 228
Size chart
id
Variant
Lug distance [mm]
Material
Thread connection
Seal material
Work Pressure - BAR [20°C]
Weight [g]
Variant
Lug distance [mm]
Material
Thread connection
Seal material
Work Pressure - BAR [20°C]
Weight [g]
Availability
VariantSFT0031BR
Lug distance [mm]31 (25-D)
MaterialBrass
Thread connection3/4" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]230
Availability
🔍
VariantSFT1031BR
Lug distance [mm]31 (25-D)
MaterialBrass
Thread connection1" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]230
Availability
🔍
VariantSFT0044BR
Lug distance [mm]44 (32)
MaterialBrass
Thread connection1" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]450
Availability
🔍
VariantSFT0052BR
Lug distance [mm]52 (38)
MaterialBrass
Thread connection1" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]440
Availability
🔍
VariantSFT0066BR
Lug distance [mm]66 (52-C)
MaterialBrass
Thread connection1" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]1100
Availability
🔍
VariantSFT1052BR
Lug distance [mm]52 (38)
MaterialBrass
Thread connection1 1/4" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]510
Availability
🔍
VariantSFT1066BR
Lug distance [mm]66 (52-C)
MaterialBrass
Thread connection1 1/4" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]510
Availability
🔍
VariantSFT2052BR
Lug distance [mm]52 (38)
MaterialBrass
Thread connection1 1/2" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]440
Availability
🔍
VariantSFT2066BR
Lug distance [mm]66 (52-C)
MaterialBrass
Thread connection1 1/2" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]1000
Availability
🔍
VariantSFT3052BR
Lug distance [mm]52 (38)
MaterialBrass
Thread connection2" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]530
Availability
🔍
VariantSFT3066BR
Lug distance [mm]66 (52-C)
MaterialBrass
Thread connection2" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]800
Availability
🔍
VariantSFT0081BR
Lug distance [mm]81 (65)
MaterialBrass
Thread connection2" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]1470
Availability
🔍
VariantSFT1081BR
Lug distance [mm]81 (65)
MaterialBrass
Thread connection2 1/2" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]1120
Availability
🔍
VariantSFT0089BR
Lug distance [mm]89 (75-B)
MaterialBrass
Thread connection2 1/2" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]1260
Availability
🔍
VariantSFT1089BR
Lug distance [mm]89 (75-B)
MaterialBrass
Thread connection3" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]1500
Availability
🔍
