STORZ FEMALE THREAD COUPLING PN16 - STAINLESS STEEL

STORZ COUPLING WITH FEMALE THREAD STAINLESS STEEL PN 16 INPART24
MATERIAL: AISI 316 | WORK PRESSURE: 16 BAR | SEALING RING: VITON | NORM: DIN ISO 228 | FEMALE THREAD

Product params

Material

SS

Sealing ring

Viton

Norm

DIN ISO 228

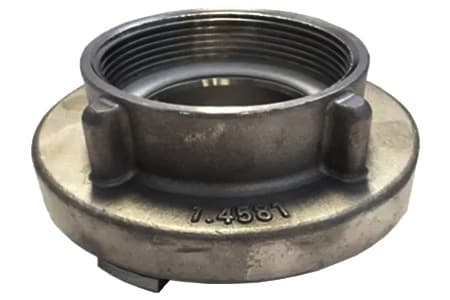

STORZ coupling, made of stainless steel, for heavier applications like to transfer corrosive chemicals. Ended by female (inner) thread and the Viton sealing ring.

Material: stainless steel

Sealing ring: Viton

Temperature range: -26C to + 205C

Work pressure: 16 BAR

Norm: DIN ISO 228

Size chart

Variant

Lug distance [mm]

Material

Thread connection

Seal material

Work Pressure - BAR [20°C]

Weight [g]

Trade unit

Variant

Lug distance [mm]

Material

Thread connection

Seal material

Work Pressure - BAR [20°C]

Weight [g]

Trade unit

Variant

1579

Lug distance [mm]

31

Material

SS

Thread connection

1/2" Female

Seal material

Viton

Work Pressure - BAR [20°C]

16

Weight [g]

250

Trade unit

pcs

Variant

1580

Lug distance [mm]

31

Material

SS

Thread connection

3/4" Female

Seal material

Viton

Work Pressure - BAR [20°C]

16

Weight [g]

250

Trade unit

pcs

Variant

1581

Lug distance [mm]

31

Material

SS

Thread connection

1" Female

Seal material

Viton

Work Pressure - BAR [20°C]

16

Weight [g]

210

Trade unit

pcs

Variant

1582

Lug distance [mm]

66

Material

SS

Thread connection

1" Female

Seal material

Viton

Work Pressure - BAR [20°C]

16

Weight [g]

1080

Trade unit

pcs

Variant

1583

Lug distance [mm]

52

Material

SS

Thread connection

1 1/4" Female

Seal material

Viton

Work Pressure - BAR [20°C]

16

Weight [g]

520

Trade unit

pcs

Variant

1584

Lug distance [mm]

66

Material

SS

Thread connection

1 1/4" Female

Seal material

Viton

Work Pressure - BAR [20°C]

16

Weight [g]

1020

Trade unit

pcs

Variant

1585

Lug distance [mm]

52

Material

SS

Thread connection

1 1/2" Female

Seal material

Viton

Work Pressure - BAR [20°C]

16

Weight [g]

470

Trade unit

pcs

Variant

1586

Lug distance [mm]

66

Material

SS

Thread connection

1 1/2" Female

Seal material

Viton

Work Pressure - BAR [20°C]

16

Weight [g]

980

Trade unit

pcs

Variant

1587

Lug distance [mm]

66

Material

SS

Thread connection

2" Female

Seal material

Viton

Work Pressure - BAR [20°C]

16

Weight [g]

770

Trade unit

pcs

Variant

1588

Lug distance [mm]

81

Material

SS

Thread connection

2" Female

Seal material

Viton

Work Pressure - BAR [20°C]

16

Weight [g]

1310

Trade unit

pcs

Variant

1589

Lug distance [mm]

89

Material

SS

Thread connection

2" Female

Seal material

Viton

Work Pressure - BAR [20°C]

16

Weight [g]

1500

Trade unit

pcs

Variant

1590

Lug distance [mm]

66

Material

SS

Thread connection

2 1/2" Female

Seal material

Viton

Work Pressure - BAR [20°C]

16

Weight [g]

1540

Trade unit

pcs

Variant

1591

Lug distance [mm]

81

Material

SS

Thread connection

2 1/2" Female

Seal material

Viton

Work Pressure - BAR [20°C]

16

Weight [g]

1020

Trade unit

pcs

Variant

1592

Lug distance [mm]

89

Material

SS

Thread connection

3" Female

Seal material

Viton

Work Pressure - BAR [20°C]

16

Weight [g]

1260

Trade unit

pcs

Variant

1593

Lug distance [mm]

115

Material

SS

Thread connection

4" Female

Seal material

Viton

Work Pressure - BAR [20°C]

16

Weight [g]

2220

Trade unit

pcs

Variant

1594

Lug distance [mm]

133

Material

SS

Thread connection

4" Female

Seal material

Viton

Work Pressure - BAR [20°C]

16

Weight [g]

3500

Trade unit

pcs

Variant

1595

Lug distance [mm]

148

Material

SS

Thread connection

5" Female

Seal material

Viton

Work Pressure - BAR [20°C]

16

Weight [g]

3550

Trade unit

pcs

Variant

1596

Lug distance [mm]

160

Material

SS

Thread connection

6" Female

Seal material

Viton

Work Pressure - BAR [20°C]

16

Weight [g]

5300

Trade unit

pcs

STORZ FEMALE THREAD COUPLING PN16 - STAINLESS STEEL

from 356.62zł
vat excluded

intereurope shipping

Shipping all over the country

high quality

Top quality product

call us

If you have any questions, write to us

sku

SKU: 138

stock
Available
