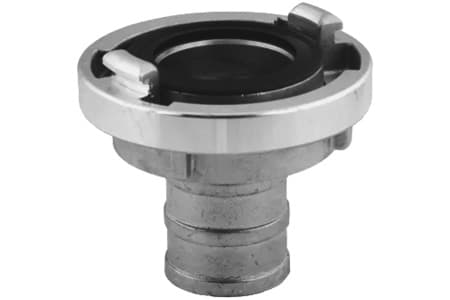

STORZ COUPLING PN16 WITH LONG HOSETAIL - FORGED ALUMINUM
MATERIAL: FORGED ALUMINUM | WORK PRESSURE: 16 BAR | SEALING RING: NBR | HOSE TAIL
Product params
Material
aluminum
Sealing ring
NBR
STORZ coupling, made of forged aluminum, for heavier applications. The STORZ hose connector, swivel with long hose tail, and NBR sealing ring are suitable to use with bolt clamps like GBS or MIKALOR SUPRA.
Material: forged aluminum
Sealing ring: NBR
Temperature range: - 35C do +120C
Work pressure: 16 BAR
Size chart
id
Variant
Lug distance [mm]
Material
Hosetail [mm]
Seal material
Work Pressure - BAR [20°C]
Weight [g]
Variant
Lug distance [mm]
Material
Hosetail [mm]
Seal material
Work Pressure - BAR [20°C]
Weight [g]
Availability
VariantSLT0044AL
Lug distance [mm]44 (32)
MaterialAluminum
Hosetail [mm]19
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]140
Availability
🔍
VariantSLT066AL
Lug distance [mm]66 (52-C)
MaterialAluminum
Hosetail [mm]19
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]360
Availability
🔍
VariantSLT0031AL
Lug distance [mm]31 (25-D)
MaterialAluminum
Hosetail [mm]25
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]90
Availability
🔍
VariantSLT1044AL
Lug distance [mm]44 (32)
MaterialAluminum
Hosetail [mm]25
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]140
Availability
🔍
VariantSLT0052AL
Lug distance [mm]52 (38)
MaterialAluminum
Hosetail [mm]25
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]200
Availability
🔍
VariantSLT1066AL
Lug distance [mm]66 (52-C)
MaterialAluminum
Hosetail [mm]25
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]370
Availability
🔍
VariantSLT2044AL
Lug distance [mm]44 (32)
MaterialAluminum
Hosetail [mm]32
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]140
Availability
🔍
VariantSLT2066AL
Lug distance [mm]66 (52-C)
MaterialAluminum
Hosetail [mm]32
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]370
Availability
🔍
VariantSLT0051AL
Lug distance [mm]51 (38)
MaterialAluminum
Hosetail [mm]38
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]220
Availability
🔍
VariantSLT3066AL
Lug distance [mm]66 (52-C)
MaterialAluminum
Hosetail [mm]38
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]370
Availability
🔍
VariantSLT0081AL
Lug distance [mm]81 (65)
MaterialAluminum
Hosetail [mm]38
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]460
Availability
🔍
VariantSLT4066AL
Lug distance [mm]66 (52-C)
MaterialAluminum
Hosetail [mm]45
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]370
Availability
🔍
VariantSLT5066AL
Lug distance [mm]66 (52-C)
MaterialAluminum
Hosetail [mm]52
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]370
Availability
🔍
VariantSLT1081AL
Lug distance [mm]81 (65)
MaterialAluminum
Hosetail [mm]52
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]500
Availability
🔍
VariantSLT0089AL
Lug distance [mm]89 (75-B)
MaterialAluminum
Hosetail [mm]52
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]660
Availability
🔍
VariantSLT2081AL
Lug distance [mm]81 (65)
MaterialAluminum
Hosetail [mm]65
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]510
Availability
🔍
VariantSLT1089AL
Lug distance [mm]89 (75-B)
MaterialAluminum
Hosetail [mm]65
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]680
Availability
🔍
VariantSLT2089AL
Lug distance [mm]89 (75-B)
MaterialAluminum
Hosetail [mm]70
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]730
Availability
🔍
VariantSLT3081AL
Lug distance [mm]81 (65)
MaterialAluminum
Hosetail [mm]75
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]530
Availability
🔍
VariantSLT3089AL
Lug distance [mm]89 (75-B)
MaterialAluminum
Hosetail [mm]75
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]710
Availability
🔍
VariantSLT0105AL
Lug distance [mm]105 (90)
MaterialAluminum
Hosetail [mm]75
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]1020
Availability
🔍
VariantSLT1105AL
Lug distance [mm]105 (90)
MaterialAluminum
Hosetail [mm]90
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]1090
Availability
🔍
VariantSLT0133AL
Lug distance [mm]133 (110-A)
MaterialAluminum
Hosetail [mm]90
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]1680
Availability
🔍
VariantSLT0115AL
Lug distance [mm]115 (100)
MaterialAluminum
Hosetail [mm]100
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]1150
Availability
🔍
VariantSLT1133AL
Lug distance [mm]133 (110-A)
MaterialAluminum
Hosetail [mm]100
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]1770
Availability
🔍
VariantSLT2133AL
Lug distance [mm]133 (110-A)
MaterialAluminum
Hosetail [mm]125
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]2020
Availability
🔍
VariantSLT0148AL
Lug distance [mm]148 (125)
MaterialAluminum
Hosetail [mm]125
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]2270
Availability
🔍
VariantSLT0160AL
Lug distance [mm]160 (150)
MaterialAluminum
Hosetail [mm]150
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]2900
Availability
🔍
