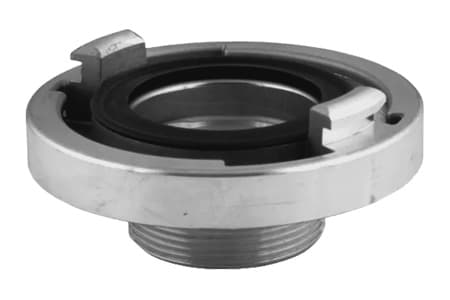

STORZ MALE THREAD PN16 - FORGED ALUMINIUM
MATERIAL: FORGED ALUMINIUM | WORK PRESSURE: 16 BAR | SEALING RING: NBR | MALE THREAD
Product params
Material
aluminium
Sealing ring
NBR
Norm
DIN ISO 228
STORZ coupling, made of forged aluminum, for heavier applications. Ended by male thread and NBR sealing ring.
Material: forged aluminium
Sealing ring: NBR
Temperature range: -35C do + 120C
Work pressure: 16 BAR
Norm: DIN ISO 228
Size chart
id
Variant
Lug distance [mm]
Material
Thread connection
Seal material
Work Pressure - BAR [20°C]
Weight [g]
Variant
Lug distance [mm]
Material
Thread connection
Seal material
Work Pressure - BAR [20°C]
Weight [g]
Availability
VariantSMT0031AL
Lug distance [mm]31 (25-D)
MaterialAluminum
Thread connection3/4" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]70
Availability
🔍
VariantSMT1031AL
Lug distance [mm]31 (25-D)
MaterialAluminum
Thread connection1" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]70
Availability
🔍
VariantSMT0044AL
Lug distance [mm]44 (32)
MaterialAluminum
Thread connection1" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]120
Availability
🔍
VariantSMT0066AL
Lug distance [mm]66 (52-C)
MaterialAluminum
Thread connection1" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]250
Availability
🔍
VariantSMT1044AL
Lug distance [mm]44 (32)
MaterialAluminum
Thread connection1 1/4" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]250
Availability
🔍
VariantSMT0052AL
Lug distance [mm]52 (38)
MaterialAluminum
Thread connection1 1/4" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]150
Availability
🔍
VariantSMT1066AL
Lug distance [mm]66 (52-C)
MaterialAluminum
Thread connection1 1/4" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]250
Availability
🔍
VariantSMT0081AL
Lug distance [mm]81 (65)
MaterialAluminum
Thread connection1 1/4" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]500
Availability
🔍
VariantSMT2031AL
Lug distance [mm]31 (25-D)
MaterialAluminum
Thread connection1 1/2" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]90
Availability
🔍
VariantSMT1052AL
Lug distance [mm]52 (38)
MaterialAluminum
Thread connection1 1/2" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]140
Availability
🔍
VariantSMT2066AL
Lug distance [mm]66 (52-C)
MaterialAluminum
Thread connection1 1/2" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]250
Availability
🔍
VariantSMT1081AL
Lug distance [mm]81 (65)
MaterialAluminum
Thread connection1 1/2" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]360
Availability
🔍
VariantSMT2052AL
Lug distance [mm]52 (38)
MaterialAluminum
Thread connection2" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]170
Availability
🔍
VariantSMT3066AL
Lug distance [mm]66 (52-C)
MaterialAluminum
Thread connection2" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]210
Availability
🔍
VariantSMT2081AL
Lug distance [mm]81 (65)
MaterialAluminum
Thread connection2" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]360
Availability
🔍
VariantSMT0089AL
Lug distance [mm]89 (75-B)
MaterialAluminum
Thread connection2" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]400
Availability
🔍
VariantSMT4066AL
Lug distance [mm]66 (52-C)
MaterialAluminum
Thread connection2 1/2" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]250
Availability
🔍
VariantSMT3081AL
Lug distance [mm]81 (65)
MaterialAluminum
Thread connection2 1/2" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]380
Availability
🔍
VariantSMT1089AL
Lug distance [mm]89 (75-B)
MaterialAluminum
Thread connection2 1/2" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]360
Availability
🔍
VariantSMT4081AL
Lug distance [mm]81 (65)
MaterialAluminum
Thread connection3" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]330
Availability
🔍
VariantSMT2089AL
Lug distance [mm]89 (75-B)
MaterialAluminum
Thread connection3" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]390
Availability
🔍
VariantSMT0115AL
Lug distance [mm]115 (100)
MaterialAluminum
Thread connection4" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]710
Availability
🔍
VariantSMT0133AL
Lug distance [mm]133 (110-A)
MaterialAluminum
Thread connection4" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]1010
Availability
🔍
VariantSMT0148AL
Lug distance [mm]148 (125)
MaterialAluminum
Thread connection5" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]1810
Availability
🔍
VariantSMT0160AL
Lug distance [mm]160 (150)
MaterialAluminum
Thread connection6" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]2340
Availability
🔍
