STORZ COUPLING WITH MALE THREAD PN16 - BRASS
MATERIAL: BRASS | WORK PRESSURE: 16 BAR | SEALING RING: NBR | MALE THREAD
Product params
Material
brass
Sealing ring
NBR
Norm
DIN ISO 228

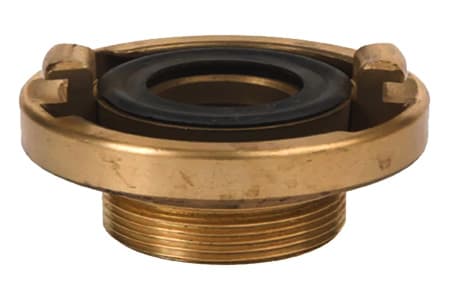

STORZ coupling, made of brass. Ended by male thread, and NBR sealing ring.
Material: brass
Sealing ring: NBR
Temperature range: -35C do + 120C
Work pressure: 16 BAR
Norm: DIN ISO 228
Size chart
id
Variant
Lug distance [mm]
Material
Thread connection
Seal material
Work Pressure - BAR [20°C]
Weight [g]
Variant
Lug distance [mm]
Material
Thread connection
Seal material
Work Pressure - BAR [20°C]
Weight [g]
Availability
VariantSMT0031BR
Lug distance [mm]31 (25-D)
MaterialBrass
Thread connection3/4" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]210
Availability
🔍
VariantSMT1031BR
Lug distance [mm]31 (25-D)
MaterialBrass
Thread connection1" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]220
Availability
🔍
VariantSMT0044BR
Lug distance [mm]44 (32)
MaterialBrass
Thread connection1" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]
Availability
🔍
VariantSMT1044BR
Lug distance [mm]44 (32)
MaterialBrass
Thread connection1 1/4" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]400
Availability
🔍
VariantSMT0052BR
Lug distance [mm]52 (38)
MaterialBrass
Thread connection1 1/2" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]400
Availability
🔍
VariantSMT1052BR
Lug distance [mm]52 (38)
MaterialBrass
Thread connection2" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]510
Availability
🔍
VariantSMT0066BR
Lug distance [mm]66 (52-C)
MaterialBrass
Thread connection1" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]880
Availability
🔍
VariantSMT1066BR
Lug distance [mm]66 (52-C)
MaterialBrass
Thread connection1 1/2" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]890
Availability
🔍
VariantSMT2066BR
Lug distance [mm]66 (52-C)
MaterialBrass
Thread connection2" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]840
Availability
🔍
VariantSMT0081BR
Lug distance [mm]81 (65)
MaterialBrass
Thread connection2" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]1100
Availability
🔍
VariantSMT1081BR
Lug distance [mm]81 (65)
MaterialBrass
Thread connection2 1/2" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]1150
Availability
🔍
VariantSMT0089BR
Lug distance [mm]89 (75-B)
MaterialBrass
Thread connection2 1/2" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]1230
Availability
🔍
VariantSMT0115BR
Lug distance [mm]115 (100)
MaterialBrass
Thread connection4" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]2000
Availability
🔍
VariantSMT0133BR
Lug distance [mm]133 (110-A)
MaterialBrass
Thread connection4" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]3150
Availability
🔍
