STORZ REDUCER COUPLING PN16 - FORGED ALUMINIUM
MATERIAL: FORGED ALUMINIUM | WORK PRESSURE: 16 BAR | SEALING RING: NBR | STORZ REDUCER
Product params
Material
aluminum
Sealing ring
NBR

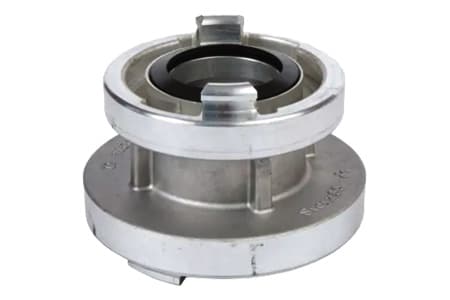

STORZ reducer coupling, made of forged aluminum, for heavier applications.
Material: aluminum
Sealing ring: NBR
Temperature range: -35C to +120C
Work pressure: 16 BAR
Size chart
Variant
Lug distance [mm]
Material
Seal material
Work Pressure - BAR [20°C]
Weight [g]
Variant
Lug distance [mm]
Material
Seal material
Work Pressure - BAR [20°C]
Weight [g]
Availability
VariantSR6631AL
Lug distance [mm]66 x 31 (52-C/25-D)
MaterialAluminum
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]310
Availability
🔍
VariantSR6644AL
Lug distance [mm]66 x 44 (52-C/32)
MaterialAluminum
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]620
Availability
🔍
VariantSR6651AL
Lug distance [mm]66 x 51 (52-C/38)
MaterialAluminum
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]600
Availability
🔍
VariantSR8151AL
Lug distance [mm]81 x 51 (65/38)
MaterialAluminum
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]640
Availability
🔍
VariantSR8166AL
Lug distance [mm]81 x 66 (65/52-C)
MaterialAluminum
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]790
Availability
🔍
VariantSR8966AL
Lug distance [mm]89 x 66 (75-B/52-C)
MaterialAluminum
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]600
Availability
🔍
VariantSR8981AL
Lug distance [mm]89 x 81 (75-B/65)
MaterialAluminum
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]970
Availability
🔍
VariantSR10589AL
Lug distance [mm]105 x 89 (90/75-B)
MaterialAluminum
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]1110
Availability
🔍
VariantSR11581AL
Lug distance [mm]115 x 81 (100/65)
MaterialAluminum
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]1270
Availability
🔍
VariantSR11589AL
Lug distance [mm]115 x 89 (100/75-B)
MaterialAluminum
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]1030
Availability
🔍
VariantSR13381AL
Lug distance [mm]133 x 81 (110-A/65)
MaterialAluminum
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]1930
Availability
🔍
VariantSR133115AL
Lug distance [mm]133 x 115 (110-A/100)
MaterialAluminum
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]2160
Availability
🔍
VariantSR148133AL
Lug distance [mm]148 x 133 (125/110-A)
MaterialAluminum
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]2880
Availability
🔍
VariantSR160115AL
Lug distance [mm]160 x 115
MaterialAluminum
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]3450
Availability
🔍
VariantSR160133AL
Lug distance [mm]160 x 133 (150/100)
MaterialAluminum
Seal materialNBR
Work Pressure - BAR [20°C]16
Weight [g]3730
Availability
🔍
