MULTIPOMP FOOD PVC HOSE

MULTI WATER PVC HARD SPIRAL HOSE FOR FOOD TRANSPARENT MULTI POMP FOOD PVC INPART24
Suction and Discharge Hose | Reinforcement: Rigid PVC spiral | Inner Wall: PVC | Outer Wall: PVC | Working Pressure: 3.5-6 BAR | Temperature Range: -10°C to +60°C

Product params

Working Pressure [bar]

3.5-6

Burst Pressure [bar]

10.5-18

Inner Wall

PVC

Conductivity

No

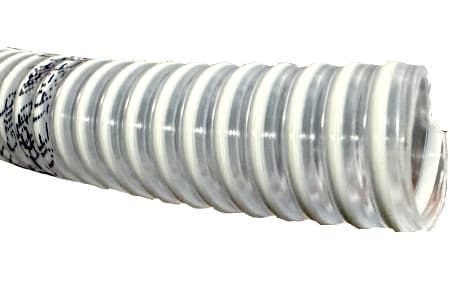

Multipurpose reinforced, suction and discharge hose for water and other liquids, suitable for both. The hose wall is fully transparent, with PVC spiral reinforcement. Thanks to its compliance with food industry standards, the hose can be successfully used for light applications in the food industry and beyond. It is very lightweight and portable, and it is resistant to UV and ozone.

Inner Wall: PVC

Outer Wall: PVC

Reinforcement: Rigid PVC spiral

Working Pressure: 3.5-6 BAR (depending on the diameter)

Temperature Range: -10°C to +60°C

Norms: EU 10/2011 A, B, C

Size chart

id

Variant

Inner Diameter [mm]

Outer Diameter [mm]

Work Pressure - BAR [20°C]

Burst Pressure - BAR [20°C]

Bending Radius [mm]

Coil [mtr]

Variant
Inner Diameter [mm]
Outer Diameter [mm]
Work Pressure - BAR [20°C]
Burst Pressure - BAR [20°C]
Bending Radius [mm]
Coil [mtr]
Availability
Variant24001319
Inner Diameter [mm]13
Outer Diameter [mm]19
Work Pressure - BAR [20°C]6
Burst Pressure - BAR [20°C]18
Bending Radius [mm]55
Coil [mtr]50
Availability
🔍
Variant24001625
Inner Diameter [mm]16
Outer Diameter [mm]25
Work Pressure - BAR [20°C]6
Burst Pressure - BAR [20°C]18
Bending Radius [mm]70
Coil [mtr]50
Availability
🔍
Variant24002025
Inner Diameter [mm]20
Outer Diameter [mm]25
Work Pressure - BAR [20°C]6
Burst Pressure - BAR [20°C]18
Bending Radius [mm]80
Coil [mtr]50
Availability
🔍
Variant24002530
Inner Diameter [mm]25
Outer Diameter [mm]30
Work Pressure - BAR [20°C]6
Burst Pressure - BAR [20°C]18
Bending Radius [mm]110
Coil [mtr]50
Availability
🔍
Variant24003035
Inner Diameter [mm]30
Outer Diameter [mm]35
Work Pressure - BAR [20°C]6
Burst Pressure - BAR [20°C]18
Bending Radius [mm]130
Coil [mtr]50
Availability
🔍
Variant24003237
Inner Diameter [mm]32
Outer Diameter [mm]37
Work Pressure - BAR [20°C]6
Burst Pressure - BAR [20°C]18
Bending Radius [mm]140
Coil [mtr]50
Availability
🔍
Variant24003540
Inner Diameter [mm]35
Outer Diameter [mm]40
Work Pressure - BAR [20°C]6
Burst Pressure - BAR [20°C]18
Bending Radius [mm]180
Coil [mtr]50
Availability
🔍
Variant24003844
Inner Diameter [mm]38
Outer Diameter [mm]44
Work Pressure - BAR [20°C]6
Burst Pressure - BAR [20°C]18
Bending Radius [mm]190
Coil [mtr]50
Availability
🔍
Variant24004046
Inner Diameter [mm]40
Outer Diameter [mm]46
Work Pressure - BAR [20°C]5
Burst Pressure - BAR [20°C]15
Bending Radius [mm]220
Coil [mtr]50
Availability
🔍
Variant24004552
Inner Diameter [mm]45
Outer Diameter [mm]52
Work Pressure - BAR [20°C]5
Burst Pressure - BAR [20°C]15
Bending Radius [mm]240
Coil [mtr]50
Availability
🔍
Variant24005159
Inner Diameter [mm]51
Outer Diameter [mm]59
Work Pressure - BAR [20°C]5
Burst Pressure - BAR [20°C]15
Bending Radius [mm]250
Coil [mtr]50
Availability
🔍
Variant24006069
Inner Diameter [mm]60
Outer Diameter [mm]69
Work Pressure - BAR [20°C]4
Burst Pressure - BAR [20°C]12
Bending Radius [mm]270
Coil [mtr]50
Availability
🔍
Variant24006372
Inner Diameter [mm]63
Outer Diameter [mm]72
Work Pressure - BAR [20°C]4
Burst Pressure - BAR [20°C]12
Bending Radius [mm]290
Coil [mtr]50
Availability
🔍
Variant24007079
Inner Diameter [mm]70
Outer Diameter [mm]79
Work Pressure - BAR [20°C]4
Burst Pressure - BAR [20°C]12
Bending Radius [mm]316
Coil [mtr]50
Availability
🔍
Variant24007685
Inner Diameter [mm]76
Outer Diameter [mm]85
Work Pressure - BAR [20°C]4
Burst Pressure - BAR [20°C]12
Bending Radius [mm]370
Coil [mtr]50
Availability
🔍
Variant24008089
Inner Diameter [mm]80
Outer Diameter [mm]89
Work Pressure - BAR [20°C]3,5
Burst Pressure - BAR [20°C]10,5
Bending Radius [mm]400
Coil [mtr]50
Availability
🔍
Variant24090102
Inner Diameter [mm]90
Outer Diameter [mm]102
Work Pressure - BAR [20°C]3,5
Burst Pressure - BAR [20°C]10,5
Bending Radius [mm]450
Coil [mtr]50
Availability
🔍
