TRI CLAMP DIN FITTING FOR WELDING - SS 316
MATERIAL: AISI 316 | NORM: DIN | TRI CLAMP FERRULE
Product params
Materiał
SS
Norm
DIN

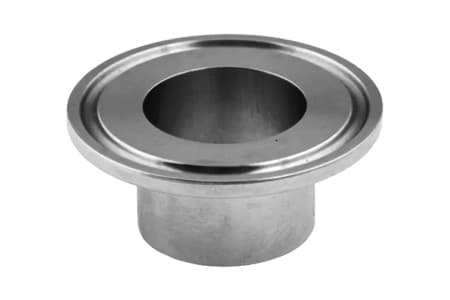

This TRI CLAMP ferrule flanged fitting, known also as the TRI CLOVER fitting, is suitable for butt welding with a separate pipe. The material is stainless steel AISI 316.
Norm: DIN 32676
Size chart
id
Variant
Work Pressure - BAR [20°C]
Welding size [mm]
Material
Disc [mm]
Variant
Work Pressure - BAR [20°C]
Welding size [mm]
Material
Disc [mm]
Availability
VariantTCWD034
Work Pressure - BAR [20°C]16
Welding size [mm]10 x 13
MaterialSS 316
Disc [mm]34
Availability
🔍
VariantTCWD134
Work Pressure - BAR [20°C]16
Welding size [mm]16 x 19
MaterialSS 316
Disc [mm]34
Availability
🔍
VariantTCWD234
Work Pressure - BAR [20°C]16
Welding size [mm]20 x 23
MaterialSS 316
Disc [mm]34
Availability
🔍
VariantTCWD050
Work Pressure - BAR [20°C]16
Welding size [mm]26 x 29
MaterialSS 316
Disc [mm]50,5
Availability
🔍
VariantTCWD150
Work Pressure - BAR [20°C]16
Welding size [mm]32 x 35
MaterialSS 316
Disc [mm]50,5
Availability
🔍
VariantTCWD250
Work Pressure - BAR [20°C]16
Welding size [mm]38 x 41
MaterialSS 316
Disc [mm]50,5
Availability
🔍
VariantTCWD064
Work Pressure - BAR [20°C]16
Welding size [mm]50 x 53
MaterialSS 316
Disc [mm]64
Availability
🔍
VariantTCWD091
Work Pressure - BAR [20°C]10
Welding size [mm]66 x 70
MaterialSS 316
Disc [mm]91
Availability
🔍
VariantTCWD106
Work Pressure - BAR [20°C]10
Welding size [mm]81 x 85
MaterialSS 316
Disc [mm]106
Availability
🔍
VariantTCWD119
Work Pressure - BAR [20°C]10
Welding size [mm]100 x 104
MaterialSS 316
Disc [mm]119
Availability
🔍
VariantTCWD155
Work Pressure - BAR [20°C]10
Welding size [mm]125 x 129
MaterialSS 316
Disc [mm]155
Availability
🔍
VariantTCWD183
Work Pressure - BAR [20°C]10
Welding size [mm]150 x 154
MaterialSS 316
Disc [mm]183
Availability
🔍
