CLAW COUPLING KAG MALE THREAD - SS 316

CLAW COUPLING KAG MALE THREAD STAINLESS STEEL 316 INPART24
MATERIAL: SS 316 | WORK PRESSURE: 16 BAR | SEALING RING: VITON (FKM) | NORM: DIN 3489 | CLAW DISTANCE: 42 MM

Product params

Material

SS 316

Sealing ring

Viton

Norm

DIN 3489

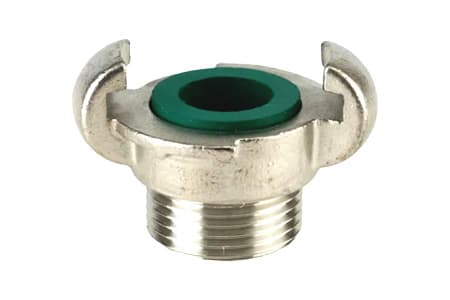

Claw coupling type KAG with outer thread, made of stainless steel, according to DIN 3489 norm.

Material: stainless steel 316

Sealing ring: Viton

Work pressure: 16 BAR

Norm: DIN 3489

Size chart

Variant

Lug distance [mm]

Material

Thread connection

Seal material

Min. medium temp. [°C]

Max. medium temp. [°C]

Work Pressure - BAR [20°C]

Weight [g]

Trade unit

Variant

Lug distance [mm]

Material

Thread connection

Seal material

Min. medium temp. [°C]

Max. medium temp. [°C]

Work Pressure - BAR [20°C]

Weight [g]

Trade unit

Variant

2168

Lug distance [mm]

42

Material

SS 316

Thread connection

1/2" Male

Seal material

Viton

Min. medium temp. [°C]

-40

Max. medium temp. [°C]

95

Work Pressure - BAR [20°C]

16

Weight [g]

150

Trade unit

pcs

Variant

2169

Lug distance [mm]

42

Material

SS 316

Thread connection

3/4" Male

Seal material

Viton

Min. medium temp. [°C]

-40

Max. medium temp. [°C]

95

Work Pressure - BAR [20°C]

16

Weight [g]

165

Trade unit

pcs

Variant

2170

Lug distance [mm]

42

Material

SS 316

Thread connection

1" Male

Seal material

Viton

Min. medium temp. [°C]

-40

Max. medium temp. [°C]

95

Work Pressure - BAR [20°C]

16

Weight [g]

220

Trade unit

pcs
