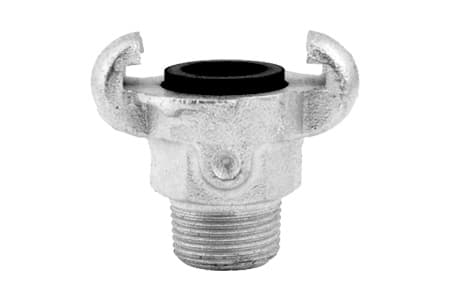

CLAW COUPLING KAG MALE THREAD - GALVANIZED IRON

CLAW COUPLING KAG WITH MALE THREAD GALVANIZED IRON INPART24
MATERIAL: GALVANIZED IRON | WORK PRESSURE: 10 BAR | SEALING RING: NBR | NORM: DIN 3489 | CLAW DISTANCE: 42 MM

Product params

Material

galvanized steel

Sealing ring

NBR

Norm

DIN 3489

Claw coupling type KAG with outer thread, made of galvanized steel, according to DIN 3489 norm.

Material: cast iron zinc plated

Sealing ring: NBR

Work pressure: 10 BAR

Norm: DIN 3489

Size chart

id

Variant

Lug distance [mm]

Material

Thread connection

Seal material

Min. medium temp. [°C]

Max. medium temp. [°C]

Work Pressure - BAR [20°C]

Weight [g]

Variant
Lug distance [mm]
Material
Thread connection
Seal material
Min. medium temp. [°C]
Max. medium temp. [°C]
Work Pressure - BAR [20°C]
Weight [g]
Availability
VariantKAG008GI
Lug distance [mm]42
MaterialCast iron zinc plated
Thread connection1/4" Male
Seal materialNBR
Min. medium temp. [°C]-40
Max. medium temp. [°C]95
Work Pressure - BAR [20°C]10
Weight [g]157
Availability
🔍
VariantKAG010GI
Lug distance [mm]42
MaterialCast iron zinc plated
Thread connection3/8" Male
Seal materialNBR
Min. medium temp. [°C]-40
Max. medium temp. [°C]95
Work Pressure - BAR [20°C]10
Weight [g]170
Availability
🔍
VariantKAG015GI
Lug distance [mm]42
MaterialCast iron zinc plated
Thread connection1/2" Male
Seal materialNBR
Min. medium temp. [°C]-40
Max. medium temp. [°C]95
Work Pressure - BAR [20°C]10
Weight [g]162
Availability
🔍
VariantKAG020GI
Lug distance [mm]42
MaterialCast iron zinc plated
Thread connection3/4" Male
Seal materialNBR
Min. medium temp. [°C]-40
Max. medium temp. [°C]95
Work Pressure - BAR [20°C]10
Weight [g]175
Availability
🔍
VariantKAG025GI
Lug distance [mm]42
MaterialCast iron zinc plated
Thread connection1" Male
Seal materialNBR
Min. medium temp. [°C]-40
Max. medium temp. [°C]95
Work Pressure - BAR [20°C]10
Weight [g]174
Availability
🔍
VariantKAG032GI
Lug distance [mm]42
MaterialCast iron zinc plated
Thread connection1 1/4" Male
Seal materialNBR
Min. medium temp. [°C]-40
Max. medium temp. [°C]95
Work Pressure - BAR [20°C]10
Weight [g]230
Availability
🔍

CLAW COUPLING KAG MALE THREAD - GALVANIZED IRON

from 16.69zł
vat excluded

stock
Availabledropdown
intereurope shipping

Shipping all over Europe

high quality

Top quality product

sku

SKU: 200
