CLAW COUPLING KASS MALE THREAD - GALVANIZED IRON

CLAW COUPLING KASS WITH MALE THREAD INPART24
MATERIAL: GALVANIZED IRON | WORK PRESSURE: 10 BAR | SEALING RING: NBR | NORM: DIN 3489 | CLAW DISTANCE: 42 MM

Product params

Material

galvanized steel

Sealing ring

NBR

Norm

DIN 3489

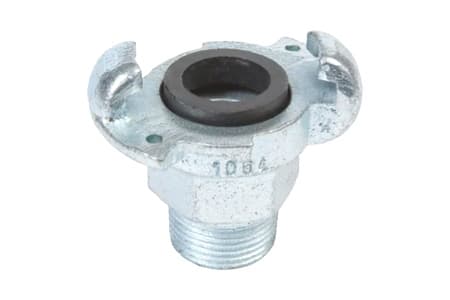

Claw coupling type KAG for pneumatic power supply, witho outer thread and safety holes, made of zinc plated cast iron, accroding to DIN 3489 norm.

Material: cast iron zinc plated

Sealing ring: NBR

Work pressure: 10 BAR

Norm: DIN 3489

Size chart

Variant

Lug distance [mm]

Material

Thread connection

Seal material

Min. medium temp. [°C]

Max. medium temp. [°C]

Work Pressure - BAR [20°C]

Weight [g]

Trade unit

Variant

Lug distance [mm]

Material

Thread connection

Seal material

Min. medium temp. [°C]

Max. medium temp. [°C]

Work Pressure - BAR [20°C]

Weight [g]

Trade unit

Variant

2177

Lug distance [mm]

42

Material

Cast iron zinc plated

Thread connection

1/2" Male

Seal material

NBR

Min. medium temp. [°C]

-40

Max. medium temp. [°C]

95

Work Pressure - BAR [20°C]

10

Weight [g]

170

Trade unit

pcs

Variant

2178

Lug distance [mm]

42

Material

Cast iron zinc plated

Thread connection

3/4" Male

Seal material

NBR

Min. medium temp. [°C]

-40

Max. medium temp. [°C]

95

Work Pressure - BAR [20°C]

10

Weight [g]

182

Trade unit

pcs

Variant

2179

Lug distance [mm]

42

Material

Cast iron zinc plated

Thread connection

1" Male

Seal material

NBR

Min. medium temp. [°C]

-40

Max. medium temp. [°C]

95

Work Pressure - BAR [20°C]

10

Weight [g]

199

Trade unit

pcs

CLAW COUPLING KASS MALE THREAD - GALVANIZED IRON

from 29.41zł
vat excluded

intereurope shipping

Shipping all over the country

high quality

Top quality product

call us

If you have any questions, write to us

sku

SKU: 201

stock
Available
