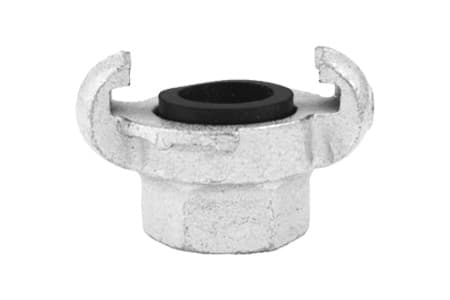

CLAW COUPLING KIG FEMALE THREAD BSP - CAST IRON ZINC-PLATED
MATERIAL: CAST IRON ZINC PLATED | WORK PRESSURE: 10 BAR | SEALING RING: NBR | NORM: DIN 3489 | CLAW DISTANCE: 42 MM
Product params
Material
Cast iron zinc plated
Sealing ring
NBR
Norm
DIN 3489
Thread type
BSP
Claw coupling KIG for pneumatic power supply, with inner thread BSP, made of cast iron zinc-plated, according to DIN 3489 norm.
Material: cast iron zinc-plated
Sealing ring: NBR
Work pressure: 10 BAR
Norm: DIN 3498
Size chart
Variant
Lug distance [mm]
Material
Thread connection
Seal material
Min. medium temp. [°C]
Max. medium temp. [°C]
Work Pressure - BAR [20°C]
Weight [g]
Variant
Lug distance [mm]
Material
Thread connection
Seal material
Min. medium temp. [°C]
Max. medium temp. [°C]
Work Pressure - BAR [20°C]
Weight [g]
Availability
VariantKIG008GI
Lug distance [mm]42
MaterialCast iron zinc plated
Thread connection1/4" Female
Seal materialNBR
Min. medium temp. [°C]-30
Max. medium temp. [°C]100
Work Pressure - BAR [20°C]10
Weight [g]129
Availability
🔍
VariantKIG010GI
Lug distance [mm]42
MaterialCast iron zinc plated
Thread connection3/8" Female
Seal materialNBR
Min. medium temp. [°C]-30
Max. medium temp. [°C]100
Work Pressure - BAR [20°C]10
Weight [g]125
Availability
🔍
VariantKIG015GI
Lug distance [mm]42
MaterialCast iron zinc plated
Thread connection1/2" Female
Seal materialNBR
Min. medium temp. [°C]-30
Max. medium temp. [°C]100
Work Pressure - BAR [20°C]10
Weight [g]155
Availability
🔍
VariantKIG020GI
Lug distance [mm]42
MaterialCast iron zinc plated
Thread connection3/4" Female
Seal materialNBR
Min. medium temp. [°C]-30
Max. medium temp. [°C]100
Work Pressure - BAR [20°C]10
Weight [g]138
Availability
🔍
VariantKIG025GI
Lug distance [mm]42
MaterialCast iron zinc plated
Thread connection1" Female
Seal materialNBR
Min. medium temp. [°C]-30
Max. medium temp. [°C]100
Work Pressure - BAR [20°C]10
Weight [g]178
Availability
🔍
VariantKIG032GI
Lug distance [mm]42
MaterialCast iron zinc plated
Thread connection1 1/4" Female
Seal materialNBR
Min. medium temp. [°C]-30
Max. medium temp. [°C]100
Work Pressure - BAR [20°C]10
Weight [g]313
Availability
🔍
