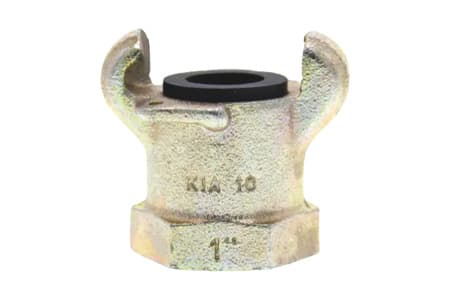

CLAW COUPLING KIG FEMALE THREAD NPT - ZINC-PLATED IRON

CLAW COUPLING KIG WITH FEMALE THREAD NPT ZINC PLATED IRON INPART24
MATERIAL: ZINC-PLATED IRON | WORK PRESSURE: 10 BAR | SEALING RING: NBR | NORM: DIN 3489 | CLAW DISTANCE: 42 MM | NPT THREAD

Product params

Material

zinc plated iron

Sealing ring

NBR

Norm

DIN 3489

Thread type

NPT

Claw coupling KIG for pneumatic power supply, with NPT female thread, made of zinc-plated iron, according to DIN 3489 norm.

Material: zinc-plated iron

Sealing ring: NBR

Work pressure: 10 BAR

Norm: DIN 3498

Size chart

Variant

Lug distance [mm]

Material

Thread connection

Seal material

Min. medium temp. [°C]

Max. medium temp. [°C]

Work Pressure - BAR [20°C]

Weight [g]

Trade unit

Variant

Lug distance [mm]

Material

Thread connection

Seal material

Min. medium temp. [°C]

Max. medium temp. [°C]

Work Pressure - BAR [20°C]

Weight [g]

Trade unit

Variant

2193

Lug distance [mm]

42

Material

Zinc-plated iron

Thread connection

3/8'' Female

Seal material

NBR

Min. medium temp. [°C]

-40

Max. medium temp. [°C]

95

Work Pressure - BAR [20°C]

10

Weight [g]

135

Trade unit

pcs

Variant

2194

Lug distance [mm]

42

Material

Zinc-plated iron

Thread connection

1/2'' Female

Seal material

NBR

Min. medium temp. [°C]

-40

Max. medium temp. [°C]

95

Work Pressure - BAR [20°C]

10

Weight [g]

150

Trade unit

pcs

Variant

2195

Lug distance [mm]

42

Material

Zinc-plated iron

Thread connection

3/4'' Female

Seal material

NBR

Min. medium temp. [°C]

-40

Max. medium temp. [°C]

95

Work Pressure - BAR [20°C]

10

Weight [g]

160

Trade unit

pcs

Variant

2196

Lug distance [mm]

42

Material

Zinc-plated iron

Thread connection

1'' Female

Seal material

NBR

Min. medium temp. [°C]

-40

Max. medium temp. [°C]

95

Work Pressure - BAR [20°C]

10

Weight [g]

184

Trade unit

psc

CLAW COUPLING KIG FEMALE THREAD NPT - ZINC-PLATED IRON

from 45.31zł
vat excluded

intereurope shipping

Shipping all over the country

high quality

Top quality product

call us

If you have any questions, write to us

sku

SKU: 204

stock
Available
