CLAW COUPLING KISS FEMALE THREAD BSP SAFETY HOLES - CAST IRON ZINC PLATED

CLAW COUPLING KISS WITH FEMALE THREAD BSP AND SAFETY HOLES 42 MM CAST IRON INPART24
MATERIAL: CAST IRON ZINC PLATED | WORK PRESSURE: 10 BAR | SEALING RING: NBR | NORM: DIN 3238 | SAFETY HOLES | CLAW DISTANCE: 42 MM

Product params

Material

Cast iron zinc plated

Sealing ring

NBR

Norm

DIN 3238

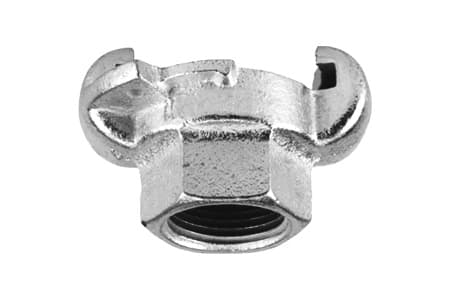

Claw coupling type KISS, for pneumatic power supply, with inner thread and safety holes, made of zinc plated cast iron, according to DIN 3238 norm.

Material: zin plated cast iron

Sealing ring: NBR

Work pressure: 10 bar

Norm: DIN 3238

Size chart

Variant

Lug distance [mm]

Material

Thread connection

Seal material

Min. medium temp. [°C]

Max. medium temp. [°C]

Work Pressure - BAR [20°C]

Weight [g]

Trade unit

Variant

Lug distance [mm]

Material

Thread connection

Seal material

Min. medium temp. [°C]

Max. medium temp. [°C]

Work Pressure - BAR [20°C]

Weight [g]

Trade unit

Variant

2202

Lug distance [mm]

42

Material

Cast iron zinc plated

Thread connection

1/2" Female

Seal material

NBR

Min. medium temp. [°C]

-30

Max. medium temp. [°C]

100

Work Pressure - BAR [20°C]

10

Weight [g]

170

Trade unit

pcs

Variant

2203

Lug distance [mm]

42

Material

Cast iron zinc plated

Thread connection

3/4'' Female

Seal material

NBR

Min. medium temp. [°C]

-30

Max. medium temp. [°C]

100

Work Pressure - BAR [20°C]

10

Weight [g]

150

Trade unit

pcs

Variant

2204

Lug distance [mm]

42

Material

Cast iron zinc plated

Thread connection

1" Female

Seal material

NBR

Min. medium temp. [°C]

-30

Max. medium temp. [°C]

100

Work Pressure - BAR [20°C]

10

Weight [g]

192

Trade unit

pcs
