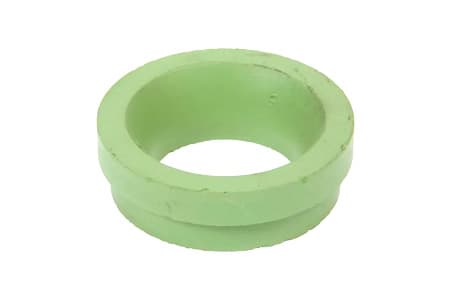

CLAW COUPLING SEALING RING - VITON
MATERIAL: VITON | MIN TEMP.: -40°C | MAX TEMP.: +200°C | NORM: DIN 3489
Product params
Material
Viton
Claw coupling sealing ring, made of Viton, for chemicals.
Size chart
id
Variant
Material
Dim. seal [mm]
Min. medium temp. [°C]
Max. medium temp. [°C]
Weight [g]
Work Pressure - BAR [20°C
Variant
Material
Dim. seal [mm]
Min. medium temp. [°C]
Max. medium temp. [°C]
Weight [g]
Work Pressure - BAR [20°C
Availability
VariantCLAWSR42V
MaterialViton
Dim. seal [mm]20 x 34 x 10,5
Min. medium temp. [°C]-40
Max. medium temp. [°C]200
Weight [g]9
Work Pressure - BAR [20°C16
Availability
🔍
