CLAW COUPLING SKB WITH HOSETAIL - GALVANIZED IRON

CLAW COUPLING SKB WITH HOSETAIL 42 MM INPART24
MATERIAL: GALVANIZED IRON | WORK PRESSURE: 10 BAR | SEALING RING: NBR | NORM: DIN 3489 | CLAW DISTANCE: 42 MM

Product params

Material

galvanized steel

Sealing ring

NBR

Norm

DIN 3489

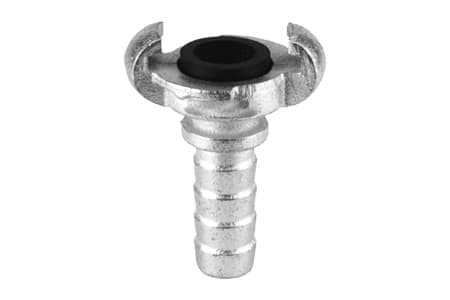

Claw coupling type SKB, for pneumatic power supply with ribbed hosetail and retaining collar, made according to DIN 3489 norm.

Materiala: galvanized iron

Sealing ring: NBR

Work pressure: 10 bar

Norm: DIN 3489

Size chart

id

Variant

Material

Seal material

Min. medium temp. [°C]

Max. medium temp. [°C]

Work Pressure - BAR [20°C]

Weight [g]

Hosetail [mm]

Lug distance [mm]

Variant
Material
Seal material
Min. medium temp. [°C]
Max. medium temp. [°C]
Work Pressure - BAR [20°C]
Weight [g]
Hosetail [mm]
Lug distance [mm]
Availability
VariantSKB013GI
MaterialCast iron zinc plated
Seal materialNBR
Min. medium temp. [°C]-30
Max. medium temp. [°C]100
Work Pressure - BAR [20°C]10
Weight [g]154
Hosetail [mm]13
Lug distance [mm]42
Availability
🔍
VariantSKB015GI
MaterialCast iron zinc plated
Seal materialNBR
Min. medium temp. [°C]-30
Max. medium temp. [°C]100
Work Pressure - BAR [20°C]10
Weight [g]146
Hosetail [mm]15
Lug distance [mm]42
Availability
🔍
VariantSKB019GI
MaterialCast iron zinc plated
Seal materialNBR
Min. medium temp. [°C]-30
Max. medium temp. [°C]100
Work Pressure - BAR [20°C]10
Weight [g]174
Hosetail [mm]19
Lug distance [mm]42
Availability
🔍
VariantSKB025GI
MaterialCast iron zinc plated
Seal materialNBR
Min. medium temp. [°C]-30
Max. medium temp. [°C]100
Work Pressure - BAR [20°C]10
Weight [g]236
Hosetail [mm]25
Lug distance [mm]42
Availability
🔍
