CLAW COUPLING SKG WITH HOSETAIL - GALVANIZED IRON
MATERIAL: GALVANIZED IRON | WORK PRESSURE: 10 BAR | SEALING RING: NBR | NORM: DIN 3489 | CLAW DISTANCE: 42 MM
Product params
Material
galvanized steel
Sealing ring
NBR
Norm
DIN 3489

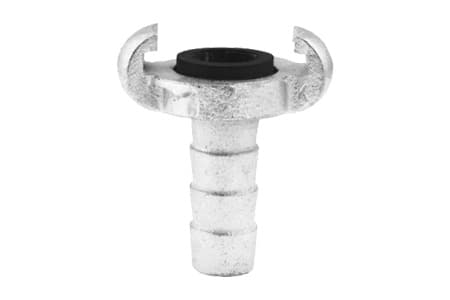

Claw coupling type SKG for pneumatic power supply, with ribbed hosetail.
Material: galvanized steel
Sealing ring: NBR
Work pressure: 10 bar
Norm: DIN 3489
Size chart
Variant
Material
Seal material
Min. medium temp. [°C]
Max. medium temp. [°C]
Work Pressure - BAR [20°C]
Weight [g]
Hosetail [mm]
Lug distance [mm]
VariantSKG006GI
MaterialCast iron zinc plated
Seal materialNBR
Min. medium temp. [°C]-40
Max. medium temp. [°C]95
Work Pressure - BAR [20°C]10
Weight [g]157
Hosetail [mm]6
Lug distance [mm]42
buyRow
buyRow
Availability
Trade unit
pcs
ID
217.1936.2248
Price vat excluded
VariantSKG008GI
MaterialCast iron zinc plated
Seal materialNBR
Min. medium temp. [°C]-40
Max. medium temp. [°C]95
Work Pressure - BAR [20°C]10
Weight [g]153
Hosetail [mm]8
Lug distance [mm]42
buyRow
buyRow
Availability
Trade unit
pcs
ID
217.1937.2249
Price vat excluded
VariantSKG010GI
MaterialCast iron zinc plated
Seal materialNBR
Min. medium temp. [°C]-40
Max. medium temp. [°C]95
Work Pressure - BAR [20°C]10
Weight [g]150
Hosetail [mm]10
Lug distance [mm]42
buyRow
buyRow
Availability
Trade unit
pcs
ID
217.1938.2250
Price vat excluded
VariantSKG013GI
MaterialCast iron zinc plated
Seal materialNBR
Min. medium temp. [°C]-40
Max. medium temp. [°C]95
Work Pressure - BAR [20°C]10
Weight [g]
Hosetail [mm]13
Lug distance [mm]42
buyRow
buyRow
Availability
Trade unit
psc
ID
217.1939.2251
Price vat excluded
VariantSKG015GI
MaterialCast iron zinc plated
Seal materialNBR
Min. medium temp. [°C]-40
Max. medium temp. [°C]95
Work Pressure - BAR [20°C]10
Weight [g]
Hosetail [mm]15
Lug distance [mm]42
buyRow
buyRow
Availability
Trade unit
psc
ID
217.1948.2263
Price vat excluded
VariantSKG019GI
MaterialCast iron zinc plated
Seal materialNBR
Min. medium temp. [°C]-40
Max. medium temp. [°C]95
Work Pressure - BAR [20°C]10
Weight [g]155
Hosetail [mm]19
Lug distance [mm]42
buyRow
buyRow
Availability
Trade unit
psc
ID
217.1949.2262
Price vat excluded
VariantSKG025GI
MaterialCast iron zinc plated
Seal materialNBR
Min. medium temp. [°C]-40
Max. medium temp. [°C]95
Work Pressure - BAR [20°C]10
Weight [g]176
Hosetail [mm]25
Lug distance [mm]42
buyRow
buyRow
Availability
Trade unit
psc
ID
217.1950.2261
Price vat excluded
VariantSKG032GI
MaterialCast iron zinc plated
Seal materialNBR
Min. medium temp. [°C]-40
Max. medium temp. [°C]95
Work Pressure - BAR [20°C]10
Weight [g]244
Hosetail [mm]32
Lug distance [mm]42
buyRow
buyRow
Availability
Trade unit
psc
ID
217.1951.2260
Price vat excluded
