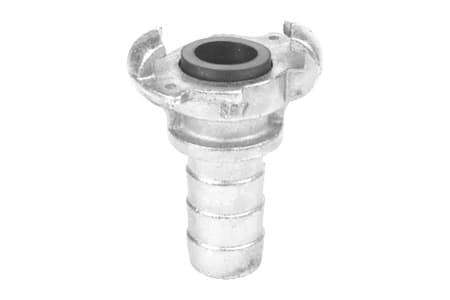

CLAW COUPLING SKSS WITH HOSETAIL - GALVANIZED IRON

CLAW COUPLING SKSS WITH HOSETAIL SAFETY HOLES 42 MM IRON INPART24
MATERIAL: GALVANIZED IRON | WORK PRESSURE: 10 BAR | SEALING RING: NBR | NORM: DIN 86 202 | SAFETY HOLES | CLAW DISTANCE: 42 MM

Product params

Material

galvanized steel

Sealing ring

NBR

Norm

DIN 86 202

Claw coupling type SKSS for pneumatic power supply, with hosetail, retaining collar and safety holes.

Material: galvanized iron

Sealing ring: NBR

Work pressure: 10 bar

Norm: DIN 86 202

Size chart

Variant

Material

Seal material

Min. medium temp. [°C]

Max. medium temp. [°C]

Work Pressure - BAR [20°C]

Weight [g]

Hosetail [mm]

Lug distance [mm]

Trade unit

Variant

Material

Seal material

Min. medium temp. [°C]

Max. medium temp. [°C]

Work Pressure - BAR [20°C]

Weight [g]

Hosetail [mm]

Lug distance [mm]

Trade unit

Variant

2264

Material

Cast iron zinc plated

Seal material

NBR

Min. medium temp. [°C]

-40

Max. medium temp. [°C]

95

Work Pressure - BAR [20°C]

10

Weight [g]

165

Hosetail [mm]

13

Lug distance [mm]

42

Trade unit

pcs

Variant

2266

Material

Cast iron zinc plated

Seal material

NBR

Min. medium temp. [°C]

-40

Max. medium temp. [°C]

95

Work Pressure - BAR [20°C]

10

Weight [g]

175

Hosetail [mm]

19

Lug distance [mm]

42

Trade unit

pcs

Variant

2267

Material

Cast iron zinc plated

Seal material

NBR

Min. medium temp. [°C]

-40

Max. medium temp. [°C]

95

Work Pressure - BAR [20°C]

10

Weight [g]

230

Hosetail [mm]

25

Lug distance [mm]

42

Trade unit

psc

CLAW COUPLING SKSS WITH HOSETAIL - GALVANIZED IRON

from 21.46zł
vat excluded

intereurope shipping

Shipping all over the country

high quality

Top quality product

call us

If you have any questions, write to us

sku

SKU: 219

stock
Available
