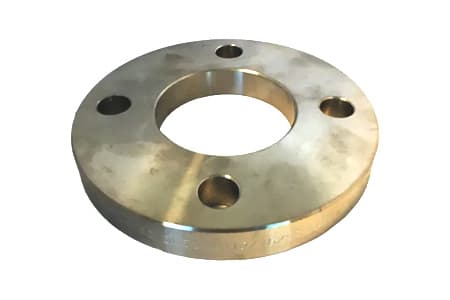

FLANGE PLATE EN 1092-01/02 - SS 304

FLANGE PLATE EN 1092-01_02 STAINLESS STEEL 304 INPART24
MATERIAL: SS 304 | SIZE RANGE: DN 10 - DN 150 | THICK VERSION

Product params

Material

SS 304

Norm

EN 1092-01/02

Swivel flange, flange type EN 1092-01/02 (previous version DIN 2576), made of AISI 304 stainless steel. The flange is available in a wide range of sizes: from DN 10 to DN 150. Standard PN 10/40 or PN 10/16, depending on the size.

IMPORTANT: This collar is intended for connection to the thin version of the TW FRS hose ends.

Material: stainless steel SS 304

Norm: EN 1092-01/02

Size chart

Variant

Size

Material

No of holes

Pitch circle

Outside flange

Work Pressure - BAR [20°C]

Weight [kg]

Inside flange

Trade unit

Variant

Size

Material

No of holes

Pitch circle

Outside flange

Work Pressure - BAR [20°C]

Weight [kg]

Inside flange

Trade unit

Variant

2481

Size

DN 10

Material

SS 304

No of holes

4

Pitch circle

60

Outside flange

90

Work Pressure - BAR [20°C]

PN 10/40

Weight [kg]

0,6

Inside flange

21

Trade unit

pcs

Variant

2482

Size

DN 15

Material

SS 304

No of holes

4

Pitch circle

65

Outside flange

95

Work Pressure - BAR [20°C]

PN 10/40

Weight [kg]

0,5

Inside flange

25

Trade unit

pcs

Variant

2483

Size

DN 20

Material

SS 304

No of holes

4

Pitch circle

75

Outside flange

105

Work Pressure - BAR [20°C]

PN 10/40

Weight [kg]

1

Inside flange

31

Trade unit

pcs

Variant

2484

Size

DN 25

Material

SS 304

No of holes

4

Pitch circle

85

Outside flange

115

Work Pressure - BAR [20°C]

PN 10/40

Weight [kg]

2

Inside flange

38

Trade unit

pcs

Variant

2485

Size

DN 40

Material

SS 304

No of holes

4

Pitch circle

110

Outside flange

150

Work Pressure - BAR [20°C]

PN 10/40

Weight [kg]

2

Inside flange

53

Trade unit

pcs

Variant

2486

Size

DN 50

Material

SS 304

No of holes

4

Pitch circle

125

Outside flange

165

Work Pressure - BAR [20°C]

PN 10/40

Weight [kg]

2,7

Inside flange

65

Trade unit

pcs

Variant

2487

Size

DN 65

Material

SS 304

No of holes

4

Pitch circle

145

Outside flange

185

Work Pressure - BAR [20°C]

PN 10/16

Weight [kg]

3,4

Inside flange

81

Trade unit

pcs

Variant

2488

Size

DN 80

Material

SS 304

No of holes

8

Pitch circle

160

Outside flange

200

Work Pressure - BAR [20°C]

PN 10/16

Weight [kg]

4,2

Inside flange

94

Trade unit

pcs

Variant

2489

Size

DN 100

Material

SS 304

No of holes

8

Pitch circle

180

Outside flange

220

Work Pressure - BAR [20°C]

PN 10/16

Weight [kg]

5,9

Inside flange

120

Trade unit

pcs

Variant

2490

Size

DN 125

Material

SS 304

No of holes

8

Pitch circle

210

Outside flange

250

Work Pressure - BAR [20°C]

PN 10/16

Weight [kg]

8

Inside flange

145

Trade unit

pcs

Variant

2491

Size

DN 150

Material

SS 304

No of holes

8

Pitch circle

240

Outside flange

285

Work Pressure - BAR [20°C]

PN 10/16

Weight [kg]

10

Inside flange

174

Trade unit

pcs

FLANGE PLATE EN 1092-01/02 - SS 304

from 102.32zł
vat excluded

intereurope shipping

Shipping all over the country

high quality

Top quality product

call us

If you have any questions, write to us

sku

SKU: 248

stock
Available
