STEAM FOOD LP 165 HOSE

Steam Food low-pressure Hose made of EPDM rubber. STEAM FOOD LP 165 INPART24
Discharge hose | Reinforcement: strong textile reinforcement | Inner Wall: EPDM | Outer Wall: EPDM | Working pressure: 7 BAR | Temperature range: -40 to +165 °C

Product params

Working Pressure [bar]

7

Burst Pressure [bar]

70

Inner Wall

EPDM

Food

Yes

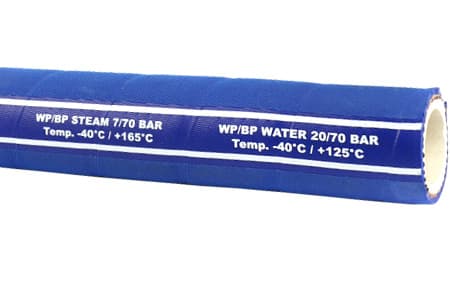

Low-pressure hose for steam and water, certified and approved for food contact. Designed for use in the food industry, resistant to UV radiation, ozone, and atmospheric conditions. The outer hose construction is micro-perforated to prevent 'popcorning' effect. This hose can also be used for transporting hot water up to +125°C and glycol. It is compatible with all water steam coupling systems (do not crimp the steam hose hydraulically).

Always ensure the hose is thoroughly dried after use to prevent condensate buildup inside. Do not use the hose simultaneously for both water and steam.

Inner Wall: EPDM - white

Outer Wall: EPDM - blue

Reinforcement: strong textile reinforcement

Working pressure: 7 BAR

Temperature Range: -40°C to +165°C (+125°C for water)

Norms: FDA, ISO

Size chart

Variant

Inner Diameter [mm]

Outer Diameter [mm]

Work Pressure - BAR [20°C]

Burst Pressure - BAR [20°C]

Coil [mtr]

Trade unit

Variant

Inner Diameter [mm]

Outer Diameter [mm]

Work Pressure - BAR [20°C]

Burst Pressure - BAR [20°C]

Coil [mtr]

Trade unit

Variant

340

Inner Diameter [mm]

13

Outer Diameter [mm]

23

Work Pressure - BAR [20°C]

7

Burst Pressure - BAR [20°C]

70

Coil [mtr]

61

Trade unit

Meter

Variant

348

Inner Diameter [mm]

13

Outer Diameter [mm]

23

Work Pressure - BAR [20°C]

7

Burst Pressure - BAR [20°C]

70

Coil [mtr]

61

Trade unit

Coil 61mtr

Variant

341

Inner Diameter [mm]

16

Outer Diameter [mm]

26

Work Pressure - BAR [20°C]

7

Burst Pressure - BAR [20°C]

70

Coil [mtr]

40

Trade unit

Meter

Variant

349

Inner Diameter [mm]

16

Outer Diameter [mm]

26

Work Pressure - BAR [20°C]

7

Burst Pressure - BAR [20°C]

70

Coil [mtr]

40

Trade unit

Coil 40mtr

Variant

342

Inner Diameter [mm]

19

Outer Diameter [mm]

31

Work Pressure - BAR [20°C]

7

Burst Pressure - BAR [20°C]

70

Coil [mtr]

61

Trade unit

Meter

Variant

350

Inner Diameter [mm]

19

Outer Diameter [mm]

31

Work Pressure - BAR [20°C]

7

Burst Pressure - BAR [20°C]

70

Coil [mtr]

61

Trade unit

Coil 61mtr

Variant

343

Inner Diameter [mm]

25

Outer Diameter [mm]

37

Work Pressure - BAR [20°C]

7

Burst Pressure - BAR [20°C]

70

Coil [mtr]

61

Trade unit

Meter

Variant

351

Inner Diameter [mm]

25

Outer Diameter [mm]

37

Work Pressure - BAR [20°C]

7

Burst Pressure - BAR [20°C]

70

Coil [mtr]

61

Trade unit

Coil 61mtr

Variant

344

Inner Diameter [mm]

32

Outer Diameter [mm]

45

Work Pressure - BAR [20°C]

7

Burst Pressure - BAR [20°C]

70

Coil [mtr]

40

Trade unit

Meter

Variant

352

Inner Diameter [mm]

32

Outer Diameter [mm]

45

Work Pressure - BAR [20°C]

7

Burst Pressure - BAR [20°C]

70

Coil [mtr]

40

Trade unit

Coil 40mtr

Variant

345

Inner Diameter [mm]

38

Outer Diameter [mm]

52

Work Pressure - BAR [20°C]

7

Burst Pressure - BAR [20°C]

70

Coil [mtr]

40

Trade unit

Meter

Variant

353

Inner Diameter [mm]

38

Outer Diameter [mm]

52

Work Pressure - BAR [20°C]

7

Burst Pressure - BAR [20°C]

70

Coil [mtr]

40

Trade unit

Coil 40mtr

Variant

346

Inner Diameter [mm]

51

Outer Diameter [mm]

67,5

Work Pressure - BAR [20°C]

7

Burst Pressure - BAR [20°C]

70

Coil [mtr]

40

Trade unit

Meter

Variant

354

Inner Diameter [mm]

51

Outer Diameter [mm]

67,5

Work Pressure - BAR [20°C]

7

Burst Pressure - BAR [20°C]

70

Coil [mtr]

40

Trade unit

Coil 40mtr

Variant

347

Inner Diameter [mm]

63

Outer Diameter [mm]

81

Work Pressure - BAR [20°C]

7

Burst Pressure - BAR [20°C]

70

Coil [mtr]

40

Trade unit

Meter

Variant

355

Inner Diameter [mm]

63

Outer Diameter [mm]

81

Work Pressure - BAR [20°C]

7

Burst Pressure - BAR [20°C]

70

Coil [mtr]

40

Trade unit

Coil 40mtr
