FLANGE PLATE EN 1092-01/04 - SS 304

FLANGE PLATE EN 1092-01_04 STAINLESS STEEL INPART24
MATERIAL: SS 304 | SIZE RANGE: DN 15 - DN 150 | THICK VERSION

Product params

Material

SS 304

Norm

EN 1092-01/04

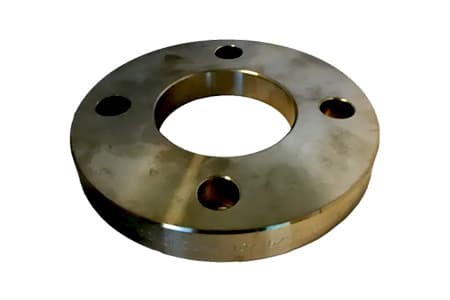

Swivel flange, flange type EN 1092-01/02 (previous version DIN 2576), made of AISI 304 stainless steel. The flange is available in a wide range of sizes: from DN 15 to DN 150. Standard PN 10/40 or PN 10/16, depending on the size.

IMPORTANT: This collar is intended for connection to the thick version of the TW FRS hose ends.

Material: stainless steel SS 304

Norm: EN 1092-01/04

Size chart

Variant

Size

Material

Nr. of holes

Pitch circle

Outside flange

Work Pressure - BAR [20°C]

Inside flange

Trade unit

Variant

Size

Material

Nr. of holes

Pitch circle

Outside flange

Work Pressure - BAR [20°C]

Inside flange

Trade unit

Variant

2504

Size

DN 15

Material

SS 304

Nr. of holes

4

Pitch circle

65

Outside flange

95

Work Pressure - BAR [20°C]

PN 10/40

Inside flange

35

Trade unit

pcs

Variant

2505

Size

DN 20

Material

SS 304

Nr. of holes

4

Pitch circle

75

Outside flange

105

Work Pressure - BAR [20°C]

PN 10/40

Inside flange

42

Trade unit

pcs

Variant

2506

Size

DN 25

Material

SS 304

Nr. of holes

4

Pitch circle

85

Outside flange

115

Work Pressure - BAR [20°C]

PN 10/40

Inside flange

49

Trade unit

pcs

Variant

2507

Size

DN 32

Material

SS 304

Nr. of holes

4

Pitch circle

100

Outside flange

140

Work Pressure - BAR [20°C]

PN 10/40

Inside flange

59

Trade unit

pcs

Variant

2508

Size

DN 40

Material

SS 304

Nr. of holes

4

Pitch circle

110

Outside flange

150

Work Pressure - BAR [20°C]

PN 10/40

Inside flange

67

Trade unit

pcs

Variant

2509

Size

DN 50

Material

SS 304

Nr. of holes

4

Pitch circle

125

Outside flange

165

Work Pressure - BAR [20°C]

PN 10/40

Inside flange

77

Trade unit

pcs

Variant

2510

Size

DN 65

Material

SS 304

Nr. of holes

8

Pitch circle

145

Outside flange

185

Work Pressure - BAR [20°C]

PN 10/16

Inside flange

96

Trade unit

pcs

Variant

2511

Size

DN 80

Material

SS 304

Nr. of holes

8

Pitch circle

160

Outside flange

200

Work Pressure - BAR [20°C]

PN 10/16

Inside flange

108

Trade unit

pcs

Variant

2512

Size

DN 100

Material

SS 304

Nr. of holes

8

Pitch circle

180

Outside flange

220

Work Pressure - BAR [20°C]

PN 10/16

Inside flange

134

Trade unit

pcs

Variant

2513

Size

DN 150

Material

SS 304

Nr. of holes

8

Pitch circle

240

Outside flange

285

Work Pressure - BAR [20°C]

PN 10/16

Inside flange

188

Trade unit

pcs

FLANGE PLATE EN 1092-01/04 - SS 304

from 130.79zł
vat excluded

intereurope shipping

Shipping all over the country

high quality

Top quality product

call us

If you have any questions, write to us

sku

SKU: 252

stock
Available
