FLANGE PLATE EN 1092-01/04 - GALVANIZED STEEL

FLANGE PLATE EN 1092-01_04 GALVANIZED STEEL INPART24
MATERIAL: GALVANIZED STEEL | SIZE RANGE: DN 15 - DN 200 | THICK VERSION

Product params

Material

galvanized steel

Norm

EN 1092-01/04

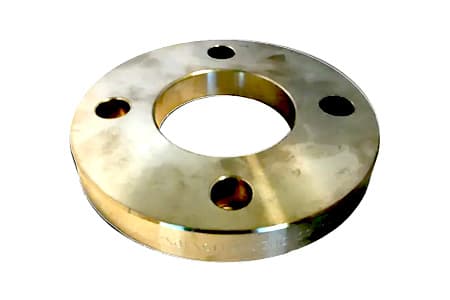

Swivel flange, flange type EN 1092-01/04 (previous version DIN 2576), made of galvanized steel. The flange is available in a wide range of sizes: from DN 15 to DN 200. Standard PN 10/40 or PN 10/16, depending on the size.

IMPORTANT: This collar is intended for connection to the thick version of the TW FRS hose ends.

Material: galvanized steel

Norm: EN 1092-01/04

Size chart

id

Variant

Size

Material

No of holes

Pitch circle

Outside flange

Work Pressure - BAR [20°C]

Inside flange

Variant
Size
Material
No of holes
Pitch circle
Outside flange
Work Pressure - BAR [20°C]
Inside flange
Availability
VariantFP04015GI
SizeDN 15
MaterialGalvanized steel
No of holes4
Pitch circle65
Outside flange95
Work Pressure - BAR [20°C]PN 10/40
Inside flange35
Availability
🔍
VariantFP04020GI
SizeDN 20
MaterialGalvanized steel
No of holes4
Pitch circle75
Outside flange105
Work Pressure - BAR [20°C]PN 10/40
Inside flange42
Availability
🔍
VariantFP04025GI
SizeDN 25
MaterialGalvanized steel
No of holes4
Pitch circle85
Outside flange115
Work Pressure - BAR [20°C]PN 10/40
Inside flange49
Availability
🔍
VariantFP04032GI
SizeDN 32
MaterialGalvanized steel
No of holes4
Pitch circle100
Outside flange140
Work Pressure - BAR [20°C]PN 10/40
Inside flange59
Availability
🔍
VariantFP04040GI
SizeDN 40
MaterialGalvanized steel
No of holes4
Pitch circle110
Outside flange150
Work Pressure - BAR [20°C]PN 10/40
Inside flange67
Availability
🔍
VariantFP04050GI
SizeDN 50
MaterialGalvanized steel
No of holes4
Pitch circle125
Outside flange165
Work Pressure - BAR [20°C]PN 10/40
Inside flange77
Availability
🔍
VariantFP04065GI
SizeDN 65
MaterialGalvanized steel
No of holes8
Pitch circle145
Outside flange185
Work Pressure - BAR [20°C]PN 10/16
Inside flange96
Availability
🔍
VariantFP04080GI
SizeDN 80
MaterialGalvanized steel
No of holes8
Pitch circle160
Outside flange200
Work Pressure - BAR [20°C]PN 10/16
Inside flange108
Availability
🔍
VariantFP04100GI
SizeDN 100
MaterialGalvanized steel
No of holes8
Pitch circle180
Outside flange220
Work Pressure - BAR [20°C]PN 10/16
Inside flange134
Availability
🔍
VariantFP04125GI
SizeDN 125
MaterialGalvanized steel
No of holes8
Pitch circle210
Outside flange250
Work Pressure - BAR [20°C]PN 10/16
Inside flange
Availability
🔍
VariantFP04150GI
SizeDN 150
MaterialGalvanized steel
No of holes8
Pitch circle240
Outside flange285
Work Pressure - BAR [20°C]PN 10/16
Inside flange188
Availability
🔍
VariantFP04200GI
SizeDN 200
MaterialGalvanized steel
No of holes8
Pitch circle295
Outside flange340
Work Pressure - BAR [20°C]PN 10
Inside flange240
Availability
🔍
VariantFP041200GI
SizeDN 200
MaterialGalvanized steel
No of holes12
Pitch circle295
Outside flange340
Work Pressure - BAR [20°C]PN 16
Inside flange240
Availability
🔍
