STEAM FEMALE COUPLING - SS 316

STEAM COUPLING FEMALE THREAD STAINLESS STEEL SS 316 WITH HOSETAIL INPART24
MATERIAL: AISI 316 | THREAT: INNER | RETAINING COLLAR | HOSETAIL FOR SAFETY CLAMPS DIN 2826

Product params

Material

SS

Work pressure

18 bar

Threat

inner

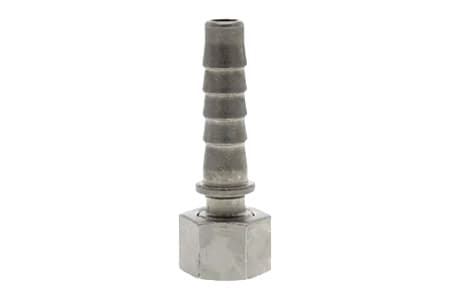

Female steam coupling with serrated tail. Made of AISI 316 stainless steel.

We recommend that thge connector be mounted in the hose with dedicated safety clamp. Improperly selected clamps may damage the hose during operation. Also, do not install clamp while the hose is in operation.

Material: stainless steel AISI 316

Threat: inner

Work pressure: 18 bar

Size chart

id

Variant

Material

Work Pressure - BAR [20°C]

Thread connection

Hosetail [mm]

Variant
Material
Work Pressure - BAR [20°C]
Thread connection
Hosetail [mm]
Availability
VariantSFC015SS
MaterialSS 316
Work Pressure - BAR [20°C]18
Thread connection1/2" Female
Hosetail [mm]12
Availability
🔍
VariantSFC020SS
MaterialSS 316
Work Pressure - BAR [20°C]18
Thread connection3/4" Female
Hosetail [mm]19
Availability
🔍
VariantSFC025SS
MaterialSS 316
Work Pressure - BAR [20°C]18
Thread connection1" Female
Hosetail [mm]25
Availability
🔍
VariantSFC032SS
MaterialSS 316
Work Pressure - BAR [20°C]18
Thread connection1 1/4" Female
Hosetail [mm]32
Availability
🔍
VariantSFC040SS
MaterialSS 316
Work Pressure - BAR [20°C]18
Thread connection1 1/2" Female
Hosetail [mm]38
Availability
🔍
VariantSFC050SS
MaterialSS 316
Work Pressure - BAR [20°C]18
Thread connection2" Female
Hosetail [mm]50
Availability
🔍
