STEAM COUPLING WITH A SWIVEL FLANGE - SS

STEAM COUPLING SWIVEL FLANGE STAINLESS STEEL WITH HOSETAIL INPART24
MATERIAL: AISI 316 | SWIVEL FLANGE | HOSETAIL FOR SAFETY CLAMPS DIN 2826

Product params

Material

SS

Work pressure

18 bar

Flange

swivel

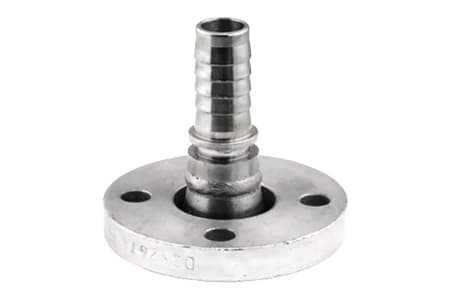

Steam coupling, swivel flange. Made of AISI 316 stainless steel.

We recommend that the connector be mounted in the hose with dedicated safety clamp. Improperly selected clamps may damage the hose during operation. Also, do not install clamp while the hose is in operation.

Material: stainless steel AISI 316

Flange: swivel

Work pressure: 18 bar

Size chart

id

Variant

Material

Work Pressure - BAR [20°C]

Hosetail [mm]

Variant
Material
Work Pressure - BAR [20°C]
Hosetail [mm]
Availability
VariantSFS025SS
MaterialSS
Work Pressure - BAR [20°C]16
Hosetail [mm]25
Availability
🔍
VariantSFS032SS
MaterialSS
Work Pressure - BAR [20°C]16
Hosetail [mm]32
Availability
🔍
VariantSFS050SS
MaterialSS
Work Pressure - BAR [20°C]16
Hosetail [mm]50
Availability
🔍

STEAM COUPLING WITH A SWIVEL FLANGE - SS

from 1100.59zł
vat excluded

stock
Availabledropdown
intereurope shipping

Shipping all over Europe

high quality

Top quality product

sku

SKU: 260
