PATCHER OHM SD HOSE

ABRASION RESISTANT FLEXIBLE RUBBER HOSE TO SAND GRAVEL PATCHER OHM SD INPART24
Suction and discharge hose | Reinforcement: strong textile reinforcement | Inner Wall: NR | Outer Wall: NR | Working pressure: 5 BAR | Temperature Range: -25 to +80 °C

Product params

Working Pressure [bar]

5

Burst Pressure [bar]

15

Inner Wall

NR

Conductivity

Yes

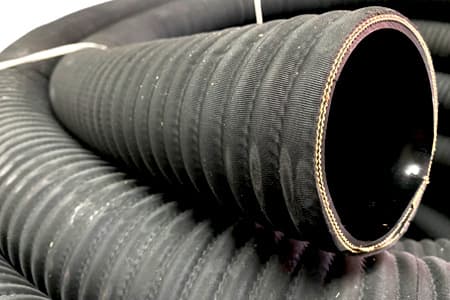

Exceptionally flexible, highly abrasion resistant hose for the transfer of sand, gravel, and other abrasive materials. It performs exceptionally well in the role of a hose for road repair crews (known as a 'patcher'). Thanks to its high flexibility and reduced weight, it is easier to operate. Its very durable construction ensures safe usage and a long service life. It remains resistant to oily environments and challenging external conditions, including UV radiation. The hose is fully conductive.

Inner Wall: NR

Outer Wall: NR

Reinforcement: Strong textile reinforcement

Working pressure: 5 BAR

Conductivity: R<10⁶ Ω, R<10⁹ Ω through the wall

Temperature Range: -25°C to +80°C

Norms: DIN ISO 4649 <65 mm3

Size chart

Variant

Inner Diameter [mm]

Outer Diameter [mm]

Work Pressure - BAR [20°C]

Burst Pressure - BAR [20°C]

Bending Radius [mm]

Coil [mtr]

Weight [kg/mtr]

Trade unit

Variant

Inner Diameter [mm]

Outer Diameter [mm]

Work Pressure - BAR [20°C]

Burst Pressure - BAR [20°C]

Bending Radius [mm]

Coil [mtr]

Weight [kg/mtr]

Trade unit

Variant

3301

Inner Diameter [mm]

51

Outer Diameter [mm]

62

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Bending Radius [mm]

100

Coil [mtr]

61

Weight [kg/mtr]

1,31

Trade unit

Meter

Variant

3312

Inner Diameter [mm]

51

Outer Diameter [mm]

62

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Bending Radius [mm]

100

Coil [mtr]

61

Weight [kg/mtr]

1,31

Trade unit

Coil 61mtr

Variant

3302

Inner Diameter [mm]

63

Outer Diameter [mm]

75

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Bending Radius [mm]

125

Coil [mtr]

61

Weight [kg/mtr]

1,71

Trade unit

Meter

Variant

3311

Inner Diameter [mm]

63

Outer Diameter [mm]

75

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Bending Radius [mm]

125

Coil [mtr]

61

Weight [kg/mtr]

1,71

Trade unit

Coil 61mtr

Variant

3303

Inner Diameter [mm]

76

Outer Diameter [mm]

92

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Bending Radius [mm]

150

Coil [mtr]

61

Weight [kg/mtr]

2,08

Trade unit

Meter

Variant

3310

Inner Diameter [mm]

76

Outer Diameter [mm]

92

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Bending Radius [mm]

150

Coil [mtr]

61

Weight [kg/mtr]

2,08

Trade unit

Coil 61mtr

Variant

3304

Inner Diameter [mm]

102

Outer Diameter [mm]

117

Work Pressure - BAR [20°C]

6

Burst Pressure - BAR [20°C]

18

Bending Radius [mm]

150

Coil [mtr]

40

Weight [kg/mtr]

2,85

Trade unit

Meter

Variant

3309

Inner Diameter [mm]

102

Outer Diameter [mm]

117

Work Pressure - BAR [20°C]

6

Burst Pressure - BAR [20°C]

18

Bending Radius [mm]

150

Coil [mtr]

40

Weight [kg/mtr]

2,85

Trade unit

Coil 40mtr

Variant

3305

Inner Diameter [mm]

127

Outer Diameter [mm]

142

Work Pressure - BAR [20°C]

6

Burst Pressure - BAR [20°C]

16

Bending Radius [mm]

190

Coil [mtr]

40

Weight [kg/mtr]

3,78

Trade unit

Meter

Variant

3308

Inner Diameter [mm]

127

Outer Diameter [mm]

142

Work Pressure - BAR [20°C]

6

Burst Pressure - BAR [20°C]

16

Bending Radius [mm]

190

Coil [mtr]

40

Weight [kg/mtr]

3,78

Trade unit

Coil 40mtr

Variant

3306

Inner Diameter [mm]

152

Outer Diameter [mm]

168

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Bending Radius [mm]

300

Coil [mtr]

40

Weight [kg/mtr]

6,1

Trade unit

Meter

Variant

3307

Inner Diameter [mm]

152

Outer Diameter [mm]

168

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Bending Radius [mm]

300

Coil [mtr]

40

Weight [kg/mtr]

6,1

Trade unit

Coil 40mtr
