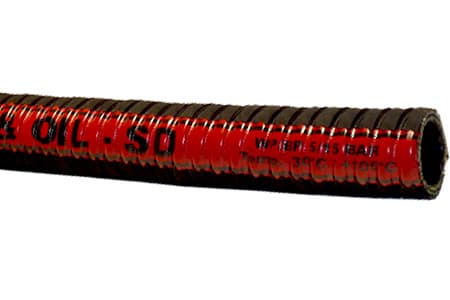

FLEX-OIL 5 NBR SD HOSE

FLEXILBLE RUBBER HOSE FOR PETROLEUM OILS FUELS FLEX OIL 5 NBR SD INPART24
Suction and discharge hose | Reinforcement: textile reinforcement, steel spiral | Inner Wall: NBR | Outer Wall: NBR | Working pressure: 5 BAR | Temperature Range: -30 to +100°C

Product params

Working Pressure [bar]

5

Burst Pressure [bar]

15

Inner Wall

NBR

Conductivity

No

Highly flexible rubber hose for the transfer of petroleum-based fluids with up to 50% aromatics content, as well as oils and fuels. The hose's external wall is designed for maximum flexibility, making it ideal for use in tight installations where flexibility is a key factor. Additionally, it offers high-temperature resistance for the transported fluids.

Inner wall: NBR

Outer wall: NBR

Reinforcement: Strong textile reinforcement, steel spiral

Working pressure: 5 BAR

Temperature Range: -30°C to +100°C

Size chart

Variant

Inner Diameter [mm]

Outer Diameter [mm]

Work Pressure - BAR [20°C]

Burst Pressure - BAR [20°C]

Coil [mtr]

Trade unit

Variant

Inner Diameter [mm]

Outer Diameter [mm]

Work Pressure - BAR [20°C]

Burst Pressure - BAR [20°C]

Coil [mtr]

Trade unit

Variant

380

Inner Diameter [mm]

16

Outer Diameter [mm]

26

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

20

Trade unit

Meter

Variant

413

Inner Diameter [mm]

16

Outer Diameter [mm]

26

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

20

Trade unit

Coil 20mtr

Variant

381

Inner Diameter [mm]

20

Outer Diameter [mm]

30

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

20

Trade unit

Meter

Variant

412

Inner Diameter [mm]

20

Outer Diameter [mm]

30

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

20

Trade unit

Coil 20mtr

Variant

382

Inner Diameter [mm]

22

Outer Diameter [mm]

32

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

20

Trade unit

Meter

Variant

411

Inner Diameter [mm]

22

Outer Diameter [mm]

32

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

20

Trade unit

Coil 20mtr

Variant

383

Inner Diameter [mm]

25

Outer Diameter [mm]

35

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

20

Trade unit

Meter

Variant

410

Inner Diameter [mm]

25

Outer Diameter [mm]

35

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

20

Trade unit

Coil 20mtr

Variant

384

Inner Diameter [mm]

28

Outer Diameter [mm]

38

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

20

Trade unit

Meter

Variant

409

Inner Diameter [mm]

28

Outer Diameter [mm]

38

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

20

Trade unit

Coil 20mtr

Variant

385

Inner Diameter [mm]

30

Outer Diameter [mm]

40

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

20

Trade unit

Meter

Variant

408

Inner Diameter [mm]

30

Outer Diameter [mm]

40

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

20

Trade unit

Coil 20mtr

Variant

386

Inner Diameter [mm]

32

Outer Diameter [mm]

43

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

20

Trade unit

Meter

Variant

407

Inner Diameter [mm]

32

Outer Diameter [mm]

43

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

20

Trade unit

Coil 20mtr

Variant

387

Inner Diameter [mm]

35

Outer Diameter [mm]

46

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

20

Trade unit

Meter

Variant

406

Inner Diameter [mm]

35

Outer Diameter [mm]

46

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

20

Trade unit

Coil 20mtr

Variant

388

Inner Diameter [mm]

38

Outer Diameter [mm]

49

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

20

Trade unit

Meter

Variant

405

Inner Diameter [mm]

38

Outer Diameter [mm]

49

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

20

Trade unit

Coil 20mtr

Variant

389

Inner Diameter [mm]

40

Outer Diameter [mm]

51

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

20

Trade unit

Meter

Variant

404

Inner Diameter [mm]

40

Outer Diameter [mm]

51

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

20

Trade unit

Coil 20mtr

Variant

390

Inner Diameter [mm]

42

Outer Diameter [mm]

53

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

20

Trade unit

Meter

Variant

403

Inner Diameter [mm]

42

Outer Diameter [mm]

53

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

20

Trade unit

Coil 20mtr

Variant

391

Inner Diameter [mm]

45

Outer Diameter [mm]

56

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

20

Trade unit

Meter

Variant

402

Inner Diameter [mm]

45

Outer Diameter [mm]

56

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

20

Trade unit

Coil 20mtr

Variant

392

Inner Diameter [mm]

48

Outer Diameter [mm]

59

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

20

Trade unit

Meter

Variant

401

Inner Diameter [mm]

48

Outer Diameter [mm]

59

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

20

Trade unit

Coil 20mtr

Variant

393

Inner Diameter [mm]

51

Outer Diameter [mm]

63

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

20

Trade unit

Meter

Variant

400

Inner Diameter [mm]

51

Outer Diameter [mm]

63

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

20

Trade unit

Coil 20mtr

Variant

396

Inner Diameter [mm]

63

Outer Diameter [mm]

75,5

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

40

Trade unit

Meter

Variant

397

Inner Diameter [mm]

63

Outer Diameter [mm]

75,5

Work Pressure - BAR [20°C]

5

Burst Pressure - BAR [20°C]

15

Coil [mtr]

40

Trade unit

Coil 40mtr
