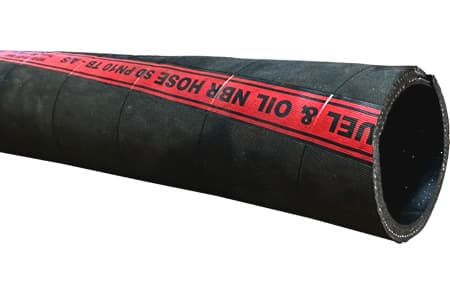

MULTI-OIL 10 NBR SD HOSE
Suction and discharge hose | Reinforcement: Strong textile reinforcement, steel spiral | Inner wall: NBR | Outer wall: NBR | Working pressure: 10 BAR | Temperature Range: -40°C to +90°C
Product params
Working Pressure [bar]
10
Burst Pressure [bar]
30
Inner Wall
NBR
Conductivity
No
Rubber hose for oils and fuels, reinforced with a steel spiral and featuring a very good flexibility coefficient. It is suitable for applications involving the transfer of hydraulic oils, lubricants, fuels, and other petroleum-based fluids with up to 50% aromatics content. The outer wall is resistant to abrasion and harsh environmental conditions, including very low temperatures.
Inner wall: NBR
Outer wall: NBR
Reinforcement: Strong textile reinforcement, steel spiral
Working pressure: 10 BAR
Temperature Range: -40°C to +90°C
Size chart
id
Variant
Inner Diameter [mm]
Outer Diameter [mm]
Work Pressure - BAR [20°C]
Burst Pressure - BAR [20°C]
Coil [mtr]
Variant
Inner Diameter [mm]
Outer Diameter [mm]
Work Pressure - BAR [20°C]
Burst Pressure - BAR [20°C]
Coil [mtr]
Availability
Variant71001929
Inner Diameter [mm]19
Outer Diameter [mm]29
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]61
Availability
🔍
Variant71002536
Inner Diameter [mm]25
Outer Diameter [mm]36
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]61
Availability
🔍
Variant71003243
Inner Diameter [mm]32
Outer Diameter [mm]43
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]61
Availability
🔍
Variant71003849
Inner Diameter [mm]38
Outer Diameter [mm]49
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]61
Availability
🔍
Variant71004558
Inner Diameter [mm]45
Outer Diameter [mm]55
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]40
Availability
🔍
Variant71005163
Inner Diameter [mm]51
Outer Diameter [mm]63
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]61
Availability
🔍
Variant71006074
Inner Diameter [mm]60
Outer Diameter [mm]72
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]40
Availability
🔍
