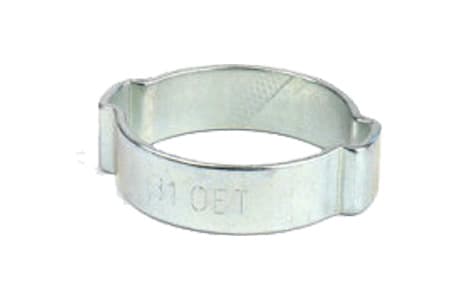

HOSE CLAMP TWO-EAR W1
MATERIAL: GALVANIZED STEEL | NORM: DIN 1.0338
Product params
Material
galvanized steel
An economical clamp with a simpe design and operation, tightened using pliers. Disposalbe - after pressing the ears, it will not return to its original shape.
Reccomended for low-pressure air hoses and water hoses.
The clamp range is selected based on outer diameter of the hose.
Size chart
id
Variant
Material
Band width [mm]
Clamp range [mm]
Variant
Material
Band width [mm]
Clamp range [mm]
Availability
Variant2EW103
MaterialGalvanized steel
Band width [mm]5
Clamp range [mm]3-5
Availability
🔍
Variant2EW1035
MaterialGalvanized steel
Band width [mm]5
Clamp range [mm]3,5-4,5
Availability
🔍
Variant2EW105
MaterialGalvanized steel
Band width [mm]6
Clamp range [mm]5-7
Availability
🔍
Variant2EW107
MaterialGalvanized steel
Band width [mm]7
Clamp range [mm]7-9
Availability
🔍
Variant2EW108
MaterialGalvanized steel
Band width [mm]7
Clamp range [mm]8-11
Availability
🔍
Variant2EW109
MaterialGalvanized steel
Band width [mm]7
Clamp range [mm]9-11
Availability
🔍
Variant2EW111
MaterialGalvanized steel
Band width [mm]7
Clamp range [mm]11-13
Availability
🔍
Variant2EW113
MaterialGalvanized steel
Band width [mm]7
Clamp range [mm]13-15
Availability
🔍
Variant2EW115
MaterialGalvanized steel
Band width [mm]8
Clamp range [mm]15-17
Availability
🔍
Variant2EW1115
MaterialGalvanized steel
Band width [mm]8
Clamp range [mm]15-18
Availability
🔍
Variant2EW116
MaterialGalvanized steel
Band width [mm]8
Clamp range [mm]16-19
Availability
🔍
Variant2EW117
MaterialGalvanized steel
Band width [mm]8
Clamp range [mm]17-20
Availability
🔍
Variant2EW119
MaterialGalvanized steel
Band width [mm]9
Clamp range [mm]19-22
Availability
🔍
Variant2EW120
MaterialGalvanized steel
Band width [mm]9
Clamp range [mm]20-23
Availability
🔍
Variant2EW122
MaterialGalvanized steel
Band width [mm]10
Clamp range [mm]22-25
Availability
🔍
Variant2EW123
MaterialGalvanized steel
Band width [mm]10
Clamp range [mm]23-27
Availability
🔍
Variant2EW125
MaterialGalvanized steel
Band width [mm]10
Clamp range [mm]25-28
Availability
🔍
Variant2EW127
MaterialGalvanized steel
Band width [mm]10
Clamp range [mm]27-31
Availability
🔍
Variant2EW128
MaterialGalvanized steel
Band width [mm]10
Clamp range [mm]28-31
Availability
🔍
Variant2EW131
MaterialGalvanized steel
Band width [mm]10
Clamp range [mm]31-34
Availability
🔍
Variant2EW134
MaterialGalvanized steel
Band width [mm]10
Clamp range [mm]34-37
Availability
🔍
Variant2EW137
MaterialGalvanized steel
Band width [mm]10
Clamp range [mm]37-40
Availability
🔍
Variant2EW140
MaterialGalvanized steel
Band width [mm]10
Clamp range [mm]40-43
Availability
🔍
Variant2EW143
MaterialGalvanized steel
Band width [mm]10
Clamp range [mm]43-46
Availability
🔍
