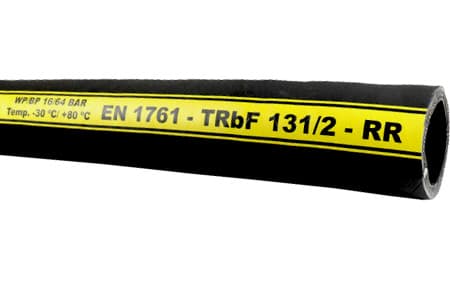

CARBURI 16 NBR OHM SD HOSE

HEAVY RUBBER HOSE FOR PETROLEUM OIL FUELS CARBURI 16 BAR NBR OHM SD INPART24
Suction and discharge hose | Reinforcement: Two textile reinforcements, steel spiral | Inner wall: NBR | Outer wall: CR | Working pressure: 16 BAR | Temperature range: -40°C to +70°C

Product params

Working Pressure [bar]

16

Burst Pressure [bar]

64

Inner Wall

NBR

Conductivity

Yes

A robust industrial hose designed for the transfer of fuels, oils, and petroleum products with up to 50% aromatics concentration. It is suitable for operation in very harsh conditions under heavy loads. This hose is used in the petrochemical industry as a transfer hose in fixed installations, in rail transport, and tank trucks.

The hose's outer wall is made of CR rubber, which is chloroprene rubber, resistant to challenging external conditions (UV, ozone, aging processes), water-based solutions, mineral oils, alcohols, and glycols. According to TRbF 131/2 norms, the outer cover is flame-resistant. The hose is fully conductive, i.e., it meets the requirements for industrial cleaning with electrical resistance values of R<10⁶ Ω and R<10⁹ Ω through the wall.

Inner wall: NBR

Outer wall: CR

Reinforcement: Two textile reinforcements, steel spiral

Working pressure: 16 BAR

Temperature range: -40°C to +70°C

Norms: EN 12115:2011, TRbF 131/2, EN 1761

Size chart

Variant

Inner Diameter [mm]

Outer Diameter [mm]

Work Pressure - BAR [20°C]

Burst Pressure - BAR [20°C]

Bending Radius [mm]

Coil [mtr]

Trade unit

Variant

Inner Diameter [mm]

Outer Diameter [mm]

Work Pressure - BAR [20°C]

Burst Pressure - BAR [20°C]

Bending Radius [mm]

Coil [mtr]

Trade unit

Variant

448

Inner Diameter [mm]

19

Outer Diameter [mm]

31

Work Pressure - BAR [20°C]

16

Burst Pressure - BAR [20°C]

64

Bending Radius [mm]

114

Coil [mtr]

61

Trade unit

Meter

Variant

457

Inner Diameter [mm]

19

Outer Diameter [mm]

31

Work Pressure - BAR [20°C]

16

Burst Pressure - BAR [20°C]

64

Bending Radius [mm]

114

Coil [mtr]

61

Trade unit

Coil 61mtr

Variant

449

Inner Diameter [mm]

25

Outer Diameter [mm]

37

Work Pressure - BAR [20°C]

16

Burst Pressure - BAR [20°C]

64

Bending Radius [mm]

150

Coil [mtr]

40

Trade unit

Meter

Variant

458

Inner Diameter [mm]

25

Outer Diameter [mm]

37

Work Pressure - BAR [20°C]

16

Burst Pressure - BAR [20°C]

64

Bending Radius [mm]

150

Coil [mtr]

40

Trade unit

Coil 40mtr

Variant

450

Inner Diameter [mm]

32

Outer Diameter [mm]

44

Work Pressure - BAR [20°C]

16

Burst Pressure - BAR [20°C]

64

Bending Radius [mm]

175

Coil [mtr]

40

Trade unit

Meter

Variant

459

Inner Diameter [mm]

32

Outer Diameter [mm]

44

Work Pressure - BAR [20°C]

16

Burst Pressure - BAR [20°C]

64

Bending Radius [mm]

175

Coil [mtr]

40

Trade unit

Coil 40mtr

Variant

451

Inner Diameter [mm]

38

Outer Diameter [mm]

51

Work Pressure - BAR [20°C]

16

Burst Pressure - BAR [20°C]

64

Bending Radius [mm]

225

Coil [mtr]

40

Trade unit

Meter

Variant

460

Inner Diameter [mm]

38

Outer Diameter [mm]

51

Work Pressure - BAR [20°C]

16

Burst Pressure - BAR [20°C]

64

Bending Radius [mm]

225

Coil [mtr]

40

Trade unit

Coil 40mtr

Variant

452

Inner Diameter [mm]

51

Outer Diameter [mm]

67

Work Pressure - BAR [20°C]

16

Burst Pressure - BAR [20°C]

64

Bending Radius [mm]

275

Coil [mtr]

40

Trade unit

Meter

Variant

461

Inner Diameter [mm]

51

Outer Diameter [mm]

67

Work Pressure - BAR [20°C]

16

Burst Pressure - BAR [20°C]

64

Bending Radius [mm]

275

Coil [mtr]

40

Trade unit

Coil 40mtr

Variant

453

Inner Diameter [mm]

63,5

Outer Diameter [mm]

79

Work Pressure - BAR [20°C]

16

Burst Pressure - BAR [20°C]

64

Bending Radius [mm]

300

Coil [mtr]

61

Trade unit

Meter

Variant

462

Inner Diameter [mm]

63,5

Outer Diameter [mm]

79

Work Pressure - BAR [20°C]

16

Burst Pressure - BAR [20°C]

64

Bending Radius [mm]

300

Coil [mtr]

61

Trade unit

Coil 61mtr

Variant

454

Inner Diameter [mm]

75

Outer Diameter [mm]

91

Work Pressure - BAR [20°C]

16

Burst Pressure - BAR [20°C]

64

Bending Radius [mm]

350

Coil [mtr]

40

Trade unit

Meter

Variant

463

Inner Diameter [mm]

75

Outer Diameter [mm]

91

Work Pressure - BAR [20°C]

16

Burst Pressure - BAR [20°C]

64

Bending Radius [mm]

350

Coil [mtr]

40

Trade unit

Coil 40mtr

Variant

455

Inner Diameter [mm]

102

Outer Diameter [mm]

118

Work Pressure - BAR [20°C]

16

Burst Pressure - BAR [20°C]

64

Bending Radius [mm]

450

Coil [mtr]

61

Trade unit

Meter

Variant

464

Inner Diameter [mm]

102

Outer Diameter [mm]

118

Work Pressure - BAR [20°C]

16

Burst Pressure - BAR [20°C]

64

Bending Radius [mm]

450

Coil [mtr]

61

Trade unit

Coil 61mtr

Variant

456

Inner Diameter [mm]

152

Outer Diameter [mm]

170

Work Pressure - BAR [20°C]

16

Burst Pressure - BAR [20°C]

64

Bending Radius [mm]

608

Coil [mtr]

20

Trade unit

Meter

Variant

465

Inner Diameter [mm]

152

Outer Diameter [mm]

170

Work Pressure - BAR [20°C]

16

Burst Pressure - BAR [20°C]

64

Bending Radius [mm]

608

Coil [mtr]

20

Trade unit

Coil 20mtr

CARBURI 16 NBR OHM SD HOSE

from 74.79zł
vat excluded

intereurope shipping

Shipping all over the country

high quality

Top quality product

call us

If you have any questions, write to us

sku

SKU: 31

stock
Available
