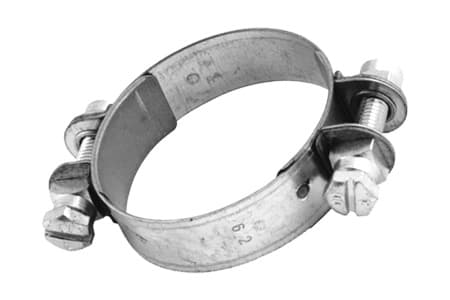

DOUBLE BOLT HOSE CLAMP HEAVY W1
MATERIAL: GALVANIZED STEEL | NORM: DIN 1.0338
Product params
Material
galvanized steel
Heavy-duty, two-screw clamp with double strap and rolled edges. Guaranteed tight connection of the hose with the coupling thanks to two screws.
Recommended for reinforced hoses with a thick wall.
Size chart
Variant
Material
Band width [mm]
Clamp range [mm]
Variant
Material
Band width [mm]
Clamp range [mm]
Availability
Variant2PW1033
MaterialGalvanized steel
Band width [mm]20
Clamp range [mm]33-39
Availability
🔍
Variant2PW1037
MaterialGalvanized steel
Band width [mm]20
Clamp range [mm]37-43
Availability
🔍
Variant2PW1043
MaterialGalvanized steel
Band width [mm]20
Clamp range [mm]43-49
Availability
🔍
Variant2PW1049
MaterialGalvanized steel
Band width [mm]20
Clamp range [mm]49-55
Availability
🔍
Variant2PW1055
MaterialGalvanized steel
Band width [mm]20
Clamp range [mm]55-63
Availability
🔍
Variant2PW1061
MaterialGalvanized steel
Band width [mm]20
Clamp range [mm]61-69
Availability
🔍
Variant2PW1067
MaterialGalvanized steel
Band width [mm]20
Clamp range [mm]67-75
Availability
🔍
Variant2PW1073
MaterialGalvanized steel
Band width [mm]20
Clamp range [mm]73-81
Availability
🔍
Variant2PW1079
MaterialGalvanized steel
Band width [mm]20
Clamp range [mm]79-87
Availability
🔍
Variant2PW1085
MaterialGalvanized steel
Band width [mm]20
Clamp range [mm]85-93
Availability
🔍
Variant2PW1089
MaterialGalvanized steel
Band width [mm]20
Clamp range [mm]89-97
Availability
🔍
Variant2PW1095
MaterialGalvanized steel
Band width [mm]20
Clamp range [mm]95-103
Availability
🔍
Variant2PW1096
MaterialGalvanized steel
Band width [mm]25
Clamp range [mm]96-106
Availability
🔍
Variant2PW1097
MaterialGalvanized steel
Band width [mm]25
Clamp range [mm]97-105
Availability
🔍
Variant2PW1102
MaterialGalvanized steel
Band width [mm]25
Clamp range [mm]102-112
Availability
🔍
Variant2PW1106
MaterialGalvanized steel
Band width [mm]25
Clamp range [mm]106-116
Availability
🔍
Variant2PW1112
MaterialGalvanized steel
Band width [mm]25
Clamp range [mm]112-122
Availability
🔍
Variant2PW1118
MaterialGalvanized steel
Band width [mm]25
Clamp range [mm]118-128
Availability
🔍
Variant2PW1126
MaterialGalvanized steel
Band width [mm]25
Clamp range [mm]126-136
Availability
🔍
Variant2PW1136
MaterialGalvanized steel
Band width [mm]25
Clamp range [mm]136-146
Availability
🔍
Variant2PW1146
MaterialGalvanized steel
Band width [mm]25
Clamp range [mm]146-156
Availability
🔍
Variant2PW1156
MaterialGalvanized steel
Band width [mm]25
Clamp range [mm]156-166
Availability
🔍
Variant2PW1166
MaterialGalvanized steel
Band width [mm]25
Clamp range [mm]166-176
Availability
🔍
Variant2PW1176
MaterialGalvanized steel
Band width [mm]25
Clamp range [mm]176-186
Availability
🔍
Variant2PW1186
MaterialGalvanized steel
Band width [mm]25
Clamp range [mm]186-196
Availability
🔍
Variant2PW1208
MaterialGalvanized steel
Band width [mm]25
Clamp range [mm]208-218
Availability
🔍
Variant2PW1218
MaterialGalvanized steel
Band width [mm]25
Clamp range [mm]218-228
Availability
🔍
Variant2PW1228
MaterialGalvanized steel
Band width [mm]25
Clamp range [mm]228-238
Availability
🔍
Variant2PW1238
MaterialGalvanized steel
Band width [mm]25
Clamp range [mm]238-248
Availability
🔍
