STEAM SAFETY CLAMP EN 14423 - SS 316
MATERIAL: AISI 316 | BOLT MATERIAL: AISI 304 | NORMS: EN 14423, DIN 2826
Product params
Material
SS
Bolt material
SS
Norm
EN 14423
Norm
DIN 2826

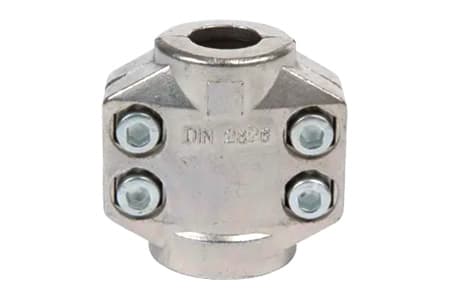

Steam safety clamp made of AISI 316 stainless steel.
Material: AISI 316
Bolt material: AISI 304
Norms: EN 14423, DIN 2826
Size chart
id
Variant
Material
Clamp range [mm]
Bolt
Mat. bolt
Hosetail [mm]
Work pressure - BAR [20°C]
Coupling size [mm]
Height [mm]
Weight [g]
Variant
Material
Clamp range [mm]
Bolt
Mat. bolt
Hosetail [mm]
Work pressure - BAR [20°C]
Coupling size [mm]
Height [mm]
Weight [g]
Availability
VariantSSC013SS
MaterialSS 316
Clamp range [mm]24-26
Bolt4 x M6
Mat. boltSS 304
Hosetail [mm]13
Work pressure - BAR [20°C]100
Coupling size [mm]16 x 6
Height [mm]65
Weight [g]310
Availability
🔍
VariantSSC019SS
MaterialSS 316
Clamp range [mm]32-34
Bolt4 x M8
Mat. boltSS 304
Hosetail [mm]19
Work pressure - BAR [20°C]100
Coupling size [mm]19 x 7
Height [mm]68
Weight [g]460
Availability
🔍
VariantSSC025SS
MaterialSS 316
Clamp range [mm]39-41
Bolt4 x M8
Mat. boltSS 304
Hosetail [mm]25
Work pressure - BAR [20°C]100
Coupling size [mm]25 x 7,5
Height [mm]65
Weight [g]530
Availability
🔍
VariantSSC032SS
MaterialSS 316
Clamp range [mm]47-50
Bolt4 x M8
Mat. boltSS 304
Hosetail [mm]32
Work pressure - BAR [20°C]100
Coupling size [mm]32 x 8
Height [mm]75
Weight [g]780
Availability
🔍
VariantSSC038SS
MaterialSS 316
Clamp range [mm]53-56
Bolt4 x M10
Mat. boltSS 304
Hosetail [mm]38
Work pressure - BAR [20°C]100
Coupling size [mm]38 x 8
Height [mm]90
Weight [g]1100
Availability
🔍
VariantSSC050SS
MaterialSS 316
Clamp range [mm]67-69
Bolt4 x M10
Mat. boltSS 304
Hosetail [mm]50
Work pressure - BAR [20°C]100
Coupling size [mm]50 x 9
Height [mm]100
Weight [g]1290
Availability
🔍
