TW SAFETY CLAMP EN 14420-3 - ALUMINUM

SAFETY CLAMP ALUMINIUM EN 14420-3 INPART24
MATERIAL: ALUMINUM | NORM: EN 14420-3

Product params

Material

aluminum

Norm

EN 14420-3

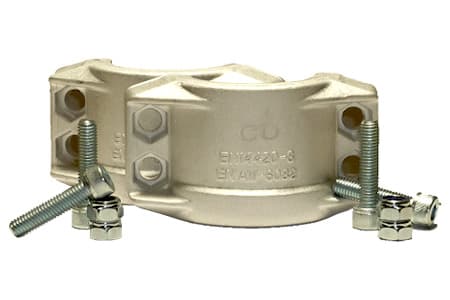

TW safety clamp made of aluminum, compatible with TW hosetails (smooth tail and serrated tail with collar).ย

This safety clamp is mounted with 4, 6 or 8 bolts depending on clamp size.ย

Material: aluminum

Norm: EN 14420-3

Size chart

id

Variant

Material

Clamp range [mm]

Bolt

Mat. bolt

Hose size [mm]

Variant
Material
Clamp range [mm]
Bolt
Mat. bolt
Hose size [mm]
Availability
VariantTWSC022AL
MaterialAluminum
Clamp range [mm]22-24
BoltM6 x 20
Mat. boltGalvanized steel
Hose size [mm]13 x 5
Availability
๐Ÿ”
VariantTWSC030AL
MaterialAluminum
Clamp range [mm]30-33
BoltM6 x 20
Mat. boltGalvanized steel
Hose size [mm]19 x 6
Availability
๐Ÿ”
VariantTWSC034AL
MaterialAluminum
Clamp range [mm]34-36
BoltM6 x 20
Mat. boltGalvanized steel
Hose size [mm]25 x 5
Availability
๐Ÿ”
VariantTWSC036AL
MaterialAluminum
Clamp range [mm]36-39
BoltM6 x 20
Mat. boltGalvanized steel
Hose size [mm]25 x 6
Availability
๐Ÿ”
VariantTWSC041AL
MaterialAluminum
Clamp range [mm]41-43
BoltM6 x 20
Mat. boltGalvanized steel
Hose size [mm]32 x 5
Availability
๐Ÿ”
VariantTWSC043AL
MaterialAluminum
Clamp range [mm]43-46
BoltM6 x 20
Mat. boltGalvanized steel
Hose size [mm]32 x 6
Availability
๐Ÿ”
VariantTWSC047AL
MaterialAluminum
Clamp range [mm]47-50
BoltM6 x 20
Mat. boltGalvanized steel
Hose size [mm]32 x 8
Availability
๐Ÿ”
VariantTWSC0472AL
MaterialAluminum
Clamp range [mm]47-49
BoltM6 x 20
Mat. boltGalvanized steel
Hose size [mm]38 x 5
Availability
๐Ÿ”
VariantTWSC050AL
MaterialAluminum
Clamp range [mm]50-52
BoltM6 x 20
Mat. boltGalvanized steel
Hose size [mm]38 x 6,5
Availability
๐Ÿ”
VariantTWSC053AL
MaterialAluminum
Clamp range [mm]53-56
BoltM6 x 20
Mat. boltGalvanized steel
Hose size [mm]38 x 8
Availability
๐Ÿ”
VariantTWSC059AL
MaterialAluminum
Clamp range [mm]59-61
BoltM8 x 25
Mat. boltGalvanized steel
Hose size [mm]50 x 5
Availability
๐Ÿ”
VariantTWSC061AL
MaterialAluminum
Clamp range [mm]61-63
BoltM8 x 25
Mat. boltGalvanized steel
Hose size [mm]50 x 6
Availability
๐Ÿ”
VariantTWSC064AL
MaterialAluminum
Clamp range [mm]64-67
BoltM8 x 25
Mat. boltGalvanized steel
Hose size [mm]50 x 8
Availability
๐Ÿ”
VariantTWSC069AL
MaterialAluminum
Clamp range [mm]69-71
BoltM8 x 25
Mat. boltGalvanized steel
Hose size [mm]50 x 10
Availability
๐Ÿ”
VariantTWSC074AL
MaterialAluminum
Clamp range [mm]74-76
BoltM8 x 25
Mat. boltGalvanized steel
Hose size [mm]63 x 6
Availability
๐Ÿ”
VariantTWSC078AL
MaterialAluminum
Clamp range [mm]78-82
BoltM8 x 25
Mat. boltGalvanized steel
Hose size [mm]63 x 8
Availability
๐Ÿ”
VariantTWSC084AL
MaterialAluminum
Clamp range [mm]84-87
BoltM8 x 25
Mat. boltGalvanized steel
Hose size [mm]65 x 10
Availability
๐Ÿ”
VariantTWSC086AL
MaterialAluminum
Clamp range [mm]86-88
BoltM8 x 25
Mat. boltGalvanized steel
Hose size [mm]75 x 6
Availability
๐Ÿ”
VariantTWSC089AL
MaterialAluminum
Clamp range [mm]89-93
BoltM8 x 25
Mat. boltGalvanized steel
Hose size [mm]75 x 8
Availability
๐Ÿ”
VariantTWSC094AL
MaterialAluminum
Clamp range [mm]94-97
BoltM8 x 25
Mat. boltGalvanized steel
Hose size [mm]75 x 10
Availability
๐Ÿ”
VariantTWSC098AL
MaterialAluminum
Clamp range [mm]98-101
BoltM8 x 25
Mat. boltGalvanized steel
Hose size [mm]75 x 12
Availability
๐Ÿ”
VariantTWSC0942AL
MaterialAluminum
Clamp range [mm]94-97
BoltM8 x 25
Mat. boltGalvanized steel
Hose size [mm]80 x 8
Availability
๐Ÿ”
VariantTWSC112AL
MaterialAluminum
Clamp range [mm]112-114
BoltM10 x 40
Mat. boltGalvanized steel
Hose size [mm]100 x 6,5
Availability
๐Ÿ”
VariantTWSC114AL
MaterialAluminum
Clamp range [mm]114-119
BoltM10 x 40
Mat. boltGalvanized steel
Hose size [mm]100 x 8
Availability
๐Ÿ”
VariantTWSC118AL
MaterialAluminum
Clamp range [mm]118-122
BoltM10 x 40
Mat. boltGalvanized steel
Hose size [mm]100 x 10
Availability
๐Ÿ”
VariantTWSC122AL
MaterialAluminum
Clamp range [mm]122-126
BoltM10 x 40
Mat. boltGalvanized steel
Hose size [mm]100 x 12
Availability
๐Ÿ”
VariantTWSC143AL
MaterialAluminum
Clamp range [mm]143-148
BoltM10 x 40
Mat. boltGalvanized steel
Hose size [mm]125 x 10
Availability
๐Ÿ”
VariantTWSC168AL
MaterialAluminum
Clamp range [mm]168-174
BoltM12 x 50
Mat. boltGalvanized steel
Hose size [mm]150 x 10
Availability
๐Ÿ”
VariantTWSC174AL
MaterialAluminum
Clamp range [mm]174-180
BoltM12 x 50
Mat. boltGalvanized steel
Hose size [mm]150 x 13
Availability
๐Ÿ”
VariantTWSC222AL
MaterialAluminum
Clamp range [mm]222-229
BoltM12 x 60
Mat. boltGalvanized steel
Hose size [mm]200 x 12
Availability
๐Ÿ”
VariantTWSC274AL
MaterialAluminum
Clamp range [mm]274-278
BoltM12 x 60
Mat. boltGalvanized steel
Hose size [mm]250 x 13
Availability
๐Ÿ”

TW SAFETY CLAMP EN 14420-3 - ALUMINUM

from 21.54zล‚
vat excluded

stock
Availabledropdown
intereurope shipping

Shipping all over Europe

high quality

Top quality product

sku

SKU: 318
