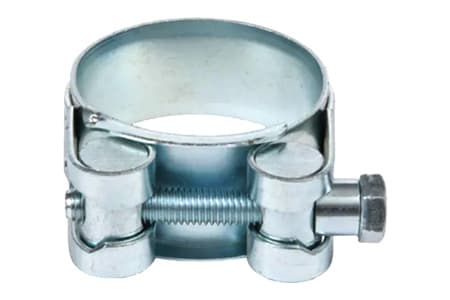

T-BOLT HOSE CLAMP GBS HEAVY W1
MATERIAL: GALVANIZED STEEL
Product params
Material
galvanized steel
One-piece screw clamp with a movable bridge, for heavy loads, with even pressure over the entire clamp. A movable bridge allows multiple adjustments of the clamp. Rolled edges.
Size chart
id
Variant
Material
Band width [mm]
Clamp range [mm]
Bolt
Variant
Material
Band width [mm]
Clamp range [mm]
Bolt
Availability
VariantU1PW1017
MaterialGalvanized steel
Band width [mm]18
Clamp range [mm]17-19
BoltM5
Availability
🔍
VariantU1PW1019
MaterialGalvanized steel
Band width [mm]18
Clamp range [mm]19-21
BoltM5
Availability
🔍
VariantU1PW1020
MaterialGalvanized steel
Band width [mm]18
Clamp range [mm]20-22
BoltM5
Availability
🔍
VariantU1PW1021
MaterialGalvanized steel
Band width [mm]18
Clamp range [mm]21-23
BoltM5
Availability
🔍
VariantU1PW1023
MaterialGalvanized steel
Band width [mm]20
Clamp range [mm]23-25
BoltM5
Availability
🔍
VariantU1PW1026
MaterialGalvanized steel
Band width [mm]20
Clamp range [mm]26-28
BoltM5
Availability
🔍
VariantU1PW1029
MaterialGalvanized steel
Band width [mm]20
Clamp range [mm]29-31
BoltM6
Availability
🔍
VariantU1PW1032
MaterialGalvanized steel
Band width [mm]20
Clamp range [mm]32-35
BoltM6
Availability
🔍
VariantU1PW1036
MaterialGalvanized steel
Band width [mm]20
Clamp range [mm]36-39
BoltM6
Availability
🔍
VariantU1PW1040
MaterialGalvanized steel
Band width [mm]20
Clamp range [mm]40-43
BoltM6
Availability
🔍
VariantU1PW1044
MaterialGalvanized steel
Band width [mm]22
Clamp range [mm]44-47
BoltM6
Availability
🔍
VariantU1PW1048
MaterialGalvanized steel
Band width [mm]22
Clamp range [mm]48-51
BoltM6
Availability
🔍
VariantU1PW1052
MaterialGalvanized steel
Band width [mm]22
Clamp range [mm]52-55
BoltM6
Availability
🔍
VariantU1PW1056
MaterialGalvanized steel
Band width [mm]22
Clamp range [mm]56-59
BoltM6
Availability
🔍
VariantU1PW1060
MaterialGalvanized steel
Band width [mm]22
Clamp range [mm]60-63
BoltM8
Availability
🔍
VariantU1PW1064
MaterialGalvanized steel
Band width [mm]22
Clamp range [mm]64-67
BoltM8
Availability
🔍
VariantU1PW1068
MaterialGalvanized steel
Band width [mm]24
Clamp range [mm]68-73
BoltM8
Availability
🔍
VariantU1PW1074
MaterialGalvanized steel
Band width [mm]24
Clamp range [mm]74-79
BoltM8
Availability
🔍
VariantU1PW1080
MaterialGalvanized steel
Band width [mm]24
Clamp range [mm]80-85
BoltM8
Availability
🔍
VariantU1PW1086
MaterialGalvanized steel
Band width [mm]24
Clamp range [mm]86-91
BoltM8
Availability
🔍
VariantU1PW1092
MaterialGalvanized steel
Band width [mm]24
Clamp range [mm]92-97
BoltM8
Availability
🔍
VariantU1PW1098
MaterialGalvanized steel
Band width [mm]24
Clamp range [mm]98-103
BoltM8
Availability
🔍
VariantU1PW1104
MaterialGalvanized steel
Band width [mm]24
Clamp range [mm]104-112
BoltM8
Availability
🔍
VariantU1PW1110
MaterialGalvanized steel
Band width [mm]24
Clamp range [mm]110-118
BoltM8
Availability
🔍
VariantU1PW1113
MaterialGalvanized steel
Band width [mm]24
Clamp range [mm]113-121
BoltM8
Availability
🔍
VariantU1PW1122
MaterialGalvanized steel
Band width [mm]24
Clamp range [mm]122-130
BoltM8
Availability
🔍
VariantU1PW1131
MaterialGalvanized steel
Band width [mm]26
Clamp range [mm]131-139
BoltM10
Availability
🔍
VariantU1PW1140
MaterialGalvanized steel
Band width [mm]26
Clamp range [mm]140-148
BoltM10
Availability
🔍
VariantU1PW1149
MaterialGalvanized steel
Band width [mm]26
Clamp range [mm]149-161
BoltM10
Availability
🔍
VariantU1PW1162
MaterialGalvanized steel
Band width [mm]26
Clamp range [mm]162-174
BoltM10
Availability
🔍
VariantU1PW1175
MaterialGalvanized steel
Band width [mm]26
Clamp range [mm]175-187
BoltM10
Availability
🔍
VariantU1PW1188
MaterialGalvanized steel
Band width [mm]26
Clamp range [mm]188-200
BoltM10
Availability
🔍
VariantU1PW1195
MaterialGalvanized steel
Band width [mm]26
Clamp range [mm]195-210
BoltM10
Availability
🔍
VariantU1PW1201
MaterialGalvanized steel
Band width [mm]26
Clamp range [mm]201-213
BoltM10
Availability
🔍
VariantU1PW1214
MaterialGalvanized steel
Band width [mm]26
Clamp range [mm]214-226
BoltM10
Availability
🔍
VariantU1PW1227
MaterialGalvanized steel
Band width [mm]26
Clamp range [mm]227-239
BoltM10
Availability
🔍
VariantU1PW1240
MaterialGalvanized steel
Band width [mm]26
Clamp range [mm]240-252
BoltM10
Availability
🔍
