T-BOLT HOSE CLAMP GBS HEAVY W4
MATERIAL: AISI 304
Product params
Material
SS

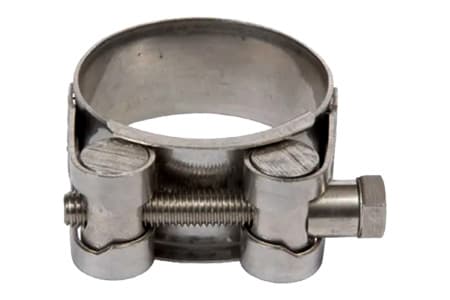

One-piece screw clamp with a movable bridge, for heavy loads, with even pressure over the entire clamp. A movable bridge allows multiple adjustments of the clamp. Rolled edges.
Size chart
id
Variant
Material
Band width [mm]
Clamp range [mm]
Bolt
Variant
Material
Band width [mm]
Clamp range [mm]
Bolt
Availability
VariantU1PW4017
MaterialSS 304
Band width [mm]18
Clamp range [mm]17-19
BoltM5
Availability
🔍
VariantU1PW4019
MaterialSS 304
Band width [mm]18
Clamp range [mm]19-21
BoltM5
Availability
🔍
VariantU1PW4020
MaterialSS 304
Band width [mm]18
Clamp range [mm]20-22
BoltM5
Availability
🔍
VariantU1PW4021
MaterialSS 304
Band width [mm]18
Clamp range [mm]21-23
BoltM5
Availability
🔍
VariantU1PW4023
MaterialSS 304
Band width [mm]20
Clamp range [mm]23-25
BoltM5
Availability
🔍
VariantU1PW4026
MaterialSS 304
Band width [mm]20
Clamp range [mm]26-28
BoltM5
Availability
🔍
VariantU1PW4029
MaterialSS 304
Band width [mm]20
Clamp range [mm]29-31
BoltM6
Availability
🔍
VariantU1PW4032
MaterialSS 304
Band width [mm]20
Clamp range [mm]32-35
BoltM6
Availability
🔍
VariantU1PW4036
MaterialSS 304
Band width [mm]20
Clamp range [mm]36-39
BoltM6
Availability
🔍
VariantU1PW4040
MaterialSS 304
Band width [mm]20
Clamp range [mm]40-43
BoltM6
Availability
🔍
VariantU1PW4044
MaterialSS 304
Band width [mm]22
Clamp range [mm]44-47
BoltM6
Availability
🔍
VariantU1PW1048
MaterialSS 304
Band width [mm]22
Clamp range [mm]48-51
BoltM6
Availability
🔍
VariantU1PW4052
MaterialSS 304
Band width [mm]22
Clamp range [mm]52-55
BoltM6
Availability
🔍
VariantU1PW4056
MaterialSS 304
Band width [mm]22
Clamp range [mm]56-59
BoltM6
Availability
🔍
VariantU1PW4060
MaterialSS 304
Band width [mm]22
Clamp range [mm]60-63
BoltM8
Availability
🔍
VariantU1PW4064
MaterialSS 304
Band width [mm]22
Clamp range [mm]64-67
BoltM8
Availability
🔍
VariantU1PW4068
MaterialSS 304
Band width [mm]24
Clamp range [mm]68-73
BoltM8
Availability
🔍
VariantU1PW4074
MaterialSS 304
Band width [mm]24
Clamp range [mm]74-79
BoltM8
Availability
🔍
VariantU1PW4080
MaterialSS 304
Band width [mm]24
Clamp range [mm]80-85
BoltM8
Availability
🔍
VariantU1PW4086
MaterialSS 304
Band width [mm]24
Clamp range [mm]86-91
BoltM8
Availability
🔍
VariantU1PW4092
MaterialSS 304
Band width [mm]24
Clamp range [mm]92-97
BoltM8
Availability
🔍
VariantU1PW4098
MaterialSS 304
Band width [mm]24
Clamp range [mm]98-103
BoltM8
Availability
🔍
VariantU1PW4104
MaterialSS 304
Band width [mm]24
Clamp range [mm]104-112
BoltM8
Availability
🔍
VariantU1PW4113
MaterialSS 304
Band width [mm]24
Clamp range [mm]113-121
BoltM8
Availability
🔍
VariantU1PW4122
MaterialSS 304
Band width [mm]24
Clamp range [mm]122-130
BoltM8
Availability
🔍
VariantU1PW4131
MaterialSS 304
Band width [mm]26
Clamp range [mm]131-139
BoltM10
Availability
🔍
VariantU1PW4140
MaterialSS 304
Band width [mm]26
Clamp range [mm]140-148
BoltM10
Availability
🔍
VariantU1PW4149
MaterialSS 304
Band width [mm]26
Clamp range [mm]149-161
BoltM10
Availability
🔍
VariantU1PW4162
MaterialSS 304
Band width [mm]26
Clamp range [mm]162-174
BoltM10
Availability
🔍
VariantU1PW4175
MaterialSS 304
Band width [mm]26
Clamp range [mm]175-187
BoltM10
Availability
🔍
VariantU1PW4188
MaterialSS 304
Band width [mm]26
Clamp range [mm]188-200
BoltM10
Availability
🔍
VariantU1PW4195
MaterialSS 304
Band width [mm]26
Clamp range [mm]195-210
BoltM10
Availability
🔍
VariantU1PW4201
MaterialSS 304
Band width [mm]26
Clamp range [mm]201-213
BoltM10
Availability
🔍
VariantU1PW4214
MaterialSS 304
Band width [mm]26
Clamp range [mm]214-226
BoltM10
Availability
🔍
VariantU1PW4227
MaterialSS 304
Band width [mm]26
Clamp range [mm]227-239
BoltM10
Availability
🔍
VariantU1PW4240
MaterialSS 304
Band width [mm]26
Clamp range [mm]240-252
BoltM10
Availability
🔍
