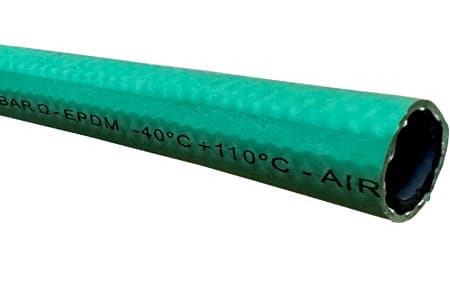

CASTOR 20® OHM EPDM GREEN HOSE

MULTI PURPOSE CASTOR 20 OHM EPDM GREEN RUBBER HOSE FOR HOT WATER AIR PRESSURE GLYCOL INPART24
Discharge hose | Reinforcement: Two textile reinforcement | Inner wall: EPDM | Outer wall: EPDM | Working pressure: 20 BAR | Temperature range: -40°C to +110°C

Product params

Working Pressure [bar]

20

Burst Pressure [bar]

60

Inner Wall

EPDM

Conductivity

Yes

The Multi-Purpose green rubber hose for hot water, cooling or compressed air. Often substances in plastic processing, industrial installations and workshops. Torsion resistant, retains full flow meter even in very narrow bends and on short switches. Highly drainable and solid product, outer layer resistant to abrasions. The hose can be used to transport industrial water, water, glycol, light water chemicals and compressed air.

The hose is conductive, i.e. R<10⁶ Ω through the wall

Inner wall: EPDM

Outer wall: EPDM

Reinforcement: Two textile reinforcement

Working pressure: 20 BAR

Temperature range: -40°C to +110°C

Norms: UNI ISO 1307/97

Size chart

Variant

Inner Diameter [mm]

Outer Diameter [mm]

Work Pressure - BAR [20°C]

Burst Pressure - BAR [20°C]

Weight gr/mtr

Coil [mtr]

Trade unit

Variant

Inner Diameter [mm]

Outer Diameter [mm]

Work Pressure - BAR [20°C]

Burst Pressure - BAR [20°C]

Weight gr/mtr

Coil [mtr]

Trade unit

Variant

3392

Inner Diameter [mm]

10

Outer Diameter [mm]

17

Work Pressure - BAR [20°C]

20

Burst Pressure - BAR [20°C]

60

Weight gr/mtr

210

Coil [mtr]

40

Trade unit

Meter

Variant

3393

Inner Diameter [mm]

10

Outer Diameter [mm]

17

Work Pressure - BAR [20°C]

20

Burst Pressure - BAR [20°C]

60

Weight gr/mtr

210

Coil [mtr]

40

Trade unit

Coil 40mtr

Variant

3394

Inner Diameter [mm]

13

Outer Diameter [mm]

20

Work Pressure - BAR [20°C]

20

Burst Pressure - BAR [20°C]

60

Weight gr/mtr

290

Coil [mtr]

40

Trade unit

Meter

Variant

3395

Inner Diameter [mm]

13

Outer Diameter [mm]

20

Work Pressure - BAR [20°C]

20

Burst Pressure - BAR [20°C]

60

Weight gr/mtr

290

Coil [mtr]

40

Trade unit

Coil 40mtr

Variant

3396

Inner Diameter [mm]

15

Outer Diameter [mm]

22

Work Pressure - BAR [20°C]

20

Burst Pressure - BAR [20°C]

60

Weight gr/mtr

320

Coil [mtr]

40

Trade unit

Meter

Variant

3397

Inner Diameter [mm]

15

Outer Diameter [mm]

22

Work Pressure - BAR [20°C]

20

Burst Pressure - BAR [20°C]

60

Weight gr/mtr

320

Coil [mtr]

40

Trade unit

Coil 40mtr

Variant

3398

Inner Diameter [mm]

19

Outer Diameter [mm]

27

Work Pressure - BAR [20°C]

20

Burst Pressure - BAR [20°C]

60

Weight gr/mtr

480

Coil [mtr]

40

Trade unit

Meter

Variant

3399

Inner Diameter [mm]

19

Outer Diameter [mm]

27

Work Pressure - BAR [20°C]

20

Burst Pressure - BAR [20°C]

60

Weight gr/mtr

480

Coil [mtr]

40

Trade unit

Coil 40mtr

Variant

3400

Inner Diameter [mm]

25

Outer Diameter [mm]

34

Work Pressure - BAR [20°C]

20

Burst Pressure - BAR [20°C]

60

Weight gr/mtr

790

Coil [mtr]

40

Trade unit

Meter

Variant

3401

Inner Diameter [mm]

25

Outer Diameter [mm]

34

Work Pressure - BAR [20°C]

20

Burst Pressure - BAR [20°C]

60

Weight gr/mtr

790

Coil [mtr]

40

Trade unit

Coil 40mtr

Variant

3402

Inner Diameter [mm]

32

Outer Diameter [mm]

44

Work Pressure - BAR [20°C]

20

Burst Pressure - BAR [20°C]

60

Weight gr/mtr

1420

Coil [mtr]

40

Trade unit

Meter

Variant

3403

Inner Diameter [mm]

32

Outer Diameter [mm]

44

Work Pressure - BAR [20°C]

20

Burst Pressure - BAR [20°C]

60

Weight gr/mtr

1420

Coil [mtr]

40

Trade unit

Coil 40mtr

Variant

3404

Inner Diameter [mm]

38

Outer Diameter [mm]

51

Work Pressure - BAR [20°C]

20

Burst Pressure - BAR [20°C]

60

Weight gr/mtr

1580

Coil [mtr]

40

Trade unit

Meter

Variant

3405

Inner Diameter [mm]

38

Outer Diameter [mm]

51

Work Pressure - BAR [20°C]

20

Burst Pressure - BAR [20°C]

60

Weight gr/mtr

1580

Coil [mtr]

40

Trade unit

Coil 40mtr

Variant

3406

Inner Diameter [mm]

50

Outer Diameter [mm]

66

Work Pressure - BAR [20°C]

20

Burst Pressure - BAR [20°C]

60

Weight gr/mtr

2290

Coil [mtr]

40

Trade unit

Meter

Variant

3407

Inner Diameter [mm]

50

Outer Diameter [mm]

66

Work Pressure - BAR [20°C]

20

Burst Pressure - BAR [20°C]

60

Weight gr/mtr

2290

Coil [mtr]

40

Trade unit

Coil 40mtr

CASTOR 20® OHM EPDM GREEN HOSE

from 16.30zł
vat excluded
