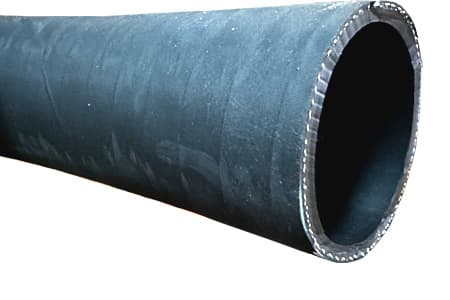

STRATOS® OHM/T D HOSE

RUBBER CEMENT SILO DISCHARGE HOSE STRATOS D INPART24
Discharge hose | Reinforcement: two textile reinforcements | Inner Wall: NR | Outer Wall: NR | Working pressure: 6 BAR | Temperature Range: -40 to +70 °C

Product params

Working Pressure [bar]

6

Burst Pressure [bar]

18

Conductivity

Yes

Inner Wall

NR

Rubber cement silo hose suitable for delivery of highly-abrasive materials such as sand, cement, grain, or feed. The hose has an abrasion resistance coefficient following DIN ISO 4649 of <55 mm3, ensuring long and safe operation. It is compatible with all popular connectors, such as concrete connectors, plastering connectors, and Tankwagon connectors.

Inner Wall: NR

Outer Wall: NR

Reinforcement: Two textile reinforcements

Working pressure: 6 BAR

Conductivity: R<10⁶ Ω

Temperature Range: -40°C to +70°C

Norms: Abrasion resistance coefficient DIN ISO 4649 <55 mm3

Size chart

Variant

Inner Diameter [mm]

Outer Diameter [mm]

Work Pressure - BAR [20°C]

Burst Pressure - BAR [20°C]

Coil [mtr]

Weight gr/mtr

Trade unit

Variant

Inner Diameter [mm]

Outer Diameter [mm]

Work Pressure - BAR [20°C]

Burst Pressure - BAR [20°C]

Coil [mtr]

Weight gr/mtr

Trade unit

Variant

3538

Inner Diameter [mm]

75

Outer Diameter [mm]

93

Work Pressure - BAR [20°C]

6

Burst Pressure - BAR [20°C]

18

Coil [mtr]

30

Weight gr/mtr

2 800

Trade unit

Meters

Variant

3539

Inner Diameter [mm]

75

Outer Diameter [mm]

93

Work Pressure - BAR [20°C]

6

Burst Pressure - BAR [20°C]

18

Coil [mtr]

30

Weight gr/mtr

2 800

Trade unit

Coil 30mtr

Variant

3540

Inner Diameter [mm]

80

Outer Diameter [mm]

100

Work Pressure - BAR [20°C]

6

Burst Pressure - BAR [20°C]

18

Coil [mtr]

30

Weight gr/mtr

3 000

Trade unit

Meters

Variant

3541

Inner Diameter [mm]

80

Outer Diameter [mm]

100

Work Pressure - BAR [20°C]

6

Burst Pressure - BAR [20°C]

18

Coil [mtr]

30

Weight gr/mtr

3 000

Trade unit

Coil 30mtr

Variant

3542

Inner Diameter [mm]

90

Outer Diameter [mm]

110

Work Pressure - BAR [20°C]

6

Burst Pressure - BAR [20°C]

18

Coil [mtr]

20

Weight gr/mtr

3 680

Trade unit

Meters

Variant

3543

Inner Diameter [mm]

90

Outer Diameter [mm]

110

Work Pressure - BAR [20°C]

6

Burst Pressure - BAR [20°C]

18

Coil [mtr]

20

Weight gr/mtr

3 680

Trade unit

Coil 20mtr

Variant

3544

Inner Diameter [mm]

100

Outer Diameter [mm]

120

Work Pressure - BAR [20°C]

6

Burst Pressure - BAR [20°C]

18

Coil [mtr]

20

Weight gr/mtr

4 050

Trade unit

Meters

Variant

3545

Inner Diameter [mm]

100

Outer Diameter [mm]

120

Work Pressure - BAR [20°C]

6

Burst Pressure - BAR [20°C]

18

Coil [mtr]

20

Weight gr/mtr

4 050

Trade unit

Coil 20mtr

Variant

3546

Inner Diameter [mm]

100

Outer Diameter [mm]

120

Work Pressure - BAR [20°C]

6

Burst Pressure - BAR [20°C]

18

Coil [mtr]

20

Weight gr/mtr

4 050

Trade unit

Coil 40mtr

Variant

3547

Inner Diameter [mm]

110

Outer Diameter [mm]

130

Work Pressure - BAR [20°C]

6

Burst Pressure - BAR [20°C]

18

Coil [mtr]

40

Weight gr/mtr

5 000

Trade unit

Meters

Variant

3549

Inner Diameter [mm]

110

Outer Diameter [mm]

130

Work Pressure - BAR [20°C]

6

Burst Pressure - BAR [20°C]

18

Coil [mtr]

40

Weight gr/mtr

5 000

Trade unit

Coil 40mtr

STRATOS® OHM/T D HOSE

from 213.08zł
vat excluded

stock
Available
intereurope shipping

Shipping all over the country

high quality

Top quality product

sku

SKU: 338
